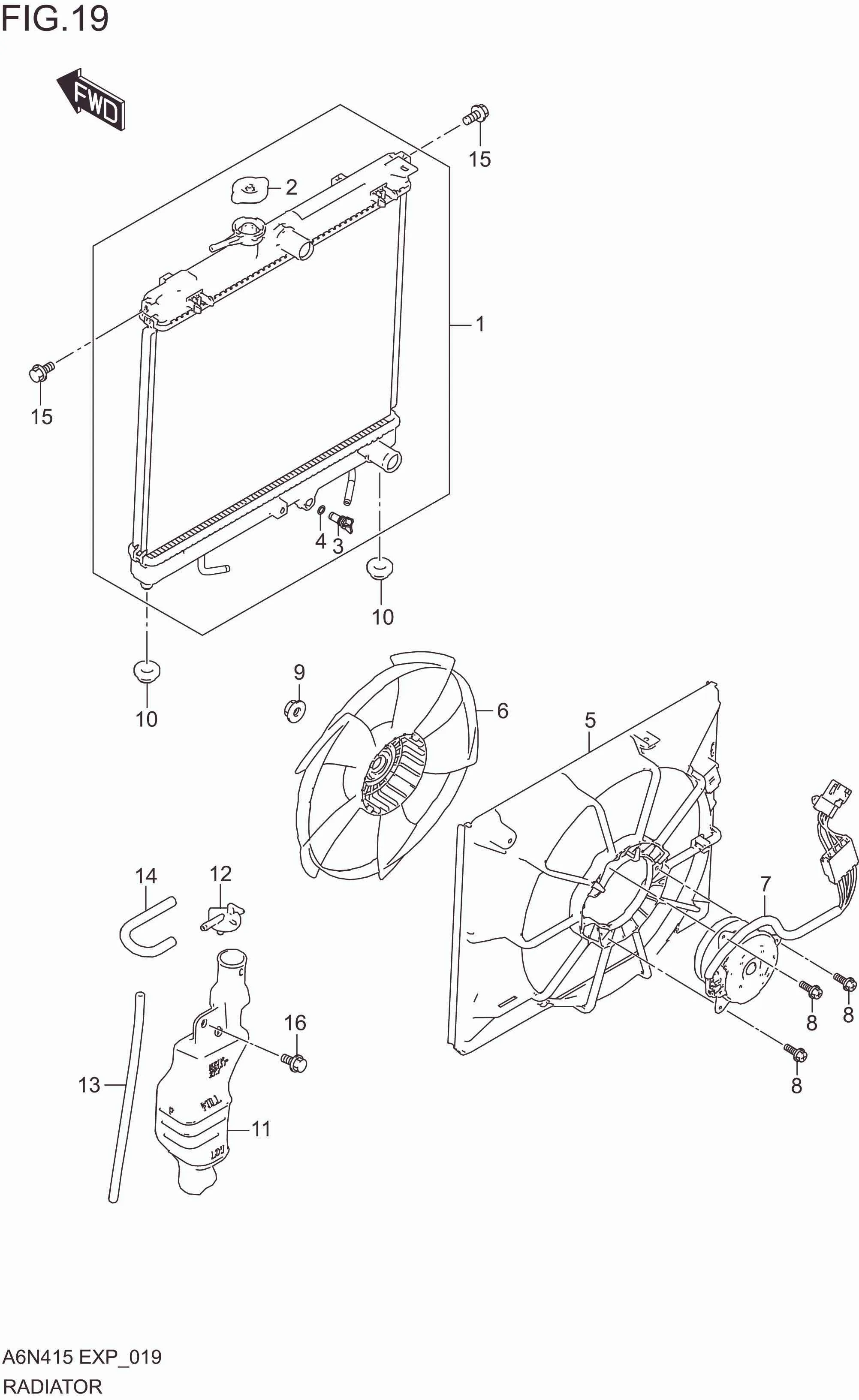

FIG. 019 RADIATOR

FIG. 019 RADIATOR
No No. Part Description Qty Price Per Pcs Remarks
1-2 17700-78R10-000 RADITOR ASSY 1 Rp7.380.000
1-1 17700-78R00-000 RADITOR ASSY 1 Rp6.310.000
2 17920M77R00-000 .CAP 1 -
3 17751-77R00-000 .VALVE DRAIN 1 Rp116.000
4 17759-77R00-000 .O-RING 1 Rp1.196.500
5-1 17760-78R00-000 SHROUD FAN 1 Rp1.062.500
5-2 17760-78R10-000 SHROUD FAN 1 Rp1.120.000
6 17111-78R00-000 FAN,COOLING 1 Rp585.500
7 17120-78R01-000 MOTOR ASSY, FAN 1 Rp3.877.000
8 17129-77R00-000 BOLT, MOTOR 3 Rp78.000
9 17131-67H00-000 NUT,FAN 1 Rp31.000
10 17812-82000-000 BUSHING,RADIATOR SUPPORT 2 Rp27.000
11 17931-77R00-000 TANK, WATER RESERVE 1 Rp578.500
12 17932-76G00-000 CAP,WATER RESERVE TANK 1 Rp5.500
13 09352-70111-600 HOSE (7X11X600) 1 Rp82.500
14 17939M80T00-000 HOSE, RDTR TO RSVR TANK 1 Rp12.000
15 01550-0616A-000 BOLT (6X16) 2 Rp3.500
16 01550-0616A-000 BOLT (6X16) 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
