New Jimny 5 Doors

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 001 ENGINE GASKETSFIG. 002 CYLINDER HEAD COVERFIG. 003 CYLINDER HEADFIG. 004 CYLINDERFIG. 005 OIL PANFIG. 006 CRANKSHAFTFIG. 007 CAM SHAFT/VALVEFIG. 008 CAM CHAINFIG. 009 ENGINE MOUNTINGFIG. 010 INTAKE MANIFOLDFIG. 011 THROTTLE BODYFIG. 012 AIR CLEANERFIG. 013 EXHAUST MANIFOLDFIG. 014 MUFFLERFIG. 015 FUEL PUMPFIG. 016 DELIVERY PIPE/FUEL INJECTORFIG. 017 OIL PUMPFIG. 018 WATER PUMPFIG. 019 RADIATORFIG. 020 WATER HOSEFIG. 021 EMISSION CONTROLFIG. 022 LABEL

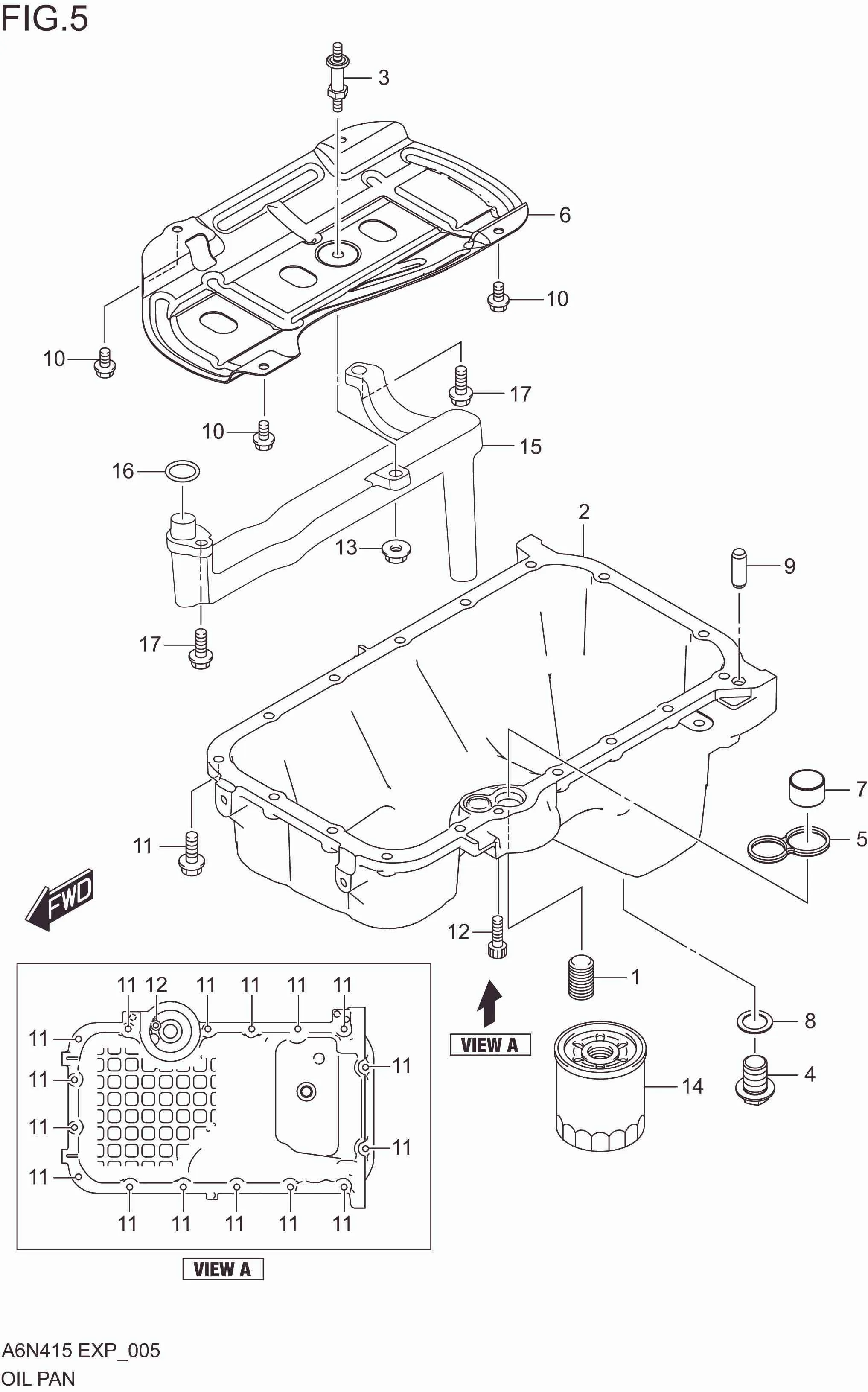

FIG. 005 OIL PAN

FIG. 005 OIL PAN
No No. Part Description Qty Price Per Pcs Remarks
1 11241-68K00-000 STAND,OIL FILTER 1 Rp15.000
2 11511M80T00-000 PAN,OIL 1 Rp904.000
3 11515-51K03-000 BOLT,OIL PAN BAFFLE STUD 1 Rp54.000
4 11518-63J20-000 PLUG,OIL DRAIN 1 Rp29.500
5 11518M68K00-000 O-RING,OIL PAN 1 Rp6.500
6 11541M73K00-000 PLATE,OIL PAN BAFFLE 1 Rp86.500
7 16114M69J00-000 PIN,OIL PAN DOWEL 1 Rp14.500
8-1 09168-14015-000 GASKET (14X20X1.5) 1 Rp7.500
8-2 09168-14015-000 GASKET (14X20X1.5) 1 Rp7.500
9 11519M67L00-000 PIN,OIL PAN DOWEL 1 Rp6.000
10 01550M0612A-000 BOLT (6X12) 3 Rp5.000
11 01550-0625C-000 BOLT (6X25) 16 Rp14.500
12 07130-0625A-000 BOLT (6X25) 1 Rp3.500
13 08316-1006A-000 NUT (6X12) 1 Rp2.000
14 16510-61J00-000 FILTER ASSY,OIL 1 Rp37.000
15 16520M80T00-000 STRAINER,OIL PUMP 1 Rp272.000
16 16119M68K00-000 O-RING (D:2.4,ID:16.8) 1 Rp7.000
17 07120-0620A-000 BOLT (6X20) 2 Rp22.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
