New Jimny 5 Doors

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 001 ENGINE GASKETSFIG. 002 CYLINDER HEAD COVERFIG. 003 CYLINDER HEADFIG. 004 CYLINDERFIG. 005 OIL PANFIG. 006 CRANKSHAFTFIG. 007 CAM SHAFT/VALVEFIG. 008 CAM CHAINFIG. 009 ENGINE MOUNTINGFIG. 010 INTAKE MANIFOLDFIG. 011 THROTTLE BODYFIG. 012 AIR CLEANERFIG. 013 EXHAUST MANIFOLDFIG. 014 MUFFLERFIG. 015 FUEL PUMPFIG. 016 DELIVERY PIPE/FUEL INJECTORFIG. 017 OIL PUMPFIG. 018 WATER PUMPFIG. 019 RADIATORFIG. 020 WATER HOSEFIG. 021 EMISSION CONTROLFIG. 022 LABEL

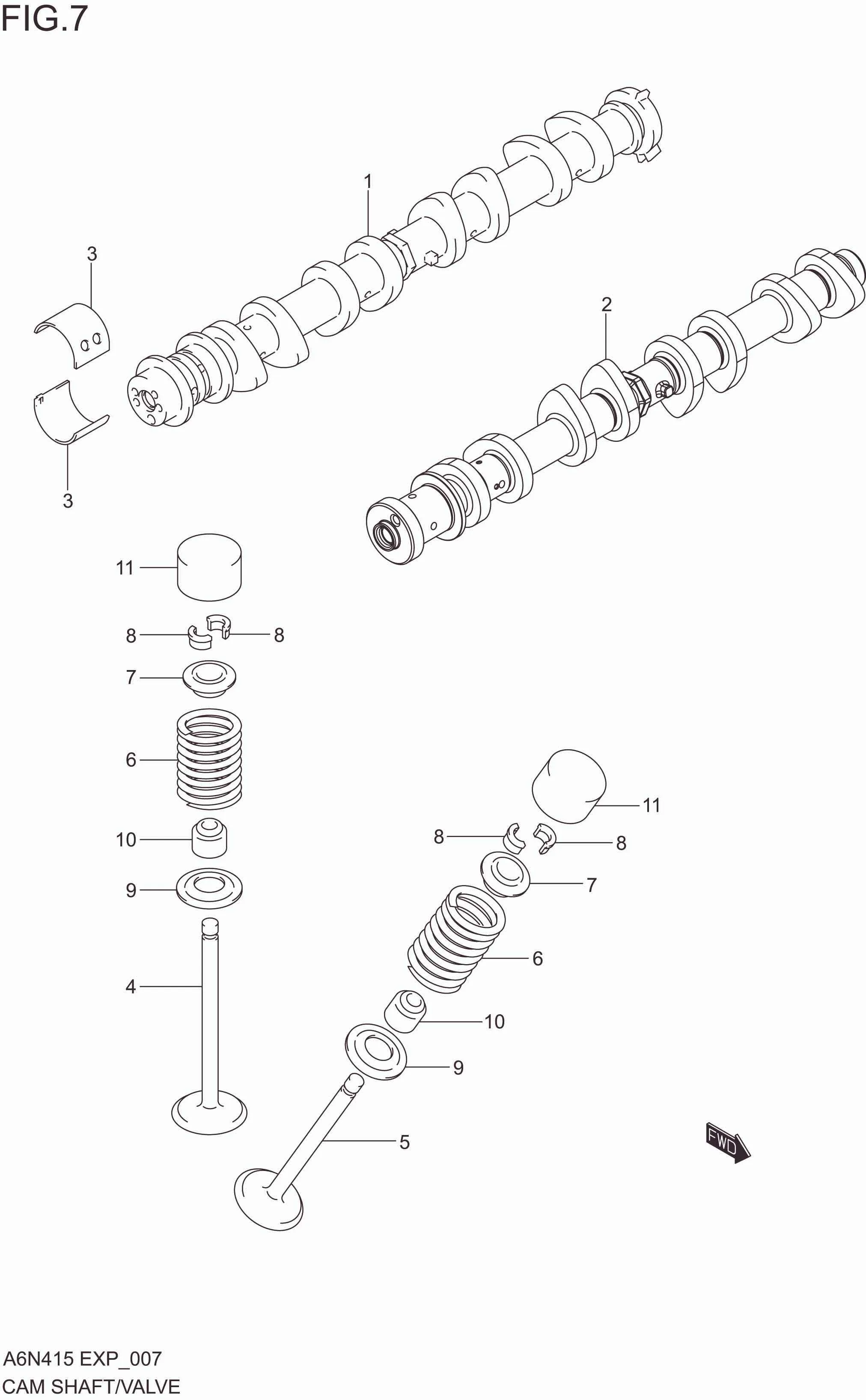

FIG. 007 CAM SHAFT/VALVE

FIG. 007 CAM SHAFT/VALVE
No No. Part Description Qty Price Per Pcs Remarks
1 12710M72R00-000 CAM SHAFT, INTAKE 1 Rp1.117.000
2 12721M72R00-000 CAM SHAFT, EXHAUST 1 Rp1.512.500
3 12737-69LA0-000 BEARING,CAMSHAFT (STD,T:1.5) 2 Rp289.000
4 12911M74L00-000 VALVE,INTK 8 Rp91.000
5 12915M74L00-000 VALVE,EXH 8 Rp83.000
6 12921M58R00-000 SPRING,VALVE 16 Rp26.500
7 12931M74L00-000 RETAINER,VALVE SPRING 16 Rp8.500
8 12932M74L00-000 COTTER,VALVE 32 Rp5.500
9 12933M51E00-000 SEAT,VALVE SPRING 16 Rp3.500
10-1 12934M74L00-000 SEAL,VALVE STEM 16 Rp13.000
10-2 12934-69L00-000 SEAL,VALVE STEM 16 Rp46.000
11-17 12891M68K00-350 TAPPET 0 Rp84.500
11-31 12891M68K00-378 TAPPET 0 Rp86.500
11-18 12891M68K00-352 TAPPET 0 Rp84.500
11-19 12891M68K00-354 TAPPET 0 Rp84.500
11-20 12891M68K00-356 TAPPET 0 Rp84.500
11-21 12891M68K00-358 TAPPET 0 Rp84.500
11-22 12891M68K00-360 TAPPET 0 Rp84.500
11-23 12891M68K00-362 TAPPET 0 Rp84.500
11-24 12891M68K00-364 TAPPET 0 Rp84.500
11-25 12891M68K00-366 TAPPET 0 Rp86.500
11-26 12891M68K00-368 TAPPET 0 Rp86.500
11-27 12891M68K00-370 TAPPET 0 Rp84.500
11-28 12891M68K00-372 TAPPET 0 Rp86.500
11-29 12891M68K00-374 TAPPET 0 Rp86.500
11-30 12891M68K00-376 TAPPET 0 Rp86.500
11-16 12891M68K00-348 TAPPET 0 Rp84.500
11-15 12891M68K00-346 TAPPET 0 Rp84.500
11-14 12891M68K00-344 TAPPET 0 Rp84.500
11-13 12891M68K00-342 TAPPET 0 Rp84.500
11-12 12891M68K00-340 TAPPET 0 Rp84.500
11-11 12891M68K00-338 TAPPET 0 Rp84.500
11-10 12891M68K00-336 TAPPET 0 Rp84.500
11-9 12891M68K00-334 TAPPET 0 Rp86.500
11-8 12891M68K00-332 TAPPET 0 Rp86.500
11-7 12891M68K00-330 TAPPET 0 Rp84.500
11-6 12891M68K00-328 TAPPET 0 Rp86.500
11-5 12891M68K00-326 TAPPET 0 Rp86.500
11-4 12891M68K00-324 TAPPET 0 Rp86.500
11-3 12891M68K00-322 TAPPET 0 Rp86.500
11-2 12891M68K00-320 TAPPET 0 Rp86.500
11-1 12891M68K00-318 TAPPET 0 Rp86.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
