New Jimny 5 Doors

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 001 ENGINE GASKETSFIG. 002 CYLINDER HEAD COVERFIG. 003 CYLINDER HEADFIG. 004 CYLINDERFIG. 005 OIL PANFIG. 006 CRANKSHAFTFIG. 007 CAM SHAFT/VALVEFIG. 008 CAM CHAINFIG. 009 ENGINE MOUNTINGFIG. 010 INTAKE MANIFOLDFIG. 011 THROTTLE BODYFIG. 012 AIR CLEANERFIG. 013 EXHAUST MANIFOLDFIG. 014 MUFFLERFIG. 015 FUEL PUMPFIG. 016 DELIVERY PIPE/FUEL INJECTORFIG. 017 OIL PUMPFIG. 018 WATER PUMPFIG. 019 RADIATORFIG. 020 WATER HOSEFIG. 021 EMISSION CONTROLFIG. 022 LABEL

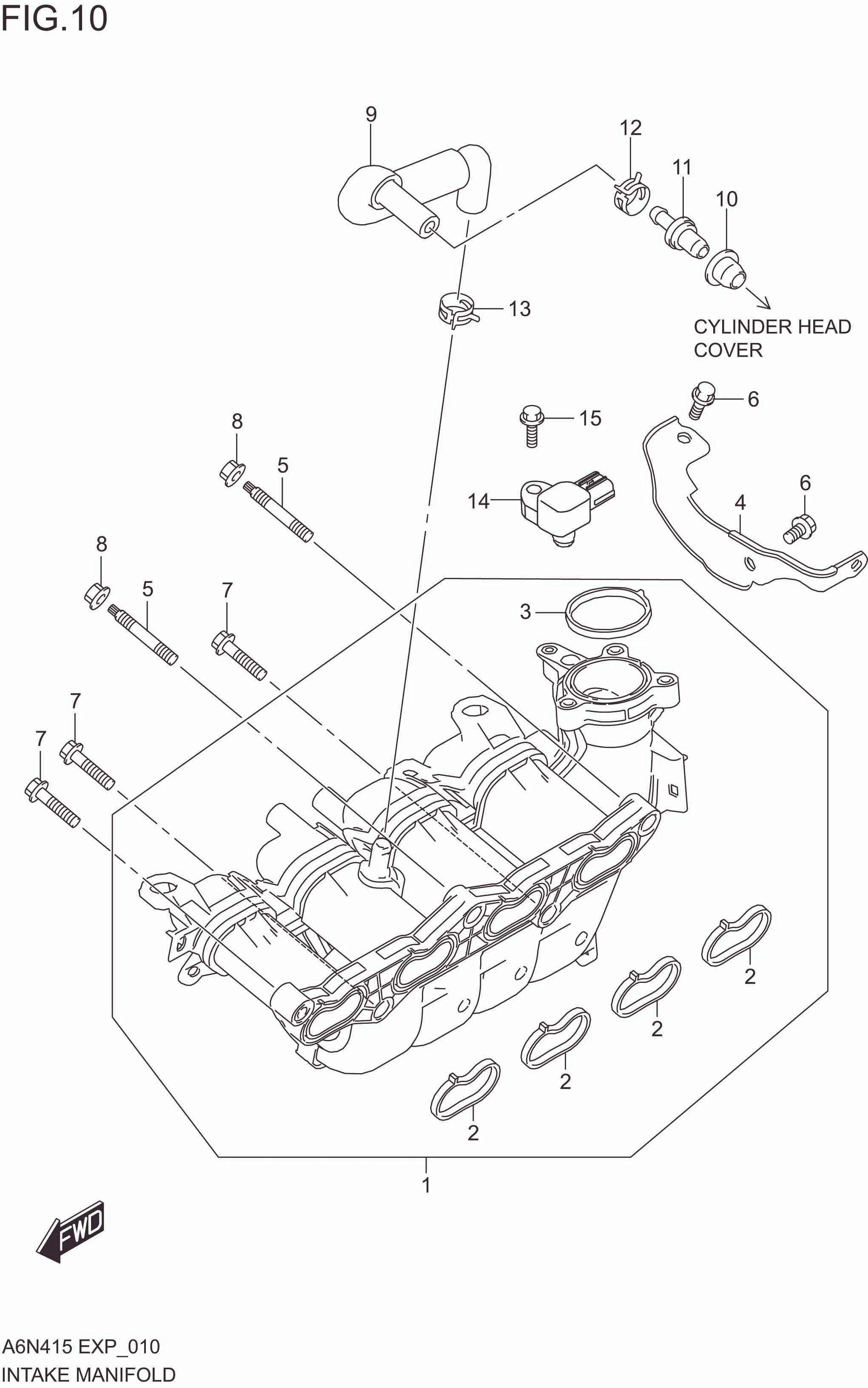

FIG. 010 INTAKE MANIFOLD

FIG. 010 INTAKE MANIFOLD
No No. Part Description Qty Price Per Pcs Remarks
1 13110M78R10-000 MANIFOLD, INTAKE 1 Rp951.500
2 13118M68P00-000 .GASKET, INTK MANF 4 Rp25.000
3 13421M54T10-000 .GASKET,THROTTLE BODY 1 Rp22.000
4 13161-78R00-000 STIFFENER,INTK MANF 1 Rp195.000
5 01421-0830A-000 BOLT,STUD 2 Rp16.500
6 01550-0616A-000 BOLT (6X16) 2 Rp3.500
7 01550-0835A-000 BOLT (8X35) 3 Rp3.500
8 08316-1008A-000 NUT 2 Rp3.500
9 11193M78R10-000 HOSE, PCV 1 Rp31.000
10 11198M79F00-000 SEAL,PCV VALVE 1 Rp16.500
11 18118-60M00-000 VALVE,PCV 1 Rp177.000
12 09401M13L04-000 CLIP (ID:13.8) 1 Rp6.000
13 09401M15418-000 CLIP (ID:15.5) 1 Rp6.000
14 18590M72R00-000 SENSOR ASSY, PRESSURE 1 Rp310.000
15 01550-0520A-000 BOLT 1 Rp19.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
