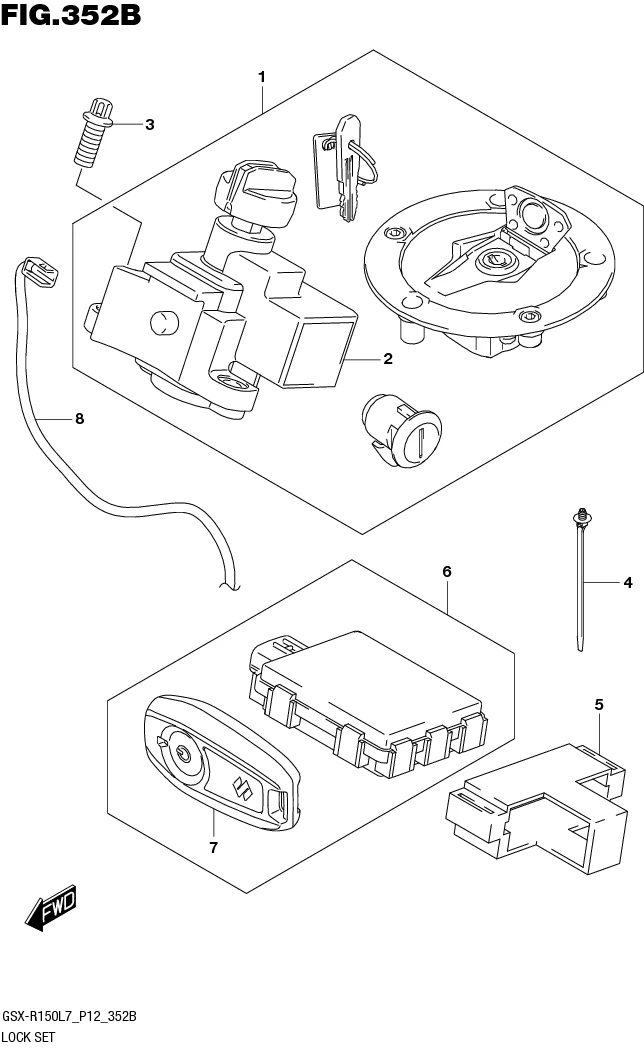

FIG.352B LOCK SET (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)

FIG.352B LOCK SET (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	37101-23812-000 SUB: 37101-23810-000	LOCK SET	1	Rp872.500
2	37100-23K12-000 SUB: 37100-23K10-000	_LOCK ASSY, STEERING	1	Rp487.000
3	37152-17K00-000 SUB: 09119-08100-000	BOLT (8X20)	2	Rp29.500
4	09407-17403-000	CLAMP (L:154)	1	Rp3.500
5	37173-23K01-000 SUB: 37173-23K00-000	HOLDER, KEYLESS CONTROLLER	1	Rp11.000
6	37180-23K34-000 SUB: 37180-23K00-000	CONTROLLER ASSY, KEYLESS START	1	Rp1.455.500
7	37172-23K02-000 SUB: 37172-23K00-000	_TRANSMITTER	1	Rp819.500
8	37181-23K00-000	INDICATOR, KEYLESS	1	Rp66.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
