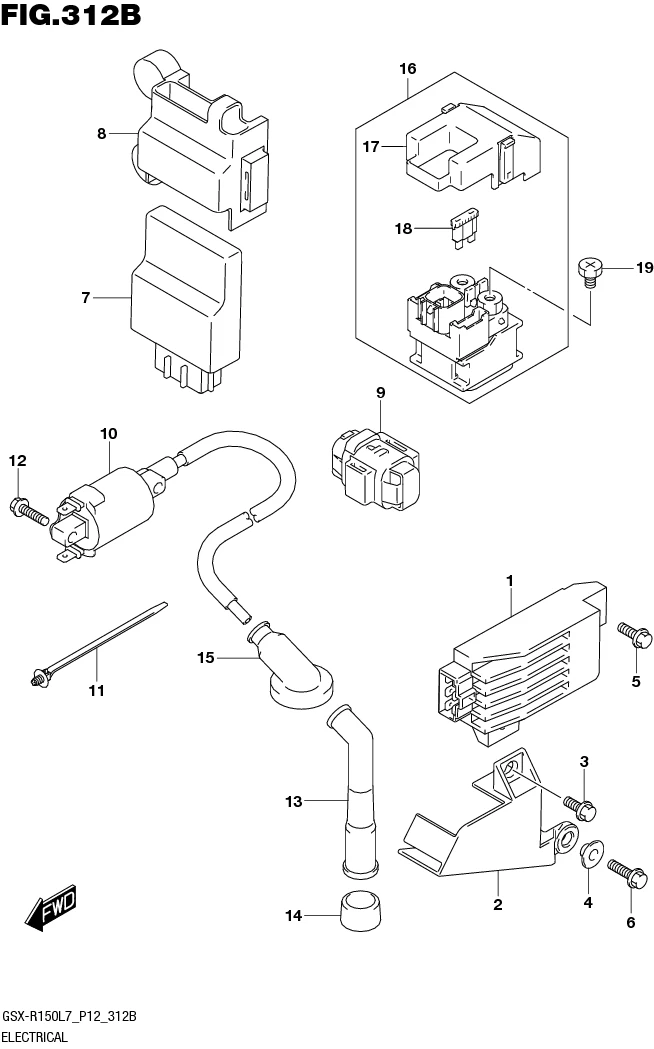

FIG.312B ELECTRICAL (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)

FIG.312B ELECTRICAL (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)
No No. Part Description Qty Price Per Pcs Remarks
1 32800-23K00-000 RECTIFIER ASSY 1 Rp691.500
2 32832-23K00-000 PLATE, RECTFIER 1 Rp9.000
3 09111-06054-000 BOLT (6X146) 1 Rp6.500
4 09180-06325-000
SUB: 09180B06325N000		 SPACER (62X84X69) 1 Rp5.500
5 01550-0616A-000 BOLT 1 Rp3.500
6 DISCONTINUE
SUB: 01550B0625AN000		 BOLT 1 -
7 32920-23K02-000
SUB: 32920-23K00-000		 CONTROL UNIT, FI 1 Rp722.000
8 32942-23K00-000 PROTECTOR, FI CONTROL UNIT 1 Rp12.500
9 33960B27G00N000 SENSOR ASSY, FUEL CUT 1 Rp127.000
10 33410-40J10-000 COIL ASSY, IGNITION 1 Rp78.000
11 09407-17403-000 SCREW 1 Rp3.500
12 01547-0620B-000
SUB: 01547B0620AN000		 BOLT 2 Rp6.500
13 33510-25G00-000
SUB: 33510B25G00N000		 CAP, SPARK PLUG 1 Rp43.000
14 33541-25G00-000
SUB: 33541B25G00N000		 SEAL, SPARK PLUG 1 Rp9.000
15 33542-25G10-000
SUB: 33542B25G10N000		 SEAL, HIGH TENSION CORD 1 Rp17.500
16 31800-33G21-000
SUB: 31800-33G20-000		 RELAY ASSY, STARTING MOTOR 1 Rp105.500
17 31861-47E00-000
SUB: 31861B47E00N000		 _COVER 1 Rp7.000
18 09481-20102-000 _FUSE (20A) 2 Rp7.000
19 09128-06013-000
SUB: 09128B06013N000		 SCREW (6X8) 2 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
