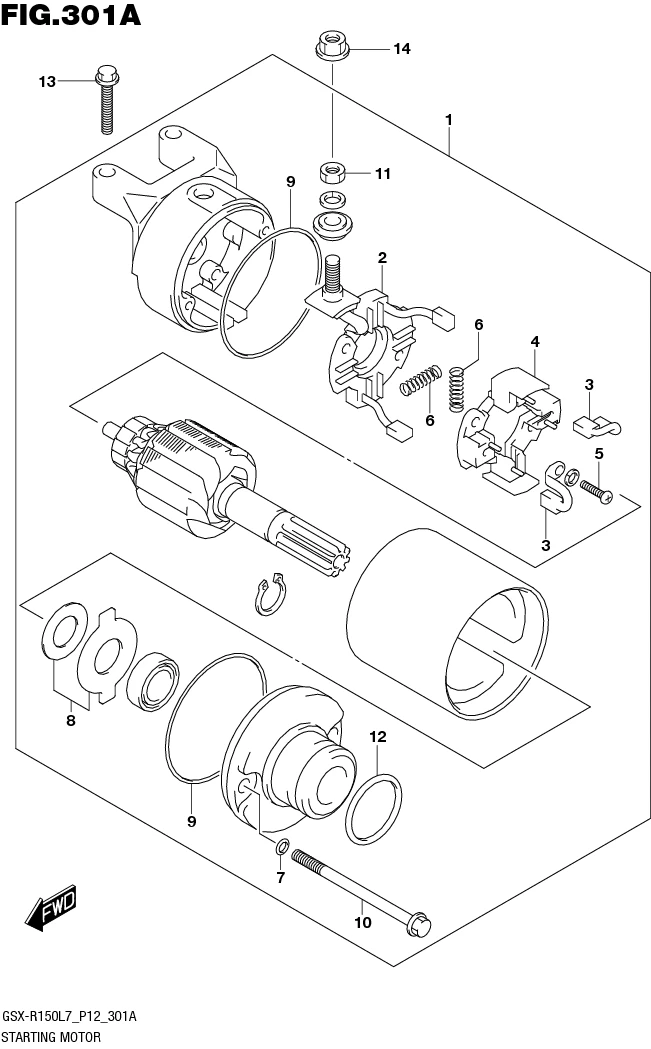

FIG.301A STARTING MOTOR

FIG.301A STARTING MOTOR

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	31100-12K02-000 SUB: 31100-12K00-000	MOTOR ASSY, STARTING	1	Rp386.000
2	31130-12K00-000	_BRUSH TERMINAL SET	1	Rp82.000
3	31132-12K00-000	_BRUSH HOLDER SET	2	Rp42.500
4	31133-12K00-000	_HOLDER,BRUSH	1	Rp36.500
5	31134-12K00-000	_SCREW	2	Rp9.000
6	31135-05530-000	_SPRING	4	Rp4.000
7	31156-12K00-000	_O RING	2	Rp9.000
8	31170-12K00-000	_WASHER SET	1	Rp26.500
9	31264-05530-000	_O RING	2	Rp15.500
10	31281-12K00-000	_BOLT	2	Rp35.500
11	08310-12K00-000	_NUT	1	Rp8.500
12	09280-12K00-000	_O RING	1	Rp22.500
13	01547-0625A-000	BOLT	2	Rp6.500
14	08361-3506A-000 SUB: 08361B3506AN000	NUT	1	Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
