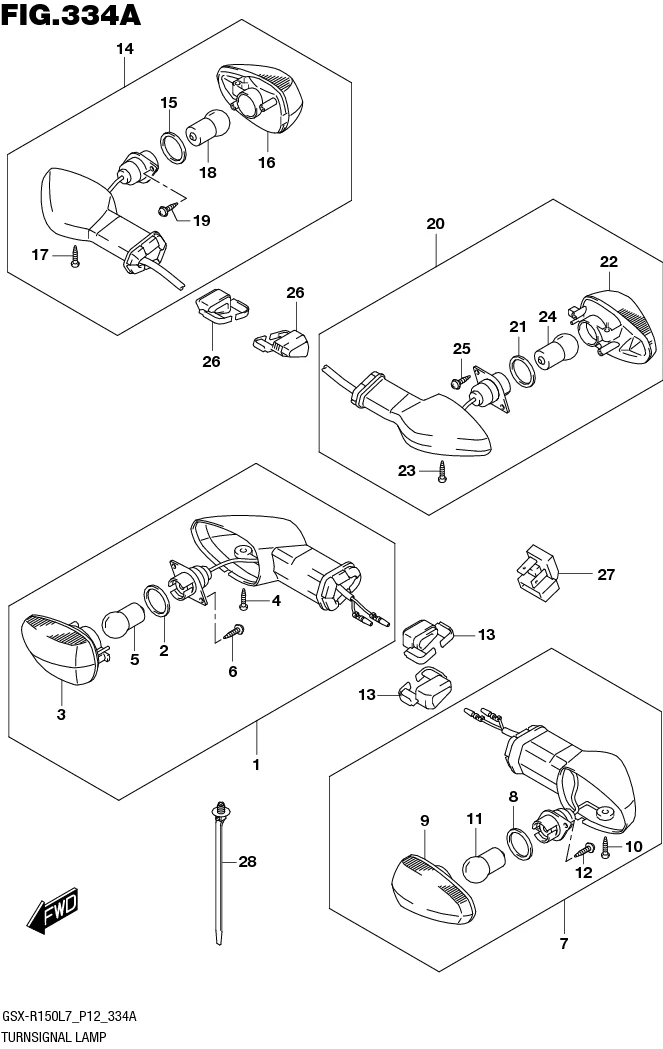

FIG.334A TURNSIGNAL LAMP

FIG.334A TURNSIGNAL LAMP
No No. Part Description Qty Price Per Pcs Remarks
1 35601-34J22-000
SUB: 35601-34J20-000		 LAMP ASSY, FRONT TURNSIGNAL RH 1 Rp131.500
2 35613-34J00-000 _GASKET 1 Rp29.500
3 35614-34J11-000
SUB: 35614-34J10-000		 _LAMP UNIT 1 Rp70.500
4 35623-34J10-000 _SCREW 1 Rp7.000
5 09471-12226-000 _BULB (12V,10W)AMBER 1 Rp47.000 AMBER
6 35623-34J40-000
SUB: 35623-34J20-000		 _SCREW 2 Rp9.500
7 35602-34J22-000
SUB: 35602-34J20-000		 LAMP ASSY, FRONT TURNSIGNAL LH 1 Rp131.500
8 35613-34J00-000 _GASKET 1 Rp29.500
9 35634-34J11-000
SUB: 35634-34J10-000		 _LAMP UNIT 1 Rp70.500
10 35623-34J10-000 _SCREW 1 Rp7.000
11 09471-12226-000 _BULB (12V,10W)AMBER 1 Rp47.000 AMBER
12 35623-34J40-000
SUB: 35623-34J20-000		 _SCREW 2 Rp9.500
13 35629-34J10-000 PLATE, TURNSIGNAL 2 Rp7.000
14 35603-34J22-000
SUB: 35603-34J20-000		 LAMP ASSY, REAR TURNSIGNAL RH 1 Rp131.500
15 35613-34J00-000 _GASKET 1 Rp29.500
16 35634-34J11-000
SUB: 35634-34J10-000		 _LAMP UNIT 1 Rp70.500
17 35623-34J10-000 _SCREW 1 Rp7.000
18 09471-12226-000 _BULB (12V,10W)AMBER 1 Rp47.000 AMBER
19 35623-34J40-000
SUB: 35623-34J20-000		 _SCREW 2 Rp9.500
20 35604-34J22-000
SUB: 35604-34J20-000		 LAMP ASSY, REAR TURNSIGNAL LH 1 Rp131.500
21 35613-34J00-000 _GASKET 1 Rp29.500
22 35614-34J11-000
SUB: 35614-34J10-000		 _LAMP UNIT 1 Rp70.500
23 35623-34J10-000 _SCREW 1 Rp7.000
24 09471-12226-000 _BULB (12V,10W)AMBER 1 Rp47.000 AMBER
25 35623-34J40-000
SUB: 35623-34J20-000		 _SCREW 2 Rp9.500
26 35629-34J10-000 PLATE, REAR TURNSIGNAL 2 Rp7.000
27 38610-23J40-000
SUB: 38610-23J10-000		 RELAY ASSY, TURNSIGNAL 1 Rp48.000
28 09407-17403-000 CLAMP 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
