GSXR-150

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.301A STARTING MOTORFIG.303A MAGNETOFIG.310A BATTERYFIG.312A ELECTRICAL (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)FIG.312B ELECTRICAL (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)FIG.330A SPEEDOMETERFIG.333A HEADLAMP (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)FIG.333B HEADLAMP (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)FIG.334A TURNSIGNAL LAMPFIG.339A REAR COMBINATION LAMPFIG.350A WIRING HARNESS (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)FIG.350B WIRING HARNESS (GSX-R150RFL7 P12/GSX-S150MFXL7 P12)FIG.352A LOCK SET (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)FIG.352B LOCK SET (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)FIG.355A HANDLE SWITCH (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)

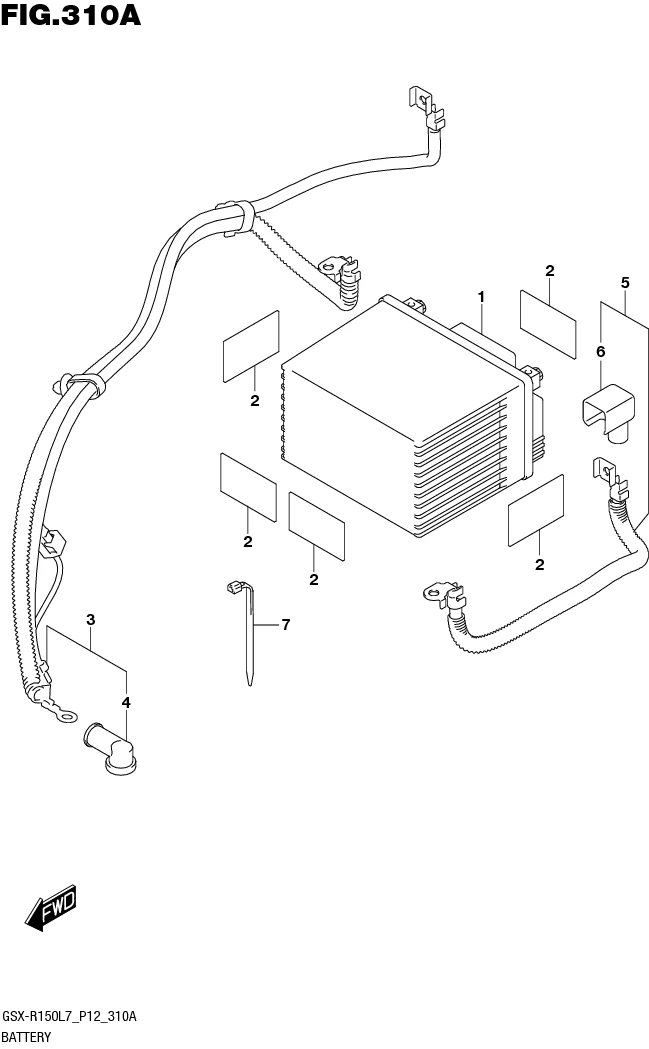

FIG.310A BATTERY

FIG.310A BATTERY
No No. Part Description Qty Price Per Pcs Remarks
1 33610-25G30-000
SUB: 33610B25G30N000		 BATTERY (GS GTZ6V) 1 Rp602.500
2 33652-38000-000
SUB: 33652-38000L000		 PROTECTOR 5 Rp3.000
3 33810-23K00-000 WIRE, STARTER MOTOR 1 Rp69.000
4 31861-48B10-000
SUB: 31861-48B10L000		 _CAP 1 Rp5.000
5 33820-23K00-000 WIRE, BATTERY PLUS 1 Rp27.000
6 33624-23K00-000 _CAP 1 Rp15.000
7 36990-25G00-000
SUB: 09407-14403L000		 CLAMP 1 Rp13.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
