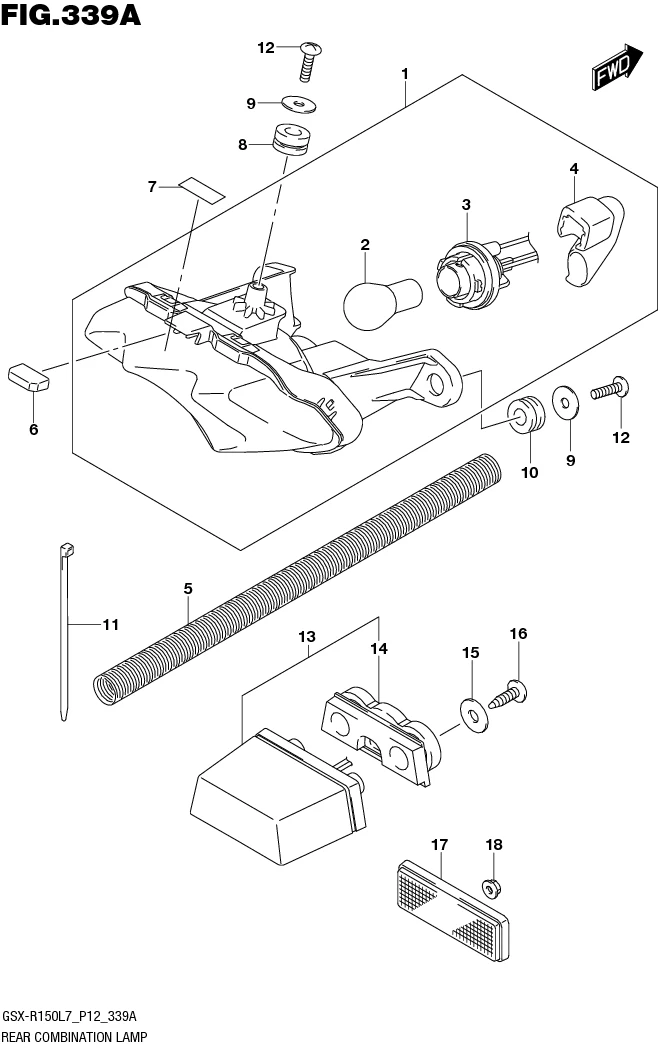

FIG.339A REAR COMBINATION LAMP

FIG.339A REAR COMBINATION LAMP
No No. Part Description Qty Price Per Pcs Remarks
1 35710-23K00-000 LAMP ASSY, REAR COMBINATION 1 Rp116.500
2 09471-12083-000 _BULB (12V21/5W) 1 Rp62.000
3 35718-23K00-000 _CORD ASSY 1 Rp70.500
4 35650-23K00-000 _TUBE BREATH 1 Rp12.000
5 35693-23K00-000 PROTECTOR TUBE 1 Rp7.500
6 35781-23K00-000 CUSHION, REAR COMB LAMP 1 Rp4.000
7 35781-23K10-000 CUSHION, REAR COMB LAMP 1 Rp4.000
8 35781-45H00-000
SUB: 35781B45H00N000		 CUSHION, REAR COMB LAMP 1 Rp3.000
9 09160-05050-000
SUB: 09160B05050N000		 WASHER (55X18X1) 3 Rp5.500
10 09320-09016-000 CUSHION 2 Rp4.000
11 36990-25G00-000
SUB: 09407-11401-000		 CLAMP (L:95) 1 Rp13.000
12 03541-0516A-000 SCREW 3 Rp3.500
13 35910-23K00-000 LAMP ASSY, LICENSE 1 Rp137.000
14 35913-23K00-000 _RUBBER 1 Rp50.500
15 09160-05050-000
SUB: 09160B05050N000		 WASHER (55X18X1) 2 Rp5.500
16 03541-0512A-000
SUB: 03541B0512AN000		 SCREW 2 Rp3.500
17 35970-28G00-000 REFLECTOR ASSY, REAR 1 Rp14.500
18 08316-1005A-000 NUT 1 Rp2.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
