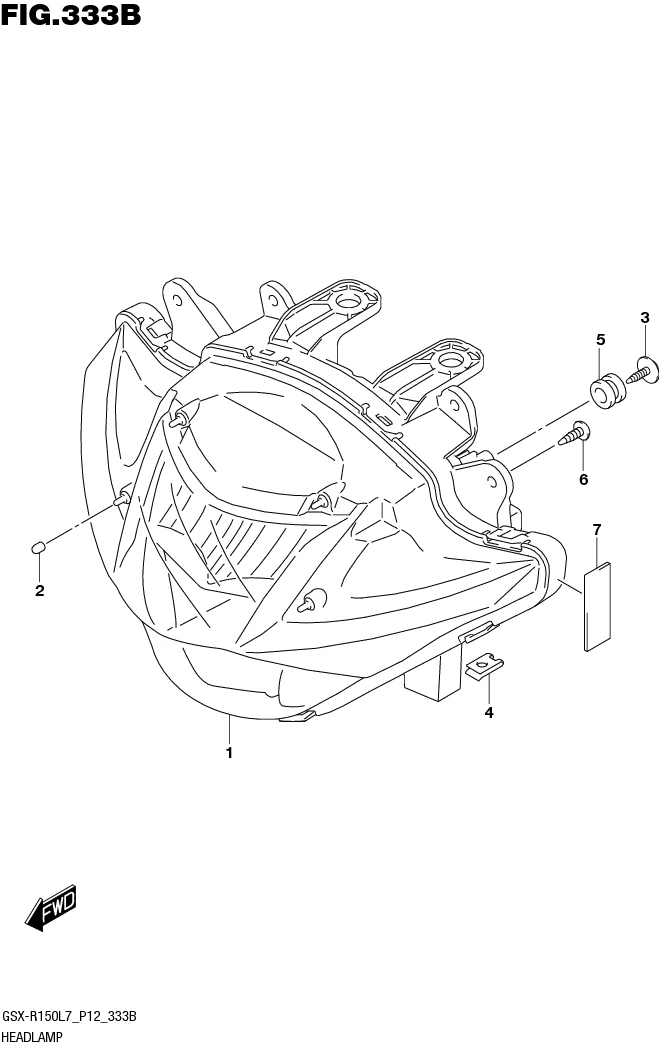

FIG.333B HEADLAMP (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)

FIG.333B HEADLAMP (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)
No No. Part Description Qty Price Per Pcs Remarks
1 35100-23K01-000
SUB: 35100-23K00-000		 LAMP ASSY, FRONT COMB 1 Rp901.500
2 44294-43H11-000
SUB: 44294-43H00-000		 CUSHION, HEDLAMP COVER 4 Rp29.000
3 09136-05062-000 SCREW (5X15) 3 Rp17.500
4 09148-05080-000 NUT 2 Rp8.000
5 09320-09016-000 CUSHION 3 Rp4.000
6 03541-0516A-000 SCREW 2 Rp3.500
7 94435-23K00-000 CUSHION, HEADLAMP 2 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
