GSXR-150

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.301A STARTING MOTORFIG.303A MAGNETOFIG.310A BATTERYFIG.312A ELECTRICAL (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)FIG.312B ELECTRICAL (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)FIG.330A SPEEDOMETERFIG.333A HEADLAMP (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)FIG.333B HEADLAMP (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)FIG.334A TURNSIGNAL LAMPFIG.339A REAR COMBINATION LAMPFIG.350A WIRING HARNESS (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)FIG.350B WIRING HARNESS (GSX-R150RFL7 P12/GSX-S150MFXL7 P12)FIG.352A LOCK SET (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)FIG.352B LOCK SET (GSX-R150RFL7 P12/GSX-R150RFXL7 P12)FIG.355A HANDLE SWITCH (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)

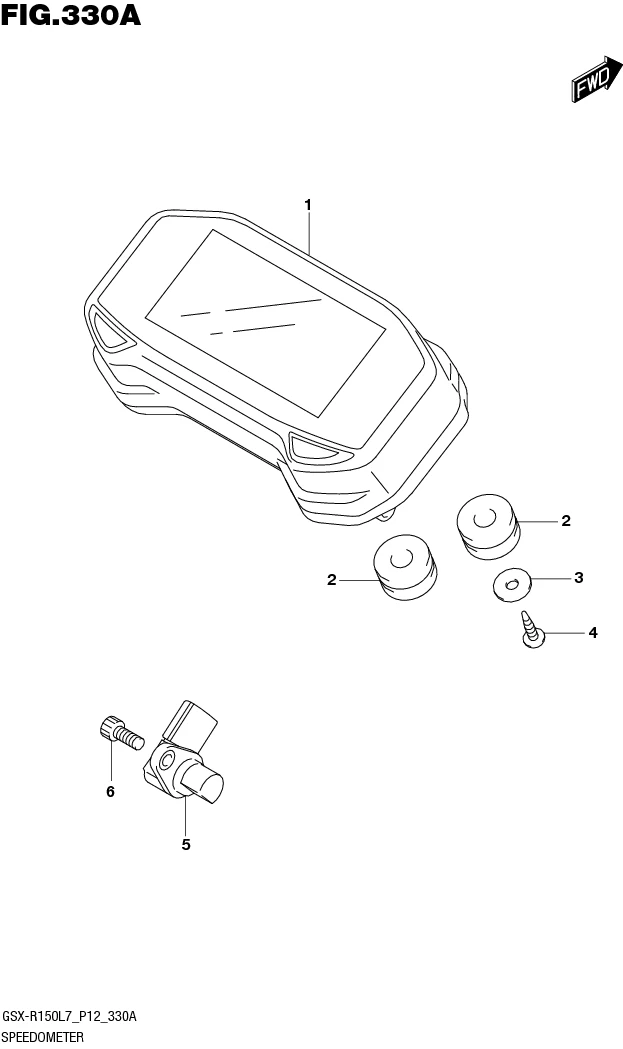

FIG.330A SPEEDOMETER

FIG.330A SPEEDOMETER
No No. Part Description Qty Price Per Pcs Remarks
1 34100-12K11-000
SUB: 34100-12K10-000		 SPEEDOMETER 1 Rp741.000
2 34189-30H30-000 CUSHION, SPEEDOMETER 3 Rp4.500
3 09160-04026-000
SUB: 09160B04026N000		 WASHER (45X16X12) 1 Rp10.500
4 03541-0416A-000 SCREW 1 Rp3.500
5 34990-12K00-000 SENSOR, SPEED 1 Rp109.500
6 07130-0512A-000
SUB: 07130B0512BN000		 BOLT 1 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
