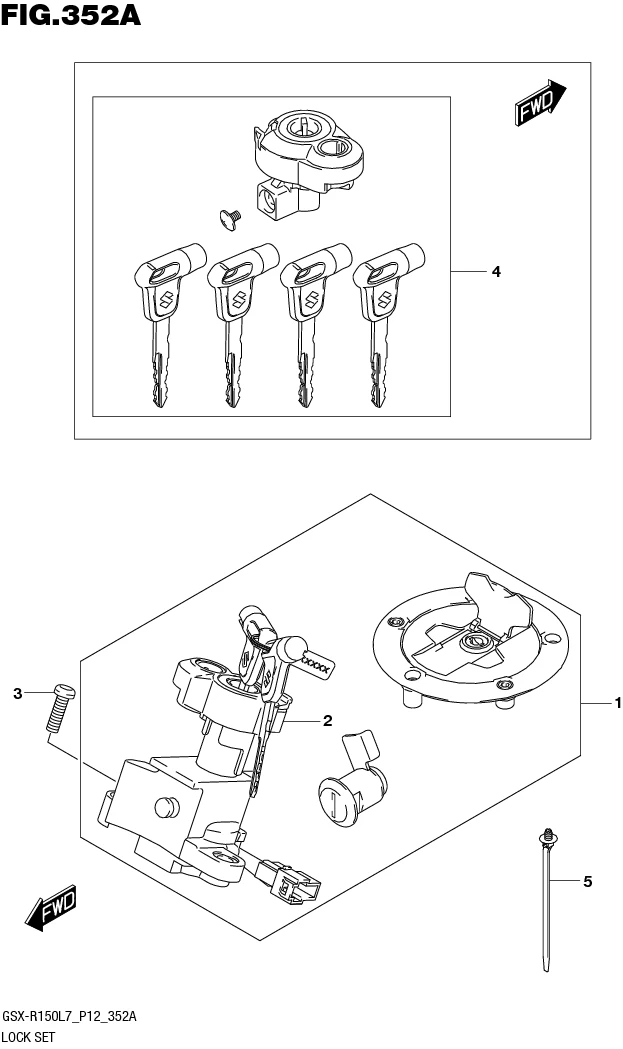

FIG.352A LOCK SET (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)

FIG.352A LOCK SET (GSX-S150MFL7 P12/GSX-S150MFXL7 P12)
No No. Part Description Qty Price Per Pcs Remarks
1 37101-23823-000
SUB: 37101-23820-000		 LOCK SET 1 Rp729.000
2 37100-23K01-000
SUB: 37100-23K00-000		 _LOCK ASSY, STEERING 1 Rp327.000
3 37152-17K00-000
SUB: 09119-08100-000		 BOLT (8X20) 2 Rp29.500
4 37155-23810-000 SHUTTER SET 1 Rp238.500
5 09407-17403-000 CLAMP (L:154) 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
