Preview Engine Transmission Electrical Suspension Body

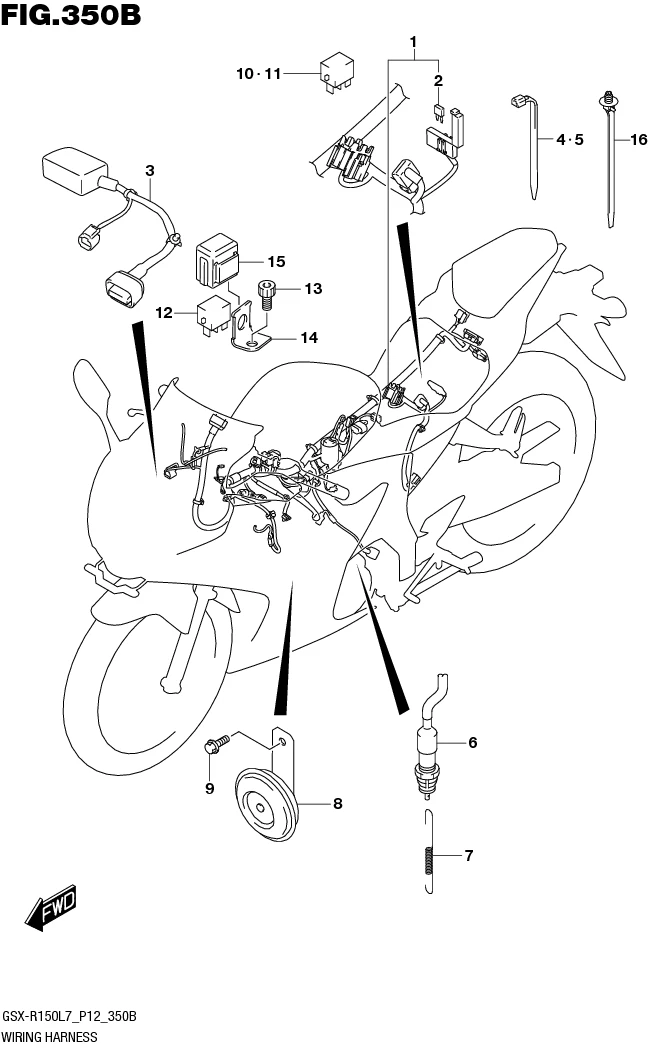

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	36610-23K50-000	HARNESS, WIRING	1	Rp1.093.000
2	09481-10501-000	_FUSE (10A)	2	Rp12.500
3	36620-23K01-000 SUB: 36620-23K00-000	HARNESS, WIRING NO2	1	Rp163.000
4	36990-25G00-000 SUB: 09407-14403L000	CLAMP (L:125)	2	Rp13.000
5	36990-25G20-000	CLAMP, WIRING HARNESS	1	Rp9.500
6	37740-12K10-000	SWITCH ASSY, STOP LAMP	1	Rp34.500
7	43232-34J00-000	SPRING, STOP LAMP SWITCH	1	Rp4.500
8	38500-23K00-000	HORN ASSY	1	Rp61.000
9	01550-0612A-000	BOLT	1	Rp3.500
10	38860-33J00-000	RELAY MAIN	1	Rp35.500	MAIN
11	38860-33J00-000	RELAY FAN MOTOR	1	Rp35.500	FAN MOTOR
12	38860-33J00-000	RELAY SOLENOID	1	Rp35.500	SOLENOID
13	36744-23K10-000	HOLDER, RELAY	1	Rp5.500
14	38741-23K00-000	BRACKET, RELAY	1	Rp4.500
15	07130-0610A-000 SUB: 07130B0610AN000	BOLT	1	Rp5.500
16	09407-17403-000	CLAMP (L:154)	1	Rp3.500
