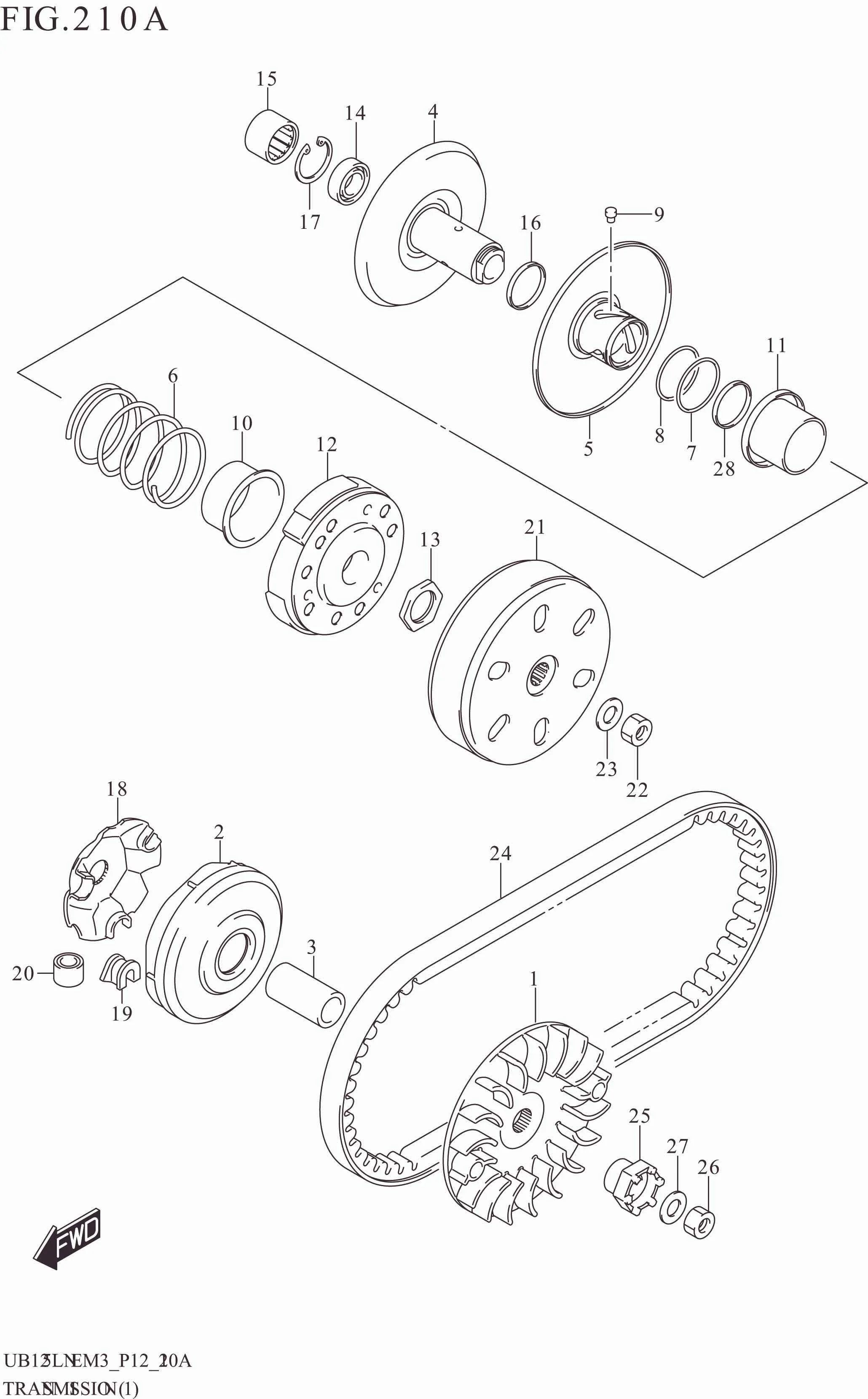

FIG. 210A TRANSMISSION (1)

FIG. 210A TRANSMISSION (1)
No No. Part Description Qty Price Per Pcs Remarks
1 21111-33G50-000 FACE,FIXED DRIVE 1 Rp162.500
2 21120-33G70-000 FACE,MOVABLE DRIVE 1 Rp209.500
3 21125-33G00-000 SPACER,MOVABLE DRIVE 1 Rp68.000
4 21210-08K10-000 FACE,FIXED DRIVEN 1 Rp263.000
5 21240-08K10-000 FACE,MOVABLE DRIVEN 1 Rp209.500
6 21243-08K00-000 SPRING,MOVABLE DRIVEN 1 Rp46.000
7 21245-09J00-000 O-RING 1 Rp11.500
8 21246-08K00-000 O-RING,MOVABLE DRIVEN 1 Rp9.500
9 21248-08K00-000 PIN,MOVABLE DRIVEN 3 Rp5.500
10 21472-08K00-000 SHEET,CLUTCH DRIVE PLATE 1 Rp29.000
11 21471-08K00-000 SHEET,MOVABLE DRIVEN 1 Rp25.000
12 21501-08K10-000 CLUTCH ASSY,SHOE 1 Rp563.000
13 09140-12055-000 NUT 1 Rp5.500
14 21215-08K10-000 BEARING,FIXED DRIVEN,L 1 Rp76.500
15 21214-08K00-000 BEARING,FIXED DRIVEN,R 1 Rp83.000
16 21247-08K00-000 SEAL,MOVABLE DRIVEN OIL 1 Rp29.000
17 21216-08K00-000 CIRCLIP,FIXED DRIVEN 1 Rp9.500
18 21431-33G00-000 PLATE,MOVABLE DRIVE 1 Rp78.000
19 21481-08K00-000 DAMPER,MOVABLE DRIVE PLATE 3 Rp35.000
20 21650-08K10-000 ROLLER,MOVABLE DRIVE 6 Rp31.000
21 21220-08K10-000 HOUSING,CLUTCH 1 Rp265.000
22 09140-12055-000 NUT 1 Rp5.500
23 08211-12223-000 WASHER 1 Rp5.500
24 27601-27L00-000 V-BELT,DRIVE 1 Rp192.500
25 26231-27L00-000 STARTER,KICK,R 1 Rp53.000
26 21518-09J00-000 NUT,SHOE CLUTCH 1 Rp8.500
27 08211-12223-000 WASHER 1 Rp5.500
28 21247-08K00-000 SEAL,MOVABLE DRIVEN OIL 1 Rp29.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
