Burgman Street 125 EX

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 102A CYLINDER HEAD COVER FIG. 103A CYLINDER HEAD FIG. 107A CYLINDER FIG. 108A CRANKCASE FIG. 112A CRANKCASE COVER FIG. 120A CRANKSHAFT FIG. 126A CAMSHAFT/VALVE FIG. 127A CAM CHAIN FIG. 140A THROTTLE BODY FIG. 155A AIR CLEANER FIG. 163A MUFFLER FIG. 170A OIL PUMP FIG. 172A FUEL PUMP FIG. 181A COOLING FAN FIG. 210A TRANSMISSION (1)FIG. 211A TRANSMISSION (2)FIG. 240A KICK STARTER

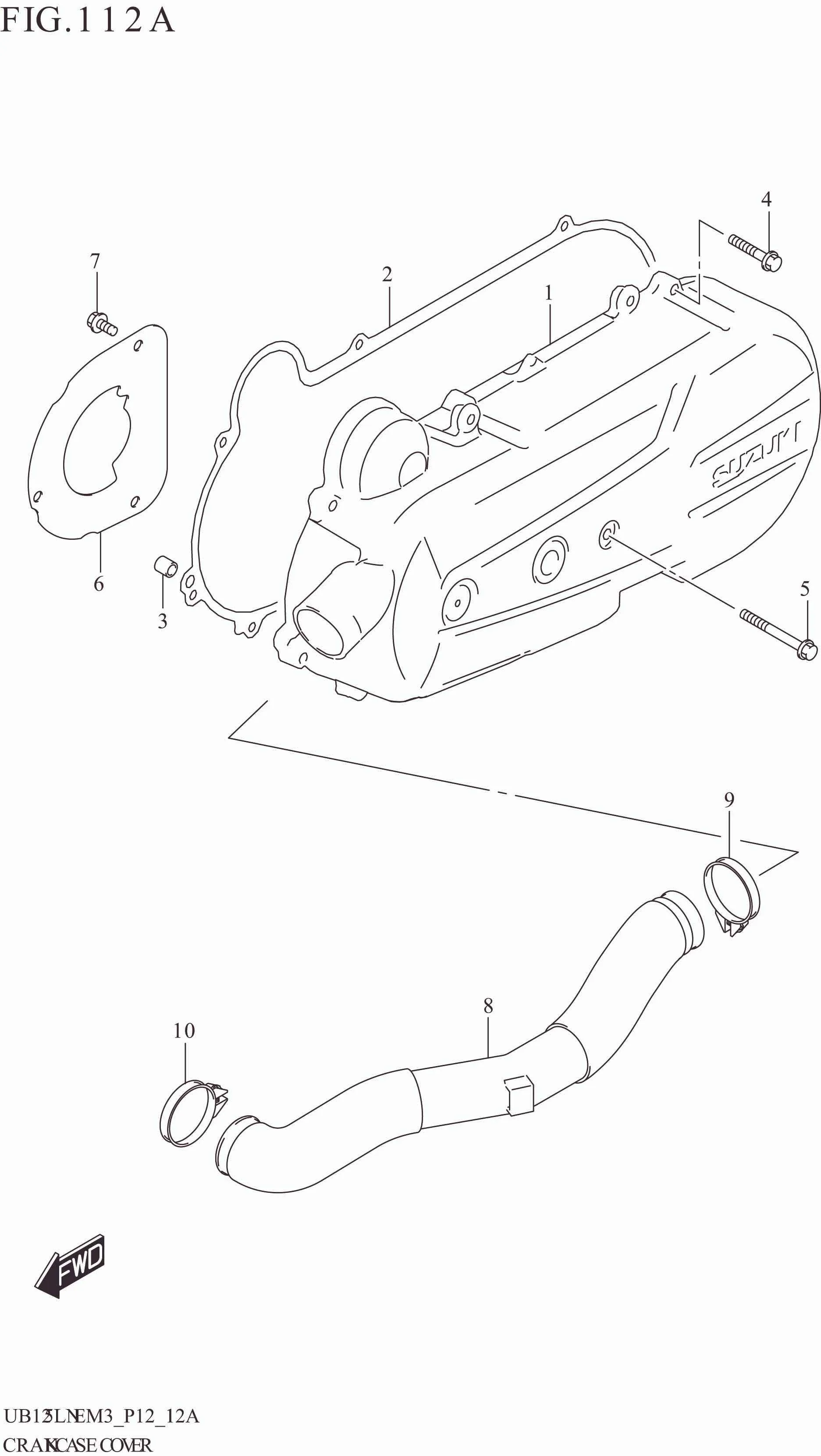

FIG. 112A CRANKCASE COVER

FIG. 112A CRANKCASE COVER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	11340-27L00-000	COVER,CLUTCH	1	Rp913.000
2	11482-27L00-000	GASKET,CLUTCH COVER	1	Rp39.000
3	09206-08008-000	PIN (6.3X8X12)	2	Rp4.000
4	01547-0625A-000	BOLT	8	Rp6.500
5	01547-0690A-000	BOLT	1	Rp22.500
6	11346-08K00-000	PLATE,CLUTCH COVER AIR INTAKE	1	Rp18.000
7	01547-0610A-000	BOLT	3	Rp3.000
8	11383-39J10-000	DUCT,BELT COOLING INLET	1	Rp76.500
9	09402-46209-000	CLAMP	1	Rp40.000
10	09402-42001-000	CLAMP	1	Rp27.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
