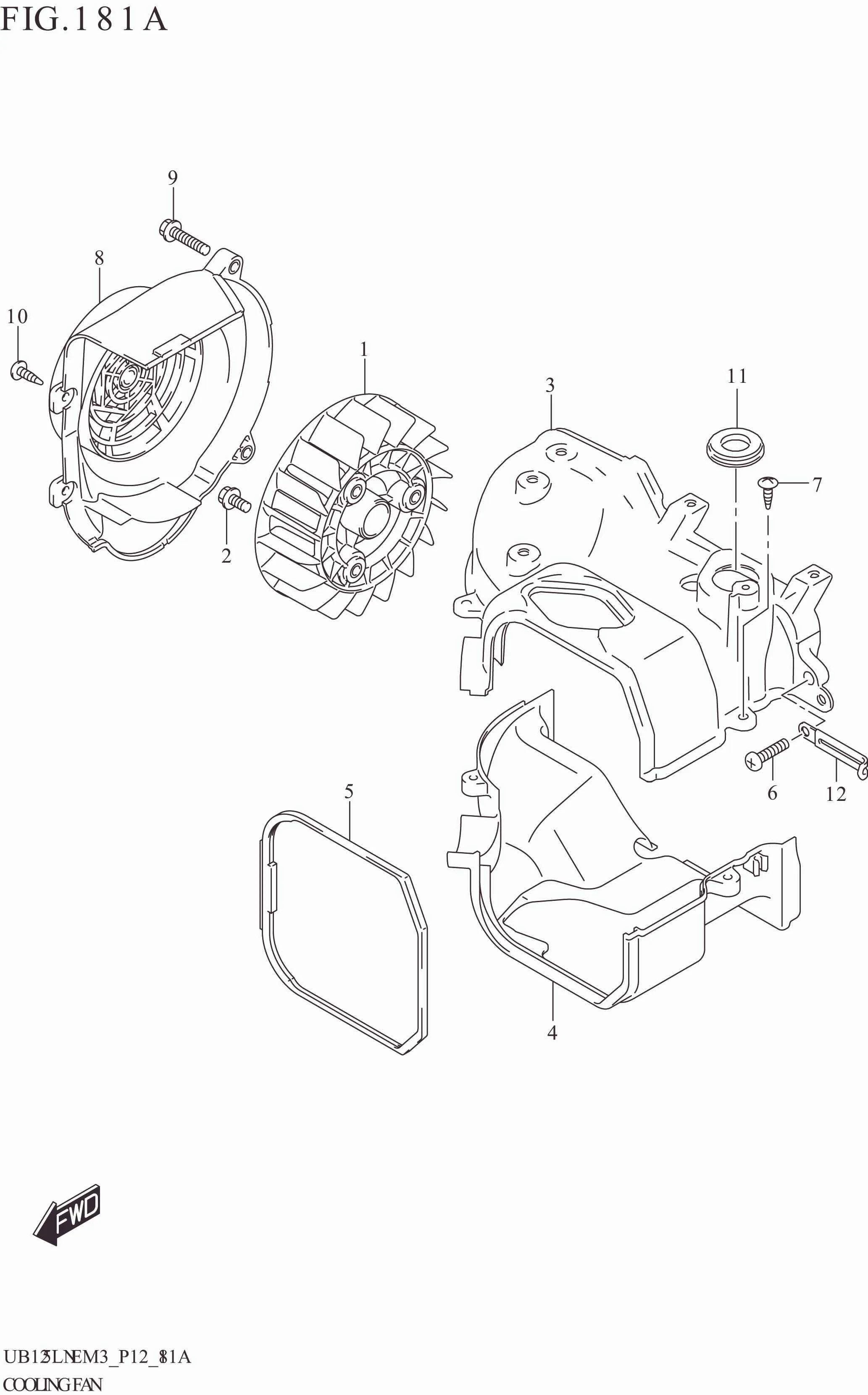

FIG. 181A COOLING FAN

FIG. 181A COOLING FAN

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	17110-27L00-000	FAN,COOLING	1	Rp74.000
2	01550-0612A-000	BOLT	3	Rp3.500
3	17120-27L00-000	COWLING,CYLINDER UPPER	1	Rp44.000
4	17122-27L00-000	COWLING,CYLINDER LOWER	1	Rp69.500
5	17123-08K00-000	MOLD,CYLINDER COWLING	1	Rp29.000
6	01547-0625A-000	BOLT	1	Rp6.500
7	03541-0516A-000	SCREW	2	Rp3.500
8	17130-27L00-000	COWLING,FAN	1	Rp53.500
9	01547-0625A-000	BOLT	2	Rp6.500
10	03541-0516A-000	SCREW	2	Rp3.500
11	17124-02L00-000	MOLD,TENSIONER ADJUSTER	1	Rp6.500
12	09404-06429-000	CLAMP (L:45)	1	Rp15.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
