Burgman Street 125 EX

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 102A CYLINDER HEAD COVERFIG. 103A CYLINDER HEADFIG. 107A CYLINDERFIG. 108A CRANKCASEFIG. 112A CRANKCASE COVERFIG. 120A CRANKSHAFTFIG. 126A CAMSHAFT/VALVEFIG. 127A CAM CHAINFIG. 140A THROTTLE BODYFIG. 155A AIR CLEANERFIG. 163A MUFFLERFIG. 170A OIL PUMPFIG. 172A FUEL PUMPFIG. 181A COOLING FANFIG. 210A TRANSMISSION (1)FIG. 211A TRANSMISSION (2)FIG. 240A KICK STARTER

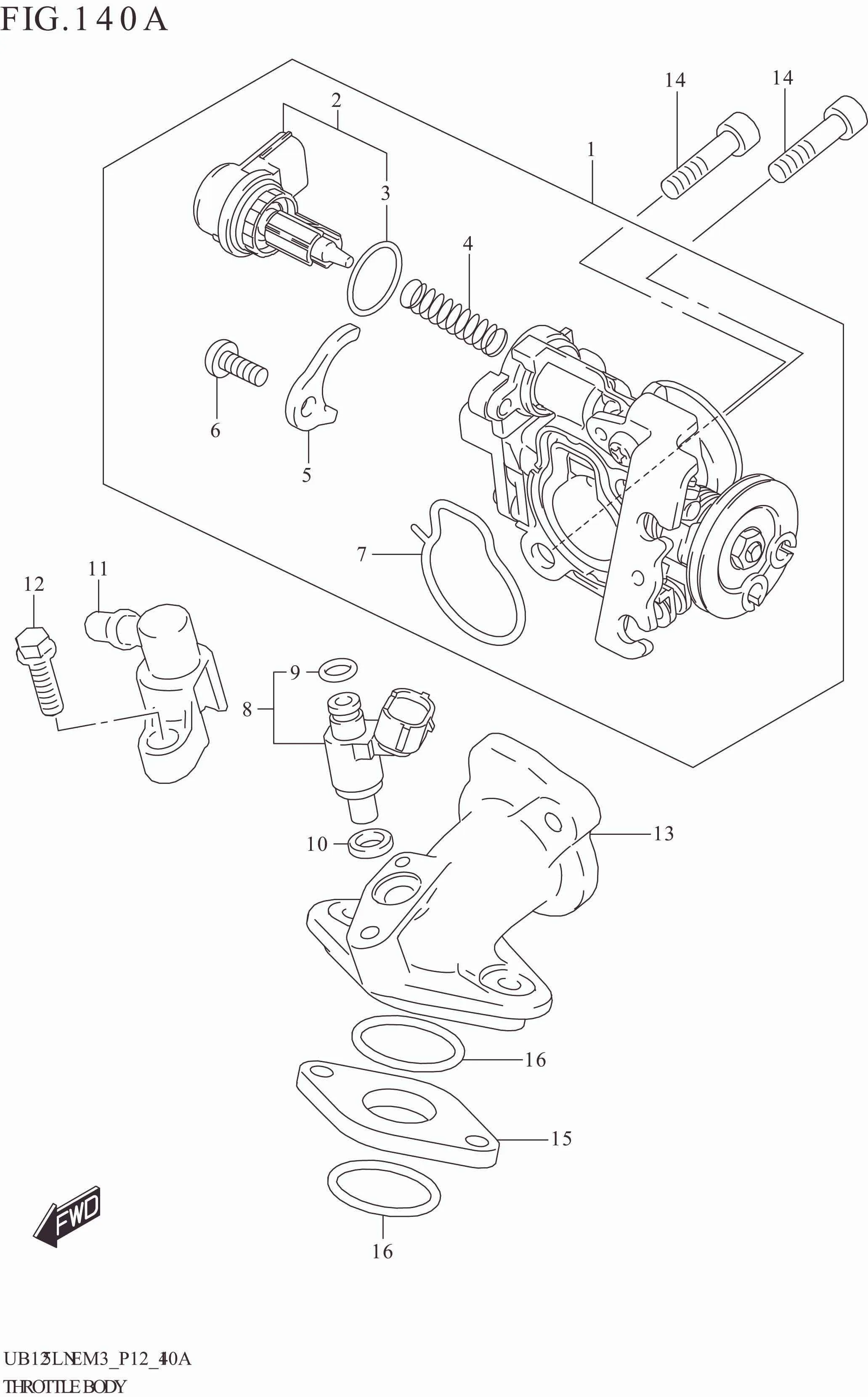

FIG. 140A THROTTLE BODY

FIG. 140A THROTTLE BODY
No No. Part Description Qty Price Per Pcs Remarks
1 13400-02L10-000 BODY ASSY,THROTTLE 1 Rp1.505.000
2 18117-10K00-000 .STEPPING MOTOR 1 Rp480.000
3 13438-09JA0-000 ..O-RING 1 Rp27.500
4 13417-02L00-000 .SPRING 1 Rp5.500
5 13421-02L00-000 .PLATE 1 Rp15.000
6 13602-02L00-000 .SCREW 2 Rp10.500
7 13295-02L00-000 .O-RING 2 Rp22.500
8 15710-02L00-000 INJECTOR ASSY,FUEL 1 Rp543.500
9 15716-42J00-000 .O-RING 1 Rp75.000
10 15722-02L00-000 SEAL 1 Rp8.500
11 15830-02L00-000 JOINT,FUEL HOSE 1 Rp42.000
12 01547-0620B-000 BOLT 1 Rp6.500
13 13111-02L00-000 PIPE,INTAKE 1 Rp128.500
14 07130-0625A-000 BOLT (6X25) 2 Rp3.500
15 13128-08K01-000 INSULATOR,INTAKE PIPE 1 Rp18.500
16 09280-26017-000 O-RING (D:2.4,ID:25.7) 2 Rp9.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
