Burgman Street 125 EX

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 102A CYLINDER HEAD COVERFIG. 103A CYLINDER HEADFIG. 107A CYLINDERFIG. 108A CRANKCASEFIG. 112A CRANKCASE COVERFIG. 120A CRANKSHAFTFIG. 126A CAMSHAFT/VALVEFIG. 127A CAM CHAINFIG. 140A THROTTLE BODYFIG. 155A AIR CLEANERFIG. 163A MUFFLERFIG. 170A OIL PUMPFIG. 172A FUEL PUMPFIG. 181A COOLING FANFIG. 210A TRANSMISSION (1)FIG. 211A TRANSMISSION (2)FIG. 240A KICK STARTER

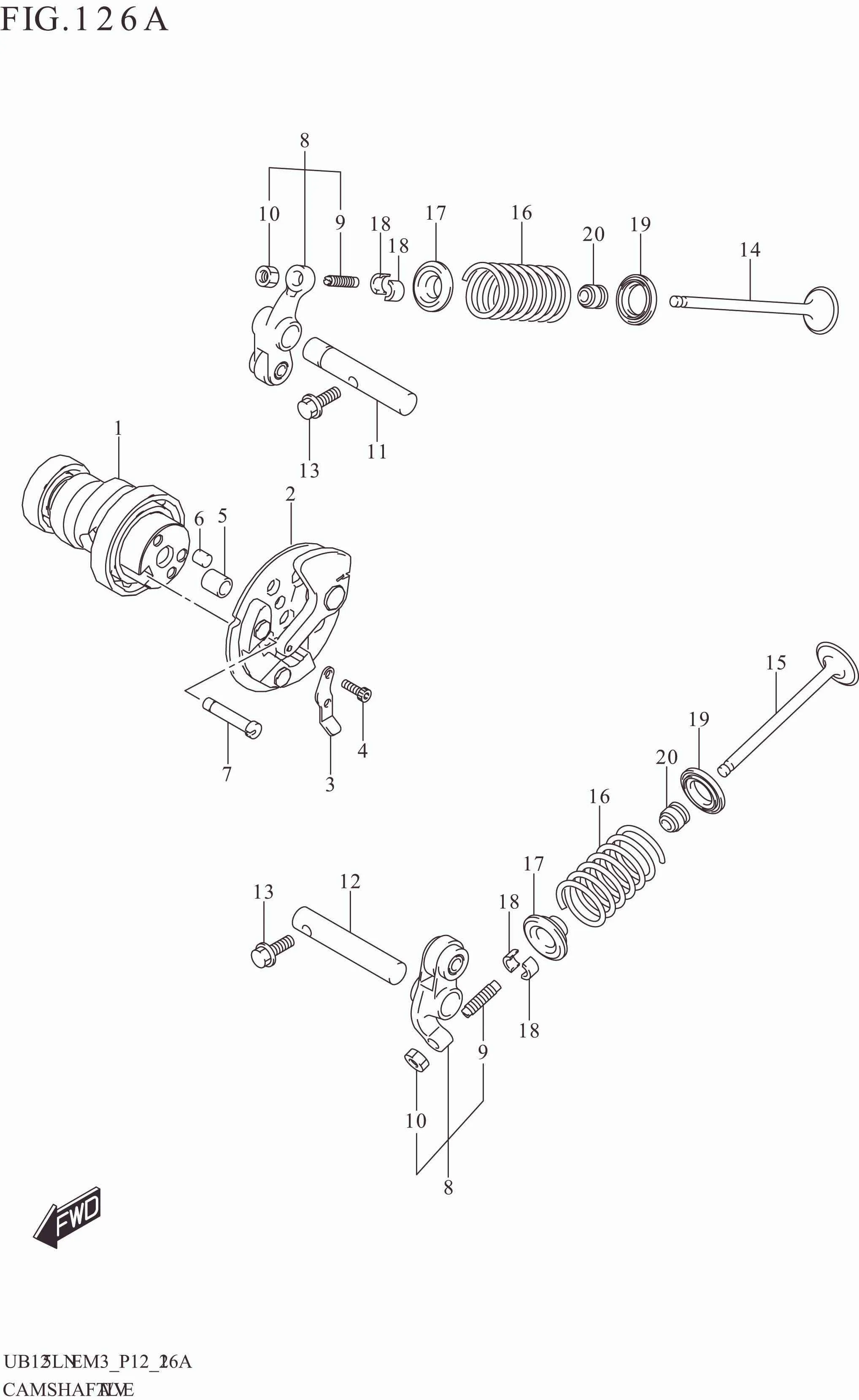

FIG. 126A CAMSHAFT/VALVE

FIG. 126A CAMSHAFT/VALVE
No No. Part Description Qty Price Per Pcs Remarks
1 12710-27L00-000 CAMSHAFT 1 Rp377.500
2 12740-27L00-000 SPROCKET,CAMSHAFT (NT:34) 1 Rp129.500
3 12714-34J10-000 WASHER,SPROCKET (NT:26) 1 Rp5.500
4 12742-27L00-000 BOLT 2 Rp21.000
5 09206-08008-000 PIN (6.3X8X12) 1 Rp4.000
6 09261-05005-000 PIN (5X8) 1 Rp3.000
7 12951-27L00-000 CAM,DECOMPRESSION 1 Rp33.500
8 12840-43J10-000 ARM ASSY,VALVE ROCKER 2 Rp125.000
9 12842-34J00-000 .SCREW,TAPPET ADJUSTING (NT:24) 2 Rp25.000
10 12843-27A70-000 .NUT,TAPPET ADJUSTING 2 Rp5.500
11 12861-35J00-000 SHAFT,VALVE ROCKER ARM INTAKE 1 Rp21.500
12 12871-35J10-000 SHAFT,VALVE ROCKER ARM EXHAUST 1 Rp15.000
13 01550-0512A-000 BOLT 2 Rp2.000
14 12911-43J00-000 VALVE,INTAKE 1 Rp59.500
15 12912-02L00-000 VALVE,EXHAUST 1 Rp76.000
16 12921-43J00-000 SPRING,VALVE 2 Rp23.000
17 12931-09G00-000 RETAINER,VALVE SPRING 2 Rp13.000
18 12932-09G00-000 COTTER VALVE (NT:23) 4 Rp4.500
19 12933-09G00-000 SEAT,VALVE SPRING 2 Rp9.000
20 09289-05019-000 SEAL,OIL (4X10X8) 2 Rp39.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
