Burgman Street 125 EX

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 102A CYLINDER HEAD COVERFIG. 103A CYLINDER HEADFIG. 107A CYLINDERFIG. 108A CRANKCASEFIG. 112A CRANKCASE COVERFIG. 120A CRANKSHAFTFIG. 126A CAMSHAFT/VALVEFIG. 127A CAM CHAINFIG. 140A THROTTLE BODYFIG. 155A AIR CLEANERFIG. 163A MUFFLERFIG. 170A OIL PUMPFIG. 172A FUEL PUMPFIG. 181A COOLING FANFIG. 210A TRANSMISSION (1)FIG. 211A TRANSMISSION (2)FIG. 240A KICK STARTER

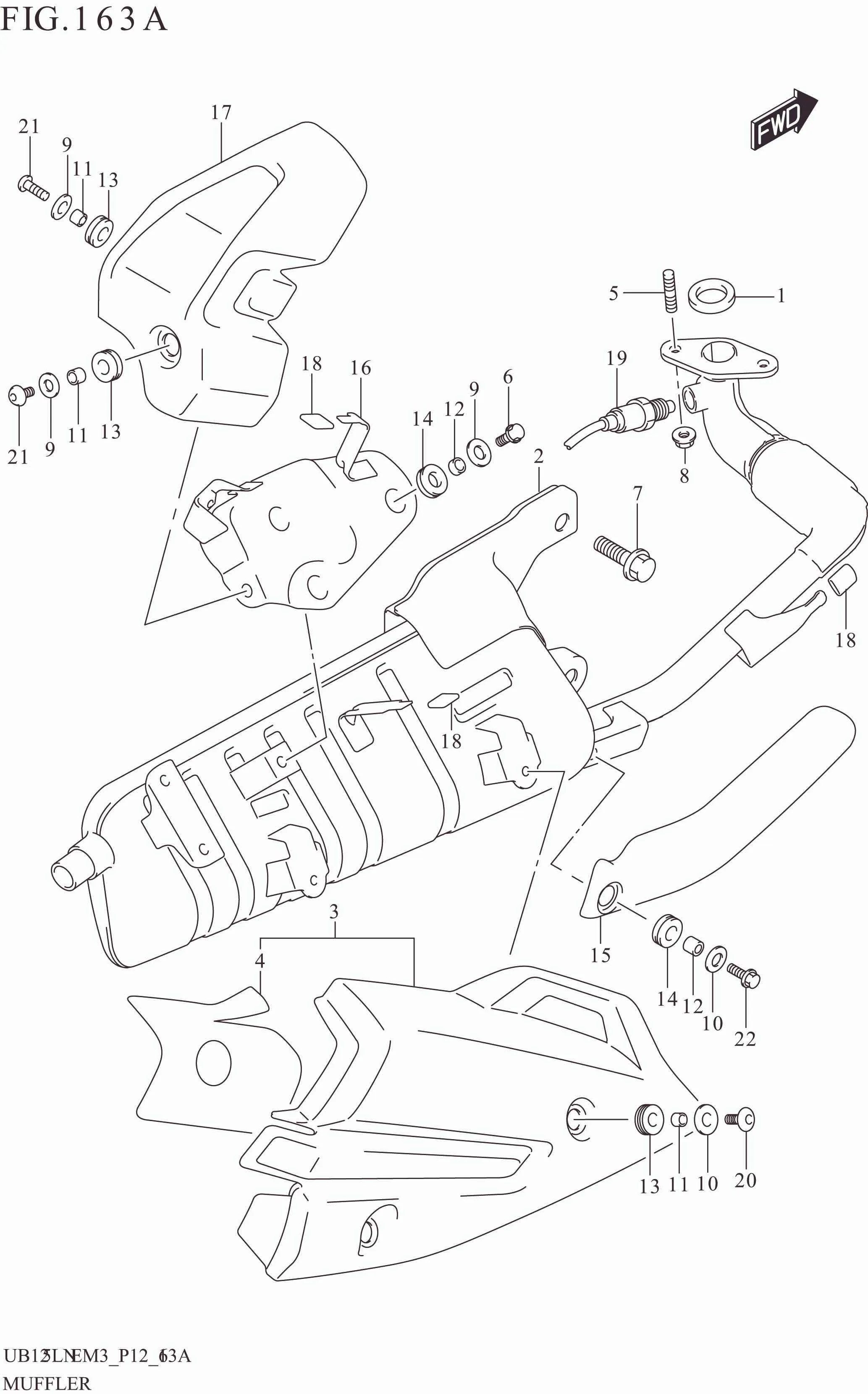

FIG. 163A MUFFLER

FIG. 163A MUFFLER
No No. Part Description Qty Price Per Pcs Remarks
1 14181-30A30-000 GASKET,EXH PIPE 1 Rp22.000
2 14310-27L10-000 BODY,MUFFLER 1 Rp4.359.500
3 14780-44K10-000 COVER,MUFFLER 1 Rp176.500
4 14782-44K00-000 .SHIELD,MUF COVER 1 Rp67.000
5 01421-0616A-000 BOLT,STUD 2 Rp3.500
6 01550-0616A-000 BOLT 3 Rp3.500
7 01550-1040A-000 BOLT 2 Rp7.000
8 08316-1006A-000 NUT (6X12) 2 Rp2.000
9 09160-06028-000 WASHER (6.5X18X1.0) 5 Rp3.500
10 09160-06151-000 WASHER (6.5X18X1) 3 Rp5.500
11 09180-06256-000 SPACER (6.5X9X5.7) 4 Rp3.000
12 09180-06343-000 SPACER 4 Rp12.500
13 09320-08L02-000 CUSHION (8.4X18X6) 4 Rp14.500
14 09320-08082-000 CUSHION 4 Rp10.500
15 14180-44K10-000 COVER,EXH PIPE 1 Rp83.500
16 14760-44K01-000 STAY,MUF RR COV 1 Rp46.500
17 14791-44K20-000 COVER,MUF TAIL 1 Rp121.000
18 14795-10FA0-000 GROMMET 3 Rp5.500
19 18213-12K10-000 SENSOR,OXYGEN 1 Rp741.000
20 09139-06217-000 SCREW (6X16) 2 Rp10.000
21 09139-06198-000 SCREW (6X16) 2 Rp15.500
22 01550-0616B-000 BOLT 1 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
