Burgman Street 125 EX

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 102A CYLINDER HEAD COVERFIG. 103A CYLINDER HEADFIG. 107A CYLINDERFIG. 108A CRANKCASEFIG. 112A CRANKCASE COVERFIG. 120A CRANKSHAFTFIG. 126A CAMSHAFT/VALVEFIG. 127A CAM CHAINFIG. 140A THROTTLE BODYFIG. 155A AIR CLEANERFIG. 163A MUFFLERFIG. 170A OIL PUMPFIG. 172A FUEL PUMPFIG. 181A COOLING FANFIG. 210A TRANSMISSION (1)FIG. 211A TRANSMISSION (2)FIG. 240A KICK STARTER

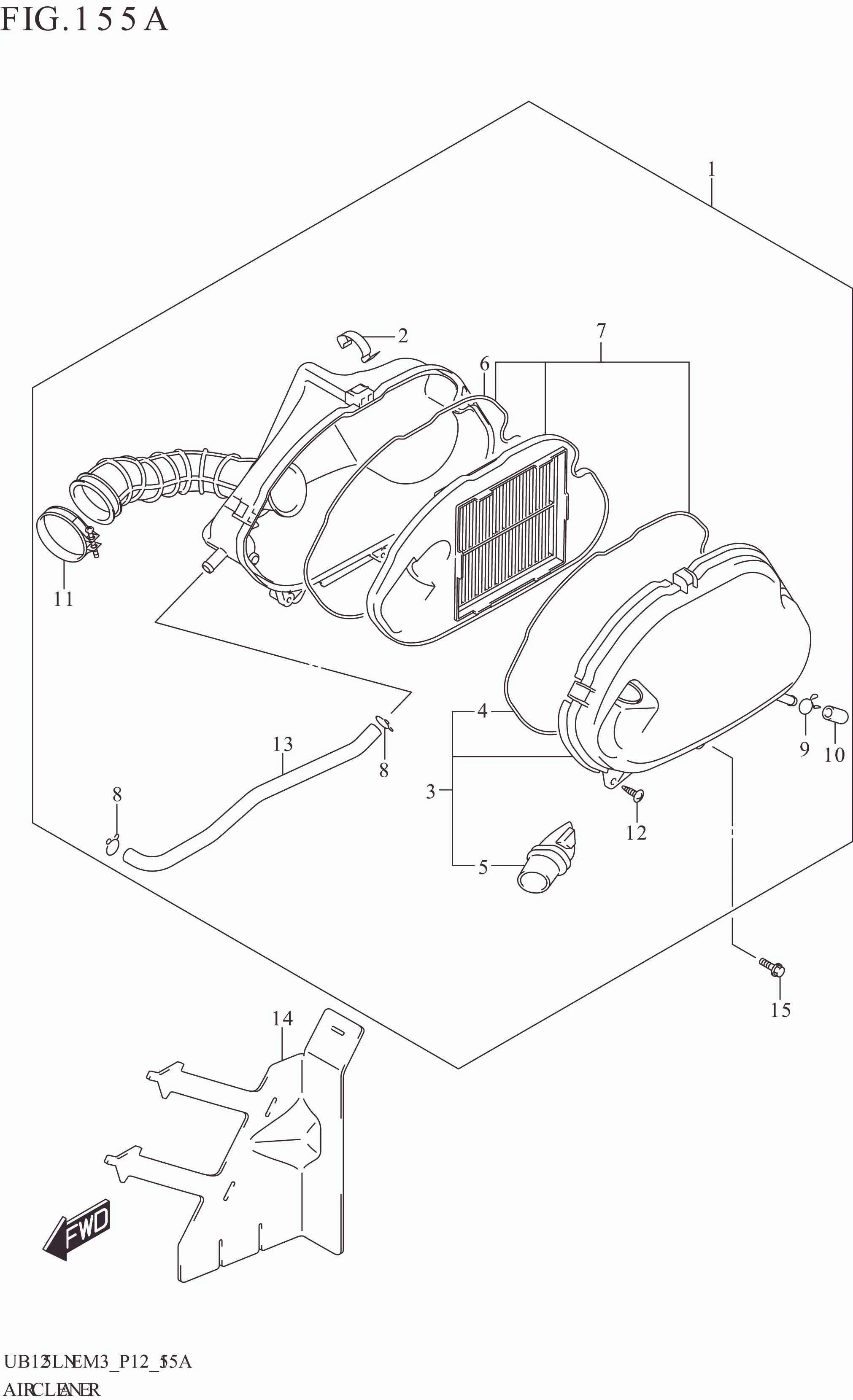

FIG. 155A AIR CLEANER

FIG. 155A AIR CLEANER
No No. Part Description Qty Price Per Pcs Remarks
1 13700-27L00-000 CLEANER ASSY,AIR 1 Rp290.000
2 13755-54G00-000 .CLIP,AIR CLEANER 2 Rp41.000
3 13740-02L20-000 .CAP,AIR CLEANER 1 Rp35.000
4 13746-08K00-000 ..GASKET 1 Rp13.500
5 13891-08K00-000 ..TUBE,INLET 1 Rp24.000
6 13746-08K00-000 .GASKET 1 Rp13.500
7 13700-02810-000 .AIR FILTER KIT 1 Rp72.000
8 09401-12418-000 .CLIP 2 Rp5.500
9 13825-08K00-000 .CLIP 1 Rp5.500
10 13871-41H00-000 .PLUG,DRAIN 1 Rp5.000
11 13856-02L10-000 .CLAMP 1 Rp9.500
12 03541-0525A-000 .SCREW 4 Rp3.500
13 13850-27L00-000 .TUBE,BRETHER 1 Rp18.000
14 13738-44K00-000 GUARD,DUST INTAKE 1 Rp20.500
15 09116-06103-000 BOLT (6X30) 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
