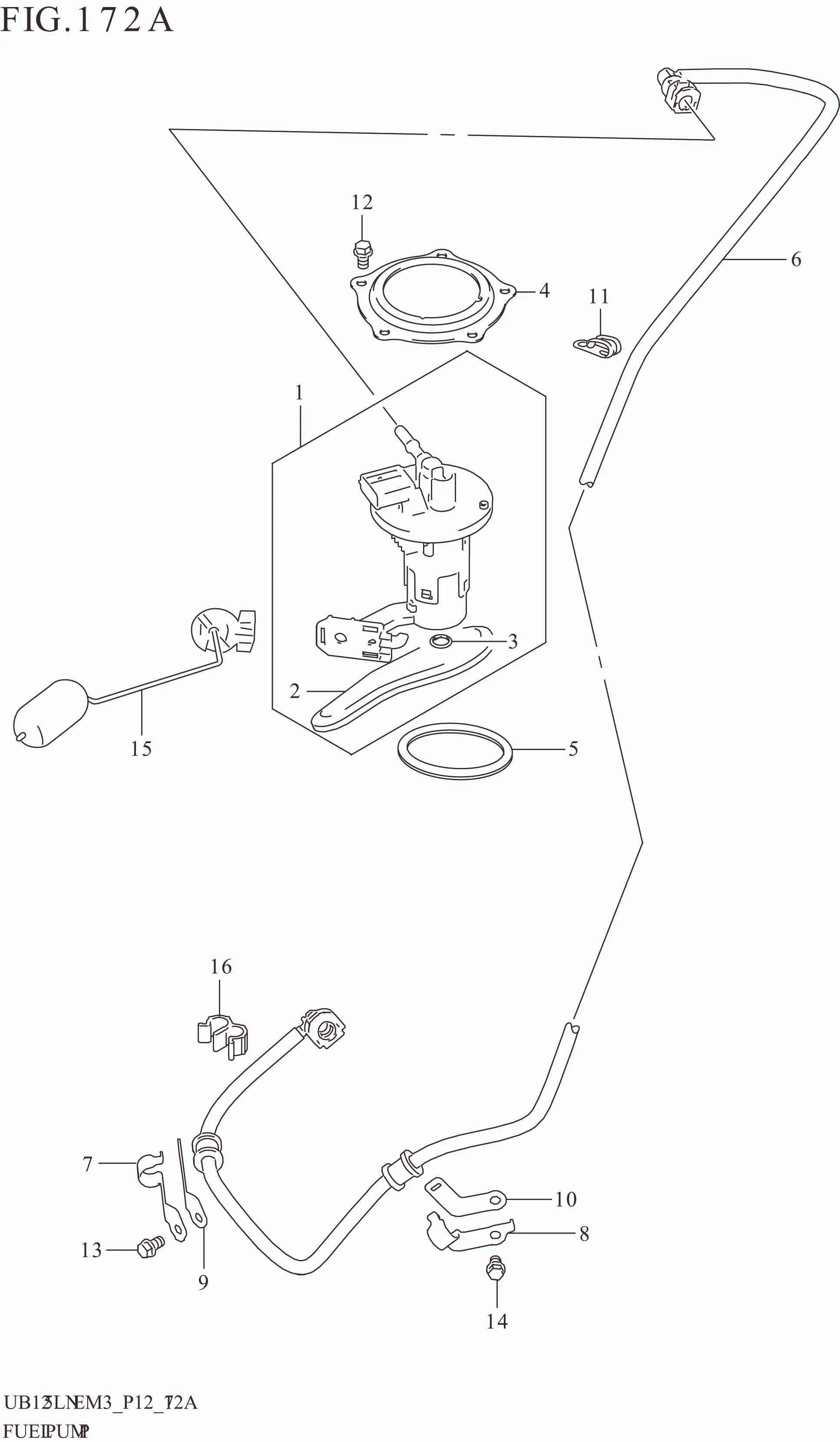

FIG. 172A FUEL PUMP

FIG. 172A FUEL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 15100-02L12-000 PUMP ASSY,FUEL 1 Rp1.064.500
2 15420-02L10-000 .FILTER 1 Rp187.000
3 15424-09JB0-000 .O-RING 1 Rp10.000
4 15121-02L10-000 PLATE,FUEL PUMP 1 Rp40.000
5 15201-02L00-000 O-RING,FUEL PUMP 1 Rp87.500
6 15810-02L11-000 HOSE,FUEL 1 Rp717.000
7 15891-02L00-000 CLAMP,FUEL HOSE FR 1 Rp14.500
8 15892-02L00-000 CLAMP,FUEL HOSE RR 1 Rp9.000
9 15893-02L00-000 CLAMP,FUEL HOSE RR NO.2 1 Rp8.000
10 15894-02L00-000 CLAMP,FUEL HOSE RR NO.2 1 Rp6.500
11 09404-06429-000 CLAMP (L:45) 1 Rp15.000
12 01547-0610A-000 BOLT 5 Rp3.000
13 01547-0610A-000 BOLT 1 Rp3.000
14 01547-0610A-000 BOLT 1 Rp3.000
15 34810-44K00-000 GAUGE ASSY,FUEL LEVEL SENDER 1 Rp167.000
16 09408-00349-000 CLAMP 1 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
