Burgman Street 125 EX

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 102A CYLINDER HEAD COVERFIG. 103A CYLINDER HEADFIG. 107A CYLINDERFIG. 108A CRANKCASEFIG. 112A CRANKCASE COVERFIG. 120A CRANKSHAFTFIG. 126A CAMSHAFT/VALVEFIG. 127A CAM CHAINFIG. 140A THROTTLE BODYFIG. 155A AIR CLEANERFIG. 163A MUFFLERFIG. 170A OIL PUMPFIG. 172A FUEL PUMPFIG. 181A COOLING FANFIG. 210A TRANSMISSION (1)FIG. 211A TRANSMISSION (2)FIG. 240A KICK STARTER

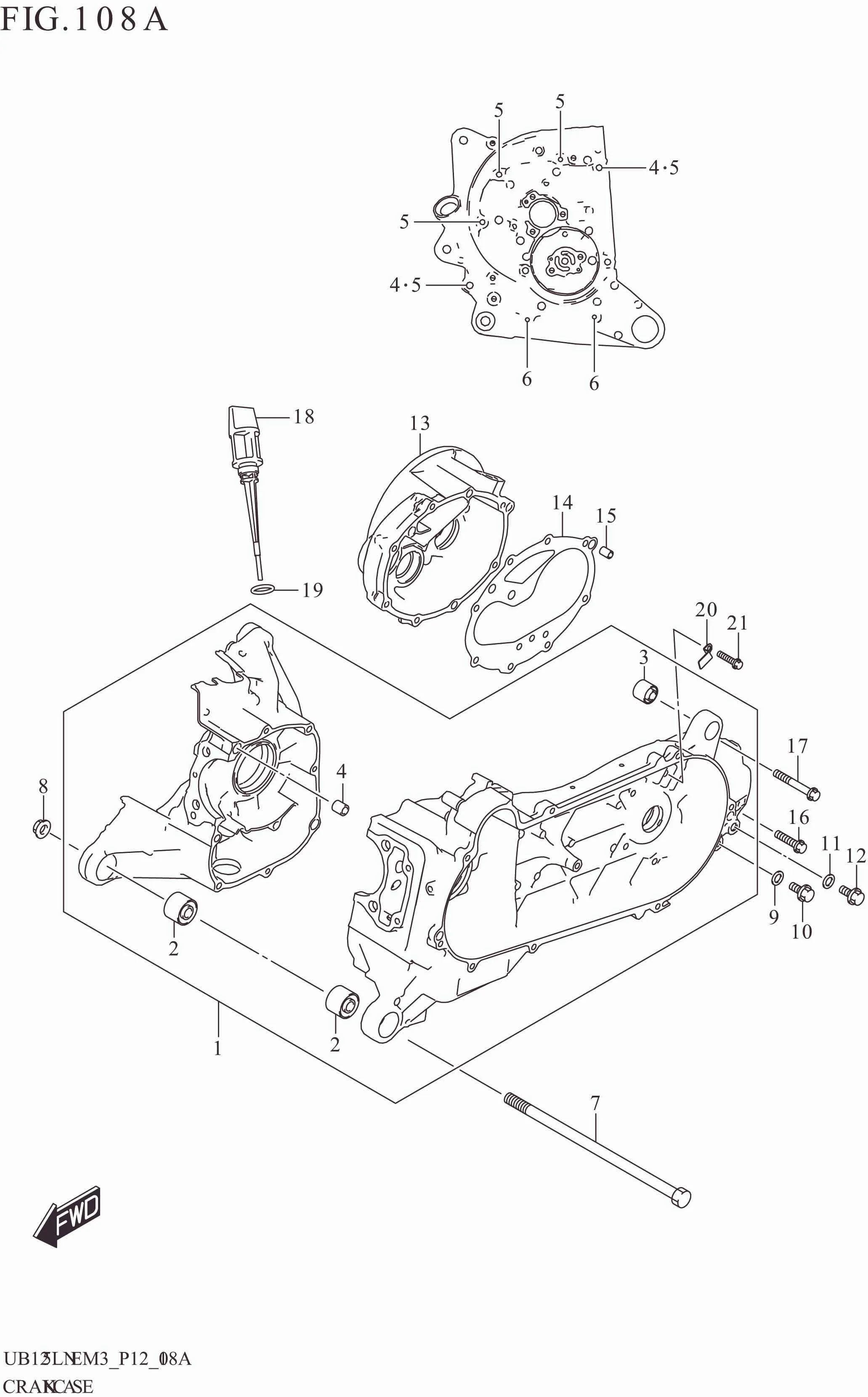

FIG. 108A CRANKCASE

FIG. 108A CRANKCASE
No No. Part Description Qty Price Per Pcs Remarks
1 11300-27890-000 CRANKCASE SET 1 Rp2.676.000
2 11315-09J01-000 .BUSH,ENGINE MOUNTING 2 Rp35.000
3 11316-39J00-000 .BUSH,REAR SHOCK ABS 1 Rp37.000
4 09206-08008-000 .PIN (6.3X8X12) 2 Rp4.000
5 01547-0655A-000 .BOLT 5 Rp7.500
6 01547-0695A-000 .BOLT 2 Rp7.500
7 11611-39J00-000 BOLT,ENG MTG (L:240) 1 Rp35.500
8 08316-1010A-000 NUT 1 Rp3.500
9 09168-08008-000 GASKET (8.2X14X1) 1 Rp3.000
10 01550-0812A-000 BOLT (8X12) 1 Rp3.500
11 09168-08008-000 GASKET (8.2X14X1) 1 Rp3.000
12 01550-0812A-000 BOLT (8X12) 1 Rp3.500
13 11430-27810-000 COVER SET,GEAR BOX 1 Rp619.000
14 11484-27L00-000 GASKET,GEAR BOX COVER 1 Rp14.000
15 09206-10014-000 PIN (6.4X10X20) 2 Rp3.000
16 01547-0630A-000 BOLT 5 Rp6.500
17 01547-0645A-000 BOLT 2 Rp7.000
18 11971-09J00-000 GAUGE,OIL LEVEL 1 Rp23.000
19 09280-17003-000 O-RING (D:3.1,ID:16.8) 1 Rp2.000
20 11323-27L00-000 PLATE,CRANKCASE 1 Rp2.000
21 01547-0630A-000 BOLT 1 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
