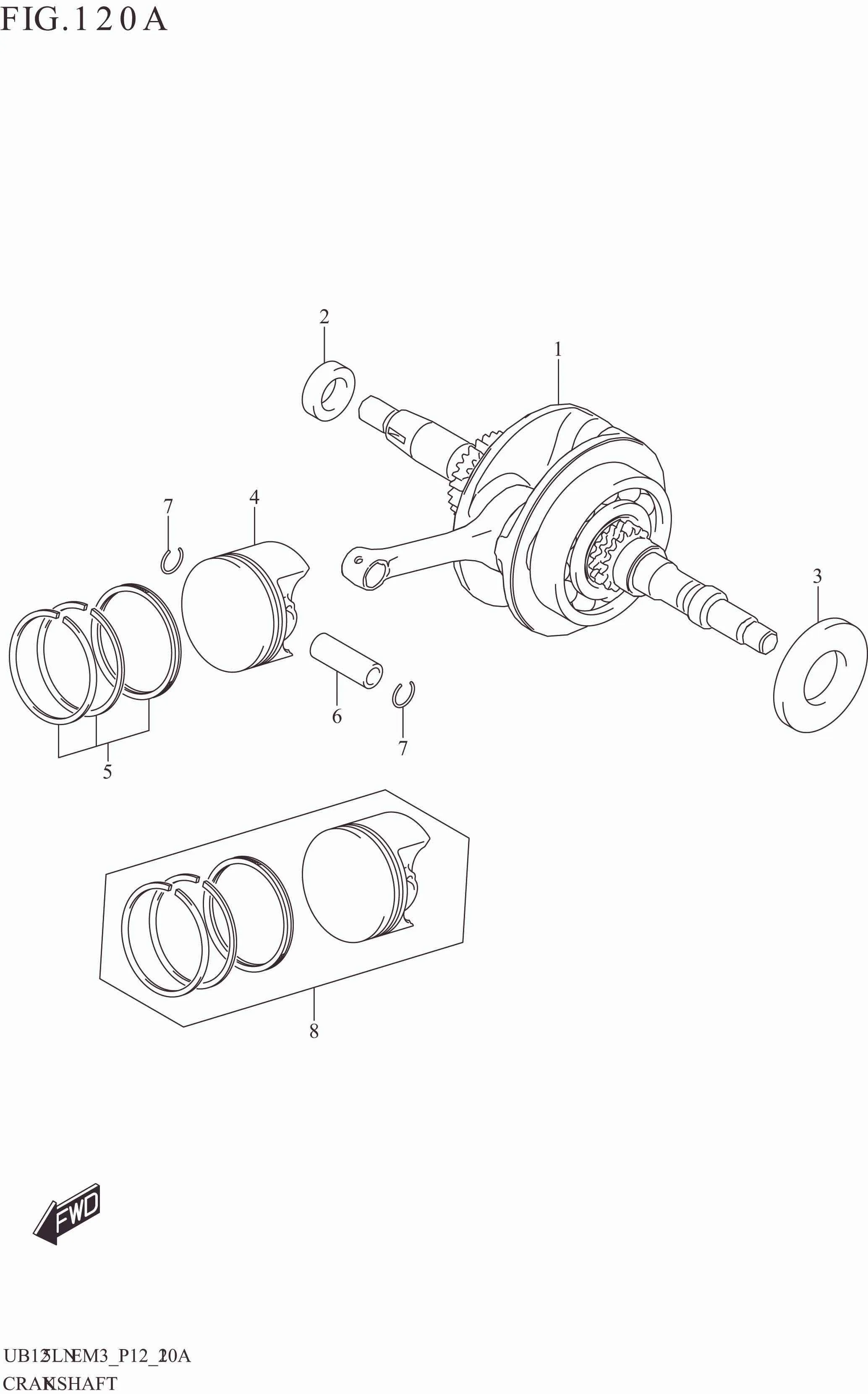

FIG. 120A CRANKSHAFT

FIG. 120A CRANKSHAFT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	12200-27L00-000	CRANKSHAFT ASSY	1	Rp1.541.500
2	09283-20074-000	SEAL,OIL (20X28X5)	1	Rp25.500
3	12227-08K00-000	SEAL,CRANKSHAFT OIL,L	1	Rp41.000
4-1	12111-08K00-0F0	PISTON	1	Rp139.500
4-2	12111-08K10-0F0	PISTON	1	Rp115.000
5	12140-08K50-000	RING SET,PISTON	1	Rp89.500
6	12151-43J00-000	PIN,PISTON	1	Rp33.500
7	09381-12001-000	RING,SNAP	2	Rp12.500
8	12100-08K50-050	PISTON SET (OS:0.5)	1	Rp197.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
