Burgman Street 125 EX

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 102A CYLINDER HEAD COVER FIG. 103A CYLINDER HEAD FIG. 107A CYLINDER FIG. 108A CRANKCASE FIG. 112A CRANKCASE COVER FIG. 120A CRANKSHAFT FIG. 126A CAMSHAFT/VALVE FIG. 127A CAM CHAIN FIG. 140A THROTTLE BODY FIG. 155A AIR CLEANER FIG. 163A MUFFLER FIG. 170A OIL PUMP FIG. 172A FUEL PUMP FIG. 181A COOLING FAN FIG. 210A TRANSMISSION (1)FIG. 211A TRANSMISSION (2)FIG. 240A KICK STARTER

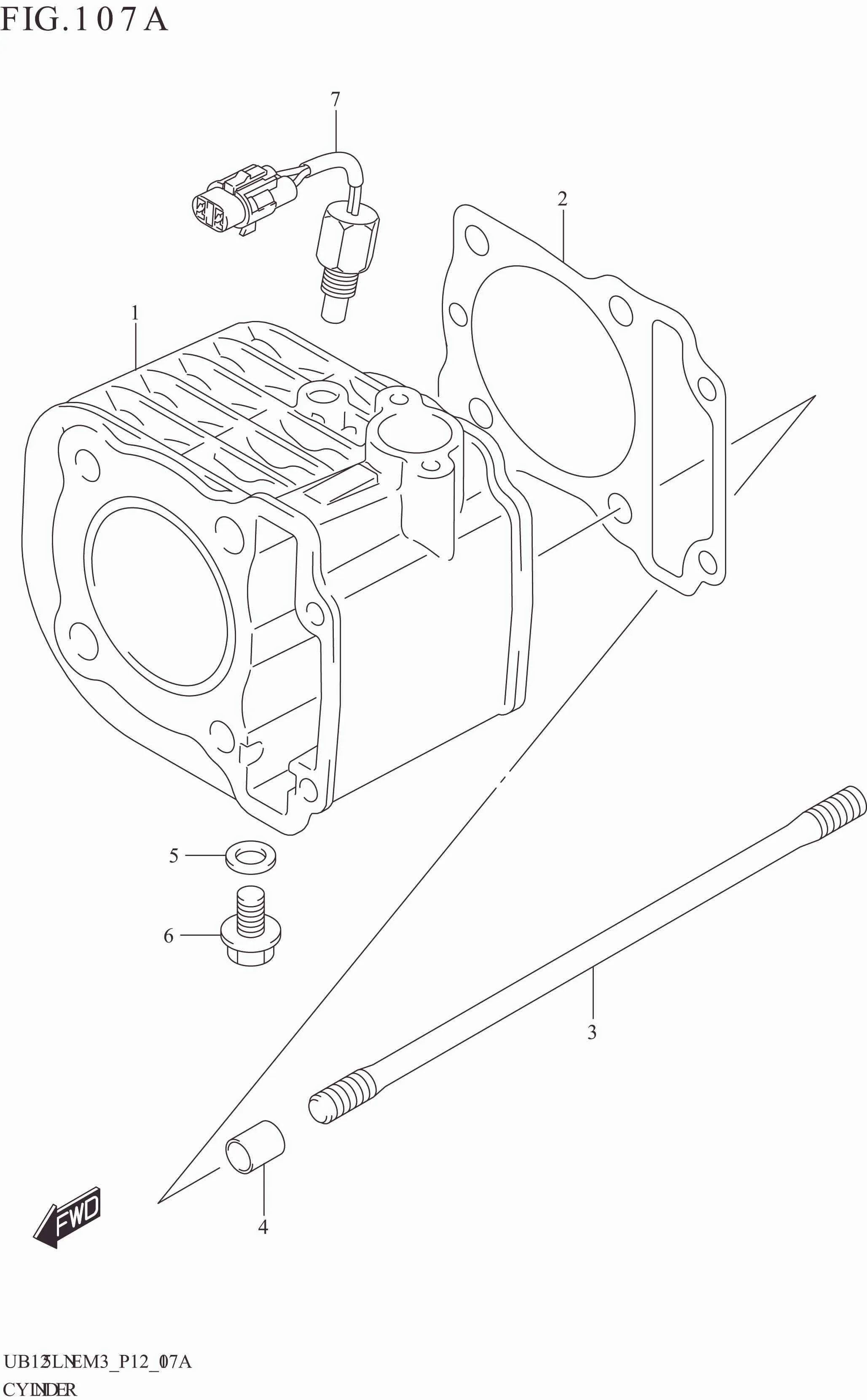

FIG. 107A CYLINDER

FIG. 107A CYLINDER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	11210-02L20-0F0	CYLINDER	1	Rp666.000
2	11241-08K00-000	GASKET,CYLINDER	1	Rp11.500
3	09108-08302-000	BOLT,STUD (L:192)	4	Rp26.500
4	09206-10016-000	PIN (8.2X10X13)	2	Rp3.500
5	09168-08008-000	GASKET (8.2X14X1)	1	Rp3.000
6	01550-0812A-000	BOLT (8X12)	1	Rp3.500
7	13640-02L00-000	SENSOR,ENGINE TEMP	1	Rp122.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
