  5. FIG. 858A 3RD LH SEAT

All New Ertiga Type 3

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 570A FRONT HOOD PANELFIG. 572A TIRE CARRIERFIG. 580A FRONT FENDER PANEL (ERTIGA:(GA,GL))FIG. 580B FRONT FENDER PANEL (ERTIGA:(GX,GX_LTD))FIG. 590A FRONT BODY PANELFIG. 590B FRONT BODY PANELFIG. 600A FLOOR PANELFIG. 640A SIDE BODY PANELFIG. 660A ROOF PANEL (GA)FIG. 660B ROOF PANEL (GL,GX,GX_LTD)FIG. 717A FRONT BUMPERFIG. 718A REAR BUMPERFIG. 721A INSTRUMENT PANEL UPPERFIG. 730A VENTILATOR (GA,GL)FIG. 730B VENTILATOR (GX,GX_LTD)FIG. 732A HEATER UNITFIG. 735A HEATER BLOWER (GA:SEE NOTE)FIG. 735B HEATER BLOWER (GL:SEE NOTE)FIG. 735C HEATER BLOWER (GX,GX_LTD:SEE NOTE)FIG. 736A HEATER DOOR (GA:SEE NOTE)FIG. 736B HEATER DOOR (GL:SEE NOTE)FIG. 736C HEATER DOOR (GX,GX_LTD:SEE NOTE)FIG. 737A EVAPORATOR UNIT (GA,GL:SEE NOTE)FIG. 737B EVAPORATOR UNIT (GX,GX_LTD:SEE NOTE)FIG. 73AA HEATER CONTROL (GA)FIG. 73AB HEATER CONTROL (GL,GX,GX_LTD)FIG. 740A CONSOLE BOX (GA)FIG. 740B CONSOLE BOX (GL)FIG. 740C CONSOLE BOX (GX,GX_LTD)FIG. 741A FLOOR CARPETFIG. 745A INTERIOR TRIMFIG. 750A COVER/CAPFIG. 755A FUEL LID OPENERFIG. 757A ROOF SIDE PADFIG. 760A ROOF LININGFIG. 772A MOLDINGFIG. 774A SPLASH GUARDFIG. 780A EMBLEMFIG. 790A WINDSHIELDFIG. 800A FRONT DOOR PANELFIG. 801A REAR DOOR PANELFIG. 805A BACK DOOR PANEL (GA)FIG. 805B BACK DOOR PANEL (GL,GX,GX_LTD)FIG. 810A FRONT DOOR REGULATORFIG. 811A REAR DOOR REGULATORFIG. 820A FRONT DOOR LOCK (GA)FIG. 820B FRONT DOOR LOCK (GL)FIG. 820C FRONT DOOR LOCK (GX,GX_LTD)FIG. 821A REAR DOOR LOCK (GA,GL)FIG. 821B REAR DOOR LOCK (GX,GX_LTD)FIG. 824A BACK DOOR LOCKFIG. 835A MIRROR/SUNVISOR (GA)FIG. 835B MIRROR/SUNVISOR (GL)FIG. 835C MIRROR/SUNVISOR (GX,GX_LTD)FIG. 841A FRONT SEAT BELTFIG. 843A 2ND SEAT BELTFIG. 844A 3RD SEAT BELTFIG. 848A FRONT LH SEAT (GA)FIG. 848B FRONT LH SEAT (GL,GX,GX_LTD)FIG. 849A FRONT RH SEAT (GA,GL)FIG. 849B FRONT RH SEAT (GX,GX_LTD)FIG. 854A 2ND RH SEAT (GA)FIG. 854B 2ND RH SEAT (GL,GX,GX_LTD)FIG. 855A 2ND LH SEATFIG. 857A 3RD RH SEATFIG. 858A 3RD LH SEATFIG. 865A FUEL TANKFIG. 893A TOOLFIG. 960A CONDENSERFIG. 968A FRONT A/C PIPING (GA)FIG. 968B FRONT A/C PIPING (GL,GX,GX_LTD)FIG. 970A REAR A/C PIPING (GL,GX,GX_LTD)FIG. 972A COOLING UNIT (GL,GX,GX_LTD)FIG. 990A COMPRESSORFIG. 990HA ACCESSORIESFIG. 722A INSTRUMENT PANEL LOWER

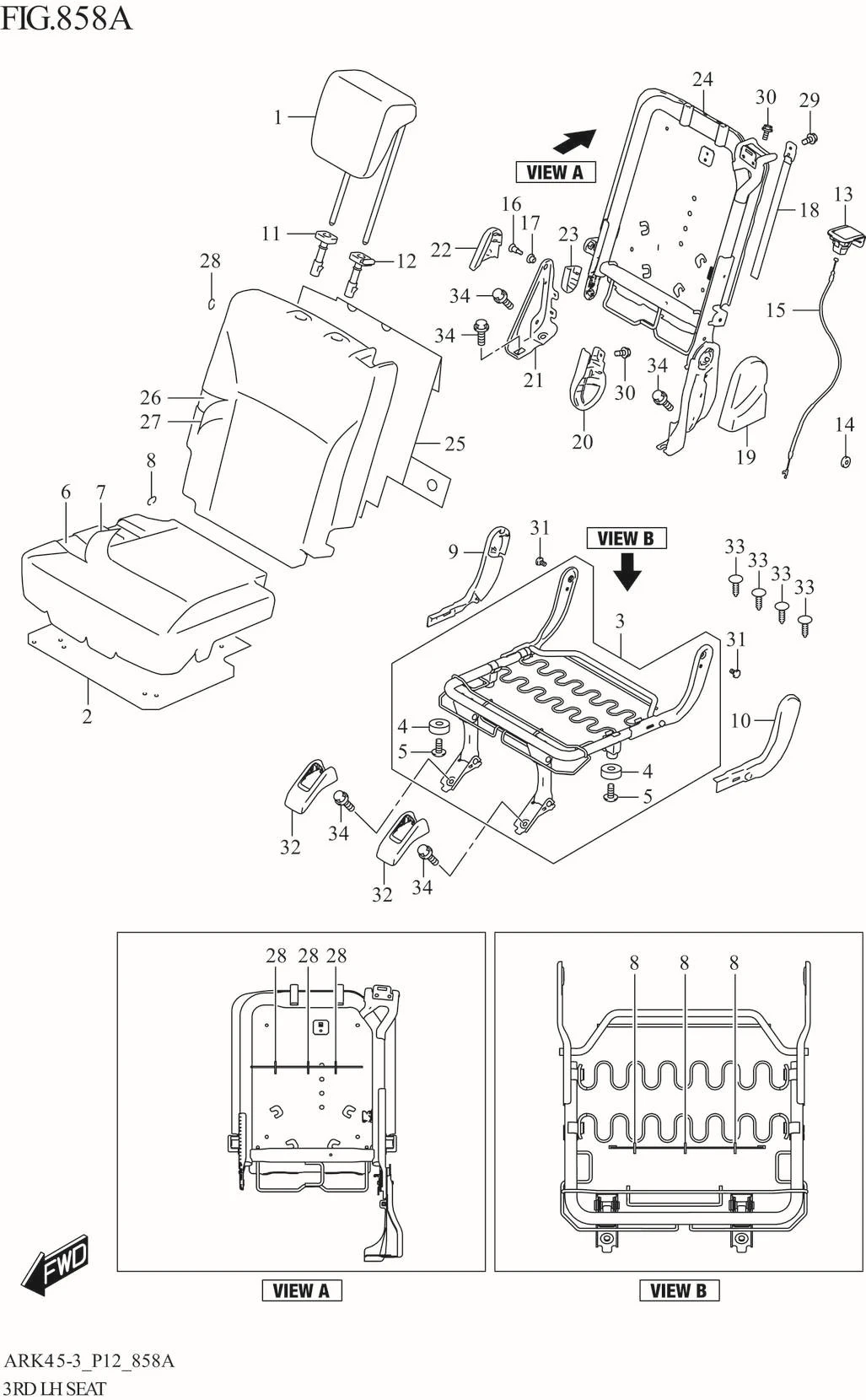

FIG. 858A 3RD LH SEAT

FIG. 858A 3RD LH SEAT
No No. Part Description Qty Price Per Pcs Remarks
1-2 86401-73RA0-DJV HEADRESTRAINT ASSY,3RD (BEIGE) 1 Rp773.500
1-1 86401-73RA0-WCV HEADRESTRAINT ASSY,3RD (BEIGE) 1 Rp364.500
1-3 86401-73RA0-DWH HEADRESTRAINT ASSY,3RD (BLACK) 1 Rp755.500
2 87163-78F00-000 SUPPORT,RR CUSH 1 Rp7.000
3 88104-73RA1-000 FRAME ASSY,3RD CUSH,L 1 Rp566.500
4 87193-82K00-000 .CUSHION,RR LEG STOPPER 2 Rp12.500
5 03241-0512A-000
SUB: 03241B0512AN000		 .SCREW 2 Rp3.500
6 88660-73RA0-000 PAD,3RD CUSH,L 1 Rp253.500
7-1 88680-73RA0-DGQ TRIM,3RD CUSH,L (BEIGE/BROWN) 1 Rp551.500
7-2 88680-73RA0-DJQ TRIM,3RD CUSH,L (BEIGE/BROWN) 1 Rp452.500
7-3 88680-73RA0-DWG TRIM,3RD CUSH,L (BLACK) 1 Rp551.500
8 09387-19001-000 RING (OD:22.6) 3 Rp9.000
9-1 88171-73RA0-V6N COVER,3RD STAY,R (BEIGE) 1 Rp14.500
9-2 88171-73RA0-5PK COVER,3RD STAY,R (BLACK) 1 Rp15.000
10-1 88172-73RA0-R8R COVER,3RD STAY,L (BROWN) 1 Rp13.000
10-2 88172-73RA0-5PK COVER,3RD STAY,L (BLACK) 1 Rp16.000
11-1 85341-58RA1-V6N GUIDE,HEADRESTRAINT (BEIGE) 1 Rp10.500
11-2 85341-58RA1-P4Z GUIDE,HEADRESTRAINT (GRAY) 1 Rp10.000
12-1 85840-73R10-V6N GUIDE,HEADRESTRAINT (BEIGE) 1 Rp11.000
12-2 85840-73R10-P4Z GUIDE,HEADRESTRAINT (GRAY) 1 Rp11.000
13-1 87290-70K00-V6N KNOB,RCLNG RELEASE (BEIGE) 1 Rp99.000
13-2 87290-70K00-5PK KNOB,RCLNG RELEASE (BLACK) 1 Rp97.000
14 87371-73R00-000 WASHER,CABLE END 1 Rp5.500
15 88294-73RA1-000 CABLE,3RD RCLNG RELEASE 1 Rp46.500
16 88321-73RA0-000 BOLT,3RD BACK HINGE 1 Rp9.000
17 88322-73RA0-000 BUSH,3RD BACK HINGE 1 Rp6.500
18-1 88370-73RA0-R8R BAND ASSY,3RD BACK (BROWN) 1 Rp8.000
18-2 88370-73RA0-5PK BAND ASSY,3RD BACK (BLACK) 1 Rp7.500
19-1 88721-73RA0-R8R COVER,3RD RCLNG LOWER,L (BROWN) 1 Rp11.000
19-2 88721-73RA0-5PK COVER,3RD RCLNG LOWER,L (BLACK) 1 Rp12.500
20-1 88722-73RA1-R8R COVER,3RD RCLNG UPR,L (BROWN) 1 Rp14.500
20-2 88722-73RA1-5PK COVER,3RD RCLNG UPR,L (BLACK) 1 Rp12.500
21 88731-73RB0-000 BRACKET,3RD BACK HINGE,L 1 Rp170.500
22-1 88741-73RA0-V6N COVER,3RD HINGE LOWER,L (BEIGE) 1 Rp10.000
22-2 88741-73RA0-5PK COVER,3RD HINGE LOWER,L (BLACK) 1 Rp8.500
23-1 88742-73RA0-V6N COVER,3RD HINGE UPPER,L (BEIGE) 1 Rp5.500
23-2 88742-73RA0-5PK COVER,3RD HINGE UPPER,L (BLACK) 1 Rp5.500
24 88810-73RA1-000 FRAME,3RD BACK,L 1 Rp1.145.500
25 88834-73RA0-000 SILENCER,3RD BACK,L 1 Rp37.000
26 88860-73RA0-000 PAD,3RD BACK,L 1 Rp219.500
27-1 88880-73RA0-DGQ TRIM,3RD BACK,L (BEIGE/BROWN) 1 Rp587.500
27-2 88880-73RA0-DJQ TRIM,3RD BACK,L (BEIGE/BROWN) 1 Rp497.000
27-3 88880-73RA0-DWG TRIM,3RD BACK,L (BLACK) 1 Rp587.500
28 09387-19001-000 RING (OD:22.6) 3 Rp9.000
29 02142-0510A-000
SUB: 02142B0510AN000		 SCREW 1 Rp4.000
30 03241-0510A-000 SCREW 2 Rp8.000
31 88323-73RA0-000 BOLT,3RD STAY FIX 2 Rp8.500
32-1 88491-73RA0-R8R COVER,3RD MTG (BROWN) 2 Rp8.000
32-2 88491-73RA0-5PK COVER,3RD MTG (BLACK) 2 Rp8.500
33-1 09409-10302-R8R CLIP (BROWN) 4 Rp19.000
33-2 09409-10302-5PK CLIP (BLACK) 4 Rp18.500
34 01551-1020A-000 BOLT 5 Rp18.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
