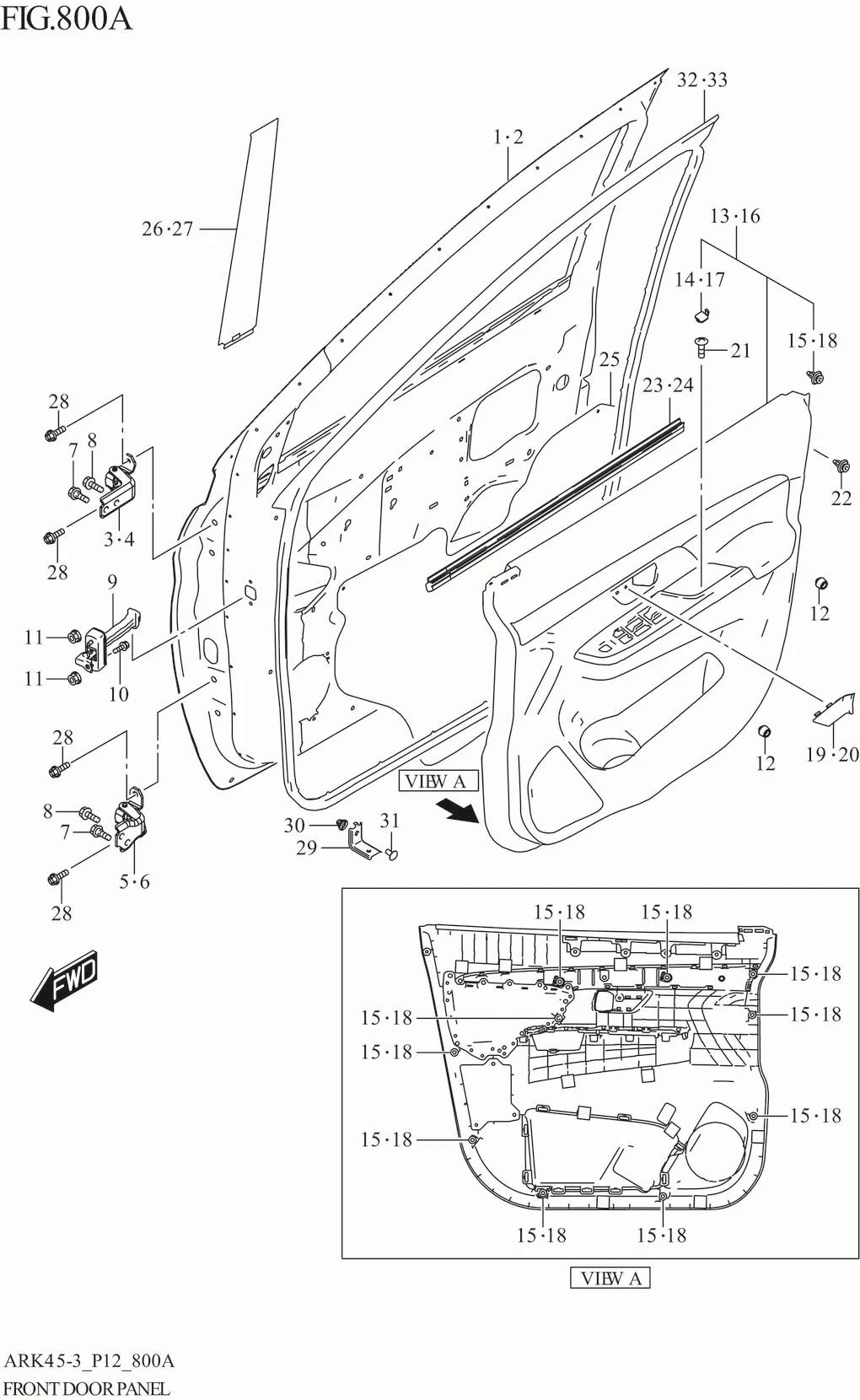

FIG. 800A FRONT DOOR PANEL

FIG. 800A FRONT DOOR PANEL
No No. Part Description Qty Price Per Pcs Remarks
1-1 68001-73R02-000
SUB: 68001-73R00-000		 PANEL ASSY,FR DR,R 1 Rp2.247.000
2-1 68002-73R02-000
SUB: 68002-73R00-000		 PANEL ASSY,FR DR,L 1 Rp2.247.000
3 69310M68L00-000
SUB: 69310B68L00N000		 HINGE,FR DR UPPER,R 1 Rp82.500
4 69320M68L00-000
SUB: 69320B68L00N000		 HINGE,FR DR UPPER,L 1 Rp82.500
5 69330M68L00-000
SUB: 69330B68L00N000		 HINGE,FR DR LOWER,R 1 Rp74.000
6 69340M68L00-000
SUB: 69340B68L00N000		 HINGE,FR DR LOWER,L 1 Rp74.000
7 09113-08001-000 BOLT (8X20) 4 Rp18.500
8 01551-0820A-000 BOLT 4 Rp17.500
9 81830-63RA3-000
SUB: 81830-63RA0-000		 STOP,FRONT DOOR OPEN 2 Rp83.000
10 09112-08015-000 BOLT (8X25) 2 Rp32.000
11 08316-1006A-000 NUT (6X12) 4 Rp2.000
12 82711-51K00-000 CUSHION 4 Rp39.000
13-1 83710-73R00-DD1 TRIM,FR DR,R (BEIGE,BROWN) 1 Rp1.121.500
13-2 83710-73R20-DWQ TRIM,FR DR,R (BLACK,WOOD) 1 Rp2.071.000
14-1 83752-80J00-V6N .CAP,DR INS PULL CASE (BEIGE) 1 Rp58.000
14-2 83752-80J00-5PK .CAP,SIDE DR INS CASE (BLACK) 1 Rp74.000
15 09409-10327-000 .CLIP 10 Rp5.000
16-1 83720-73R00-DD1 TRIM,FR DR,L (BEIGE,BROWN) 1 Rp1.121.500
16-2 83720-73R20-DWQ TRIM,FR DR,L (BLACK,WOOD) 1 Rp2.071.000
17-1 83752-80J00-V6N .CAP,DR INS PULL CASE (BEIGE) 1 Rp58.000
17-2 83752-80J00-5PK .CAP,SIDE DR INS CASE (BLACK) 1 Rp74.000
18 09409-10327-000 .CLIP 10 Rp5.000
19-2 83755-74L00-5PK CAP,INSIDE HDL BEZEL,R (BLACK) 1 Rp24.000
19-1 83755-74L00-V6N
SUB: 83755B74L00NV6N		 CAP,INSIDE HDL BEZEL,R (BEIGE) 1 Rp86.500
20-1 83756-74L00-V6N
SUB: 83756B74L00NV6N		 CAP,INSIDE HDL BEZEL,L (BEIGE) 1 Rp85.500
20-2 83756-74L00-5PK CAP,INSIDE HDL BEZEL,L (BLACK) 1 Rp24.000
21 09132-05058-000 SCREW (5X12) 2 Rp14.000
22-1 09409-06314-V6N CLIP (5.9X20.5,BEIGE) 2 Rp19.500
22-2 09409-06314-5PK CLIP (5.9X20.5,BLACK) 2 Rp3.500
23 83851-73R00-000 WEATHERSTRIP,FR DR INNER,R 1 Rp57.000
24 83861-73R00-000 WEATHERSTRIP,FR DR INNER,L 1 Rp57.000
25 83911-73R00-000 COVER,FR DR SEALING 2 Rp10.000
26-1 83923-73R00-0CB TAPE,FR DR OUTER RR,R (BLACK) 1 Rp34.500
26-2 83923-73R00-0CB TAPE,FR DR OUTER RR,R (BLACK) 1 Rp34.500
27-1 83924-73R00-0CB TAPE,FR DR OUTER RR,L (BLACK) 1 Rp34.500
27-2 83924-73R00-0CB TAPE,FR DR OUTER RR,L (BLACK) 1 Rp34.500
28 09103-08546-000 BOLT (8X24) 8 Rp26.500
29 83751-67P00-000 BRACKET,DR TRIM 2 Rp11.500
30 71851M70F00-000 NUT (M6) 2 Rp4.000
31 03141M0612A-000 SCREW 2 Rp4.500
32 84641-73R00-000 WEATHERSTRIP,FR DR OPNG,R 1 Rp166.000
33 84651-73R00-000 WEATHERSTRIP,FR DR OPNG,L 1 Rp166.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
