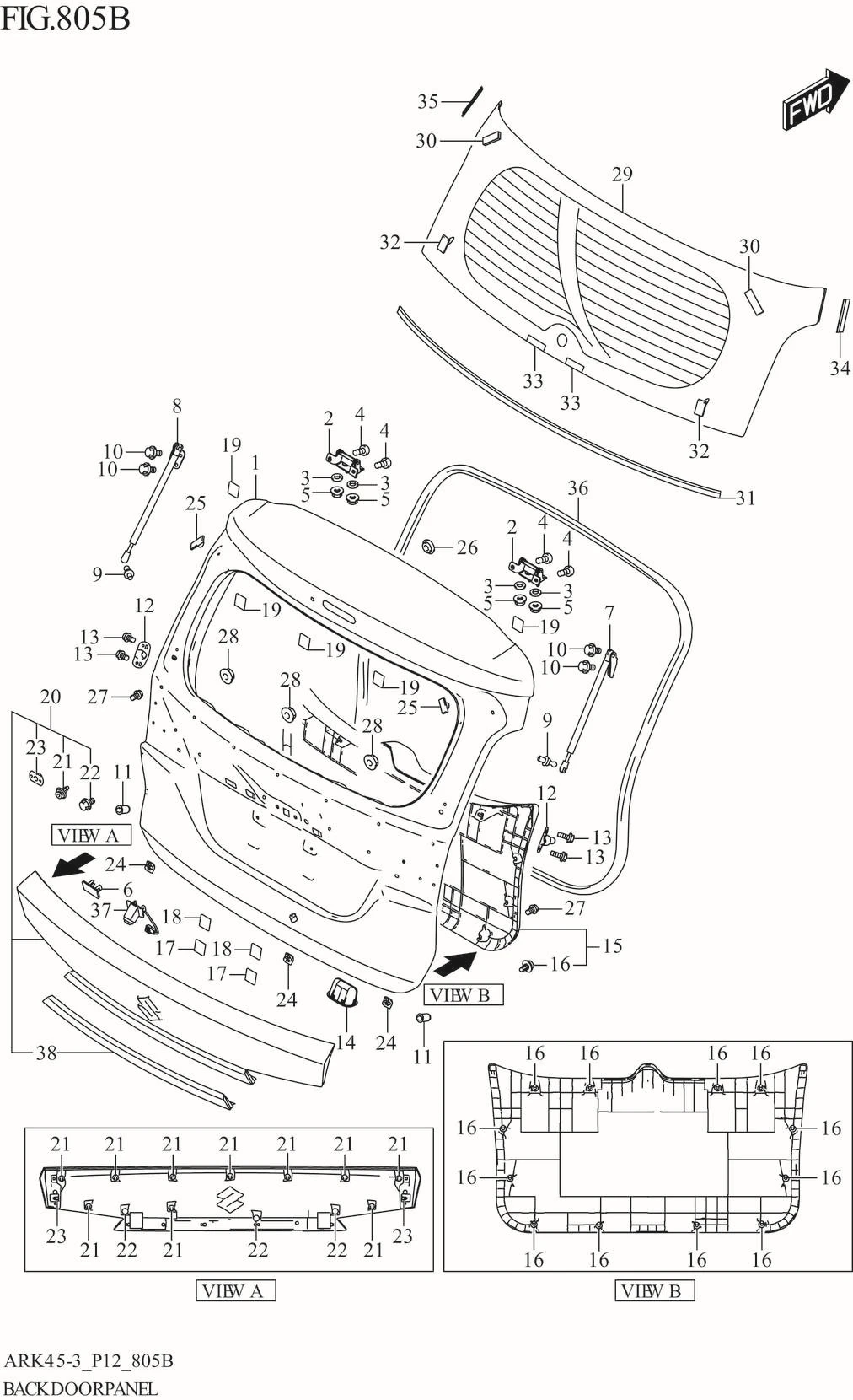

FIG. 805B BACK DOOR PANEL (GL,GX,GX_LTD)

FIG. 805B BACK DOOR PANEL (GL,GX,GX_LTD)
No No. Part Description Qty Price Per Pcs Remarks
1-2 69100-73R21-000
SUB: 69100-73R20-000		 PANEL ASSY,BACK DR 1 Rp2.496.500
1-1 69100-73R11-000
SUB: 69100-73R10-000		 PANEL ASSY,BACK DR 1 Rp2.269.500
2 69510-73R00-000 HINGE,BACK DR 2 Rp49.500
3 69571M76G00-000 .PACKING,BACK DR HNG 4 Rp6.500
4 09111-06086-000 BOLT (6X12) 4 Rp16.000
5 08361-2508A-000 NUT 4 Rp16.500
6 39977M66R00-000 CAP,BACK CAMERA 1 Rp16.000
7 81850M73R00-000 BALANCER,BACK DOOR,R 1 Rp282.000
8 81860M73R00-000 BALANCER,BACK DOOR,L 1 Rp282.000
9 81871M68P01-000 BALLSTUD,BACK DR BALANCER 2 Rp31.000
10 09113-08002-000 BOLT (8X12) 4 Rp25.500
11 82683-73R00-000 CUSHION,BACK DOOR LOWER 2 Rp19.500
12 82760-73R00-000 CUSHION,BACK DOOR SIDE 2 Rp25.000
13 02162-0616B-000 SCREW (6X16) 4 Rp15.500
14 82841-82G02-000
SUB: 82841B82G02N000		 HANDLE,BACK DR INNER 1 Rp7.000
15-1 83770-73R00-V6N TRIM,BACK DR (BEIGE) 1 Rp513.000
16 09409-10327-000 .CLIP 12 Rp5.000
17 44281-29C00-000
SUB: 44281B29C00N000		 CUSHION 2 Rp6.000
18 77151-82000-000
SUB: 77151B82000N000		 FILM 2 Rp7.000
19 77151-82000-000
SUB: 77151B82000N000		 FILM 5 Rp7.000
20-7 83940-73R10-EBL GARNISH,BACK DR LIC (KHAKI,CHROME) 1 Rp807.500
20-6 83940-73R10-ATT GARNISH,BACK DR LIC (RED,CHROME) 1 Rp807.500
20-3 83940-73R10-DCK GARNISH,BACK DR LIC (GRAY,CHROME) 1 Rp788.500
20-5 83940-73R10-ATU GARNISH,BACK DR LIC (RED,CHROME) 1 Rp807.500
20-2 83940-73R10-L8D GARNISH,BACK DR LIC (SILVER,CHROME) 1 Rp788.500
20-1 83940-73R10-B8N GARNISH,BACK DR LIC (WHITE,CHROME) 1 Rp788.500
20-4 83940-73R10-ATR GARNISH,BACK DR LIC (BLACK,CHROME) 1 Rp788.500
21 71812-78F00-000
SUB: 71812B78F00N000		 .CLIP 10 Rp9.000
22 83947-73R00-000 .BOLT,BACK DR GARNISH 3 Rp27.500
23 09146M06003-000 .NUT 2 Rp7.500
24 83994-73R00-000 CAP,BACK DR DRAIN HOLE 3 Rp5.500
25 84515-65D00-000 FEMALE,GLASS FASTENER NO.2 2 Rp45.500
26 09250M20031-000
SUB: 09250M20L02-000		 CAP (OD:25.8) 1 Rp4.500
27 02162-0616B-000 SCREW (6X16) 2 Rp15.500
28 08316-1006A-000 NUT (6X12) 3 Rp2.000
29-1 84571-73R10-000
SUB: 84570-73R10-000		 GLASS,BACK DOOR WINDOW 1 Rp430.000
29-3 84571-73R20-000
SUB: 84570-73R20-000		 GLASS,BACK DOOR WINDOW 1 Rp680.000
30 84513-76F00-000 .MALE,GLASS FASTENER NO.2 2 Rp38.500
32 84575-73R00-000 .CLIP,GLASS FASTENER 2 Rp19.000
33-1 84617M60M00-000 .SPACER 2 Rp4.500
34 84623-73R00-000 .MOLDING,BACK DR WINDOW,R 1 Rp19.000
35 84625-73R00-000 .MOLDING,BACK DR WINDOW,L 1 Rp19.000
36 84681-73R00-000 WEATHERSTRIP,BACK DR OPNG 1 Rp259.500
38 83942-73R10-0PG MOLDING BACK DOOR GARNISH (CHROME) 1 Rp210.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
