  5. FIG. 848B FRONT LH SEAT (GL,GX,GX_LTD)

All New Ertiga Type 3

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 570A FRONT HOOD PANELFIG. 572A TIRE CARRIERFIG. 580A FRONT FENDER PANEL (ERTIGA:(GA,GL))FIG. 580B FRONT FENDER PANEL (ERTIGA:(GX,GX_LTD))FIG. 590A FRONT BODY PANELFIG. 590B FRONT BODY PANELFIG. 600A FLOOR PANELFIG. 640A SIDE BODY PANELFIG. 660A ROOF PANEL (GA)FIG. 660B ROOF PANEL (GL,GX,GX_LTD)FIG. 717A FRONT BUMPERFIG. 718A REAR BUMPERFIG. 721A INSTRUMENT PANEL UPPERFIG. 730A VENTILATOR (GA,GL)FIG. 730B VENTILATOR (GX,GX_LTD)FIG. 732A HEATER UNITFIG. 735A HEATER BLOWER (GA:SEE NOTE)FIG. 735B HEATER BLOWER (GL:SEE NOTE)FIG. 735C HEATER BLOWER (GX,GX_LTD:SEE NOTE)FIG. 736A HEATER DOOR (GA:SEE NOTE)FIG. 736B HEATER DOOR (GL:SEE NOTE)FIG. 736C HEATER DOOR (GX,GX_LTD:SEE NOTE)FIG. 737A EVAPORATOR UNIT (GA,GL:SEE NOTE)FIG. 737B EVAPORATOR UNIT (GX,GX_LTD:SEE NOTE)FIG. 73AA HEATER CONTROL (GA)FIG. 73AB HEATER CONTROL (GL,GX,GX_LTD)FIG. 740A CONSOLE BOX (GA)FIG. 740B CONSOLE BOX (GL)FIG. 740C CONSOLE BOX (GX,GX_LTD)FIG. 741A FLOOR CARPETFIG. 745A INTERIOR TRIMFIG. 750A COVER/CAPFIG. 755A FUEL LID OPENERFIG. 757A ROOF SIDE PADFIG. 760A ROOF LININGFIG. 772A MOLDINGFIG. 774A SPLASH GUARDFIG. 780A EMBLEMFIG. 790A WINDSHIELDFIG. 800A FRONT DOOR PANELFIG. 801A REAR DOOR PANELFIG. 805A BACK DOOR PANEL (GA)FIG. 805B BACK DOOR PANEL (GL,GX,GX_LTD)FIG. 810A FRONT DOOR REGULATORFIG. 811A REAR DOOR REGULATORFIG. 820A FRONT DOOR LOCK (GA)FIG. 820B FRONT DOOR LOCK (GL)FIG. 820C FRONT DOOR LOCK (GX,GX_LTD)FIG. 821A REAR DOOR LOCK (GA,GL)FIG. 821B REAR DOOR LOCK (GX,GX_LTD)FIG. 824A BACK DOOR LOCKFIG. 835A MIRROR/SUNVISOR (GA)FIG. 835B MIRROR/SUNVISOR (GL)FIG. 835C MIRROR/SUNVISOR (GX,GX_LTD)FIG. 841A FRONT SEAT BELTFIG. 843A 2ND SEAT BELTFIG. 844A 3RD SEAT BELTFIG. 848A FRONT LH SEAT (GA)FIG. 848B FRONT LH SEAT (GL,GX,GX_LTD)FIG. 849A FRONT RH SEAT (GA,GL)FIG. 849B FRONT RH SEAT (GX,GX_LTD)FIG. 854A 2ND RH SEAT (GA)FIG. 854B 2ND RH SEAT (GL,GX,GX_LTD)FIG. 855A 2ND LH SEATFIG. 857A 3RD RH SEATFIG. 858A 3RD LH SEATFIG. 865A FUEL TANKFIG. 893A TOOLFIG. 960A CONDENSERFIG. 968A FRONT A/C PIPING (GA)FIG. 968B FRONT A/C PIPING (GL,GX,GX_LTD)FIG. 970A REAR A/C PIPING (GL,GX,GX_LTD)FIG. 972A COOLING UNIT (GL,GX,GX_LTD)FIG. 990A COMPRESSORFIG. 990HA ACCESSORIESFIG. 722A INSTRUMENT PANEL LOWER

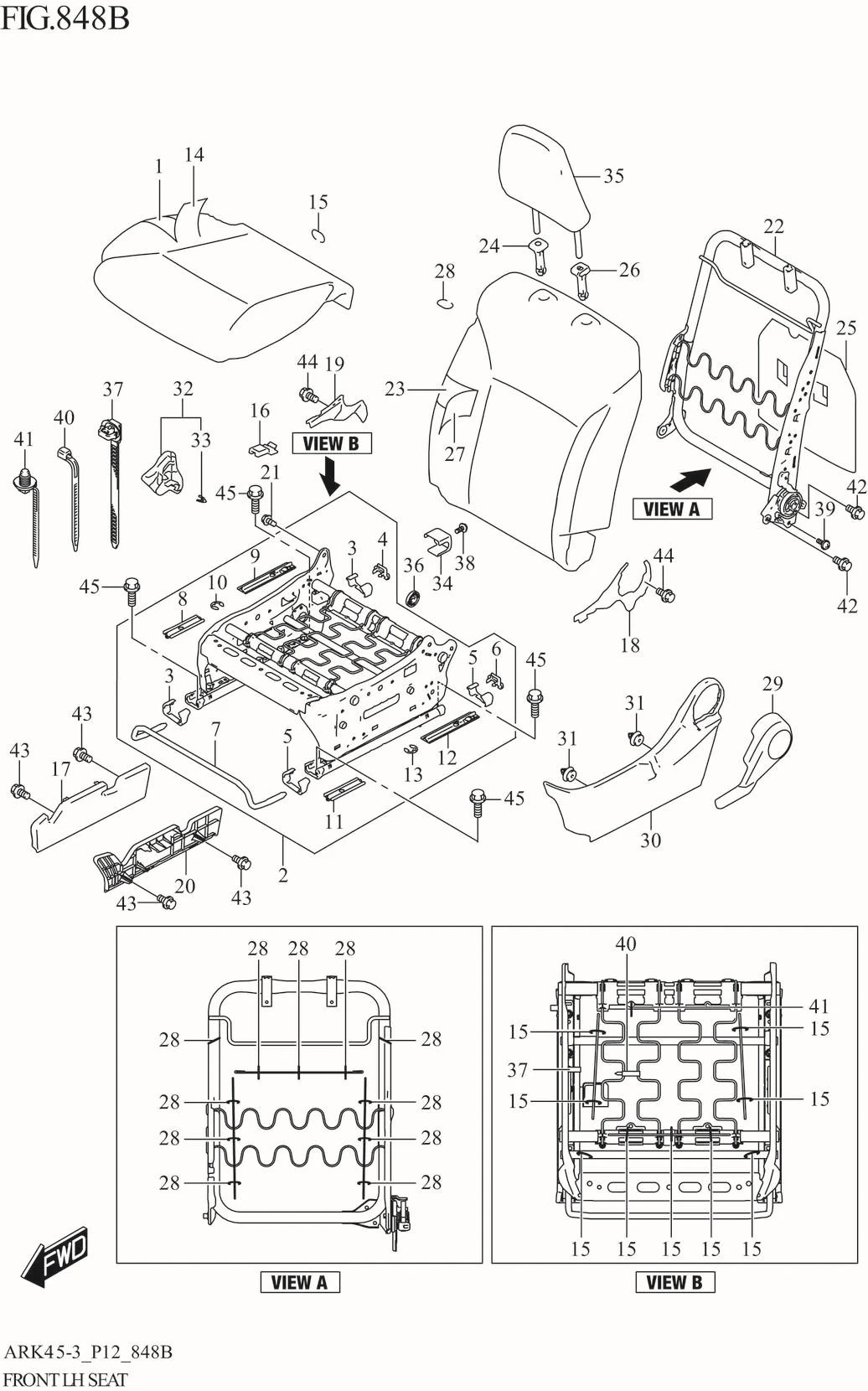

FIG. 848B FRONT LH SEAT (GL,GX,GX_LTD)

FIG. 848B FRONT LH SEAT (GL,GX,GX_LTD)
No No. Part Description Qty Price Per Pcs Remarks
1 85107-73R00-000 PAD S/ASSY,FR CUSH 1 Rp495.000
2 85603-73R10-000 FRAME ASSY,FR CUSH,L 1 Rp2.561.500
3 86652M74P50-000 .CAP,FR ADJ LWR 2 Rp5.500
4 86653M74P50-000 .CAP,FR ADJ UPR 1 Rp5.500
5 86652M74P50-000 .CAP,FR ADJ LWR 2 Rp5.500
6 86653M74P50-000 .CAP,FR ADJ UPR 1 Rp5.500
7 86691-73R00-000 .HANDLE,FR SEAT ADJUSTER 1 Rp130.500
8 86656-74P50-000 .PROTECTOR,FR ADJ FR 1 Rp8.500
9 86657-68P00-000 .PROTECTOR,FR ADJUSTER REAR 1 Rp10.000
10 86658-68P00-000 .RING,FR ADJUSTER REAR 1 Rp6.500
11 86656-74P50-000 .PROTECTOR,FR ADJ FR 1 Rp8.500
12 86657-68P00-000 .PROTECTOR,FR ADJUSTER REAR 1 Rp10.000
13 86658-68P00-000 .RING,FR ADJUSTER REAR 1 Rp6.500
14-2 85680-73R00-DWG TRIM,FR CUSH,L (BLACK) 1 Rp640.500
14-1 85680-73R00-DHQ TRIM,FR CUSH,L (BEIGE/BROWN) 1 Rp655.500
15 09387-19001-000 RING (OD:22.6) 9 Rp9.000
16 85192-74P00-000 HOLDER,HARNESS 1 Rp6.500
17 85223-73R00-000 COVER,FR RISER,R 1 Rp19.000
18-1 85242-68P00-V6N COVER,RCLNG LWR (BEIGE) 1 Rp10.000
18-2 85242-68P00-5PK COVER,FR RCLNG INS LWR,L (BLACK) 1 Rp10.500
19-1 85242-73R00-V6N COVER,RCLNG INS LWR,L (BEIGE) 1 Rp88.000
19-2 85242-73R00-5PK COVER,RCLNG INS LWR,L (BLACK) 1 Rp8.000
20 85243-73R00-000 COVER,FR RISER,L 1 Rp20.500
21 85295-58J01-000 BOLT,FR BACK FIX 1 Rp34.000
22 85803-73R00-000 FRAME ASSY,FR BACK,L 1 Rp1.012.000
23 85860-73R00-000 PAD,FR BACK,L 1 Rp346.000
24-2 85341-73R00-P4Z GUIDE,HEADRESTRAINT (GRAY) 1 Rp53.000
24-1 85341-73R00-V6N GUIDE,HEADRESTRAINT (BEIGE) 1 Rp49.000
25 85369-74L00-000 SILENCER,FR BACK 1 Rp40.000
26-1 85840-73R00-V6N GUIDE,HEADRESTRAINT (BEIGE) 1 Rp49.000
26-2 85840-73R00-P4Z GUIDE,HEADRESTRAINT (GRAY) 1 Rp53.000
27-1 85880-73R10-DHQ TRIM,FR BACK,L (BEIGE/BROWN) 1 Rp2.327.000
27-2 85880-73R10-DWG TRIM,FR BACK,L (BLACK) 1 Rp2.327.000
28 09387-19001-000 RING (OD:22.6) 11 Rp9.000
29-1 85711-62R00-V6N KNOB,RCLNG,L (BEIGE) 1 Rp70.500
29-2 85711-62R00-5PK KNOB,RCLNG,L (BLACK) 1 Rp86.000
30-1 85721-73R00-V6N COVER,FR RCLNG OUT,R (BEIGE) 1 Rp111.000
30-2 85721-73R00-5PK COVER,FR RCLNG OUT,R (BLACK) 1 Rp49.000
31 09409-10313-000 CLIP 2 Rp14.000
32-1 85741-68P10-V6N COVER,RCLNG INS,L (BEIGE) 1 Rp10.000
32-2 85741-68P10-5PK COVER,RCLNG INS,L (BLACK) 1 Rp11.500
33 85249M68P00-000 .CLIP 1 Rp9.500
34 85780-81P00-000 COVER,FR HARNESS BRACKET,L 1 Rp6.500
35-1 86401-73R00-DJV HEADRESTRAINT ASSY (BEIGE) 1 Rp747.000
35-2 86401-73R00-DWH HEADRESTRAINT ASSY (BLACK) 1 Rp730.500
36 87286-81P00-000 BUSH,FR BACK FIX 1 Rp37.000
37 96619-59L00-000 CLAMP 1 Rp24.500
38 09132-04037-000 SCREW (4X10) 1 Rp15.000
39 09132-04037-000 SCREW (4X10) 1 Rp15.000
40 36990-25G00-000 CLAMP (L:125) 1 Rp13.000
41 09407-17403-000 CLAMP (L:154) 1 Rp3.500
42 01550-1016A-000
SUB: 01550B1016AN000		 BOLT (10X16) 2 Rp5.500
43 03541-0410A-000 SCREW 4 Rp11.000
44 03541-0410A-000 SCREW 2 Rp11.000
45 09119-08107-000 BOLT (8X25) 4 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
