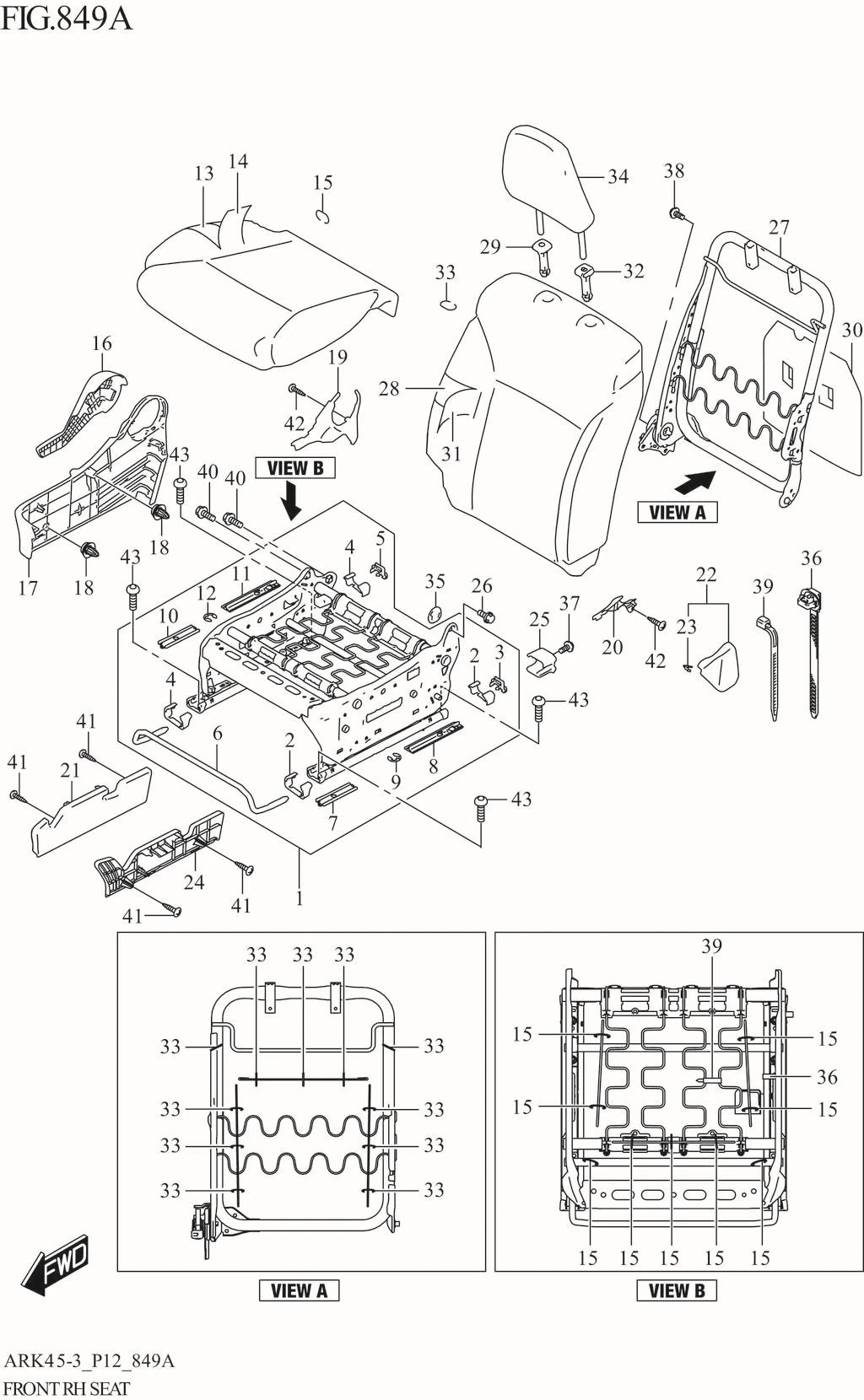

FIG. 849A FRONT RH SEAT (GA,GL)

FIG. 849A FRONT RH SEAT (GA,GL)
No No. Part Description Qty Price Per Pcs Remarks
1 85103-73R10-000 FRAME ASSY,FR CUSH,R 1 Rp1.953.500
2 86652M74P50-000 .CAP,FR ADJ LWR 2 Rp5.500
3 86653M74P50-000 .CAP,FR ADJ UPR 1 Rp5.500
4 86652M74P50-000 .CAP,FR ADJ LWR 2 Rp5.500
5 86653M74P50-000 .CAP,FR ADJ UPR 1 Rp5.500
6 86691-73R00-000 .HANDLE,FR SEAT ADJUSTER 1 Rp130.500
7 86656-74P50-000 .PROTECTOR,FR ADJ FR 1 Rp8.500
8 86657-68P00-000 .PROTECTOR,FR ADJUSTER REAR 1 Rp10.000
9 86658-68P00-000 .RING,FR ADJUSTER REAR 1 Rp6.500
10 86656-74P50-000 .PROTECTOR,FR ADJ FR 1 Rp8.500
11 86657-68P00-000 .PROTECTOR,FR ADJUSTER REAR 1 Rp10.000
12 86658-68P00-000 .RING,FR ADJUSTER REAR 1 Rp6.500
13 85160-73R10-000 PAD,FR CUSH 1 Rp338.500
14-1 85180-73R00-DF1 TRIM,FR CUSH,R (BEIGE) 1 Rp570.500
14-2 85180-73R00-DHQ TRIM,FR CUSH,R (BEIGE/BROWN) 1 Rp655.500
15 09387-19001-000 RING (OD:22.6) 9 Rp9.000
16 85211-62R00-V6N KNOB,RCLNG,R (BEIGE) 1 Rp70.500
17 85221-73R00-V6N COVER,RCLNG OUTSIDE,R (BEIGE) 1 Rp107.000
18 09409-10313-000 CLIP 2 Rp14.000
19 85222-68P00-V6N COVER,RCLNG LWR (BEIGE) 1 Rp10.000
20 85222-73R00-V6N COVER,RCLNG INS LWR,R (BEIGE) 1 Rp86.000
21 85223-73R00-000 COVER,FR RISER,R 1 Rp19.000
22 85241-68P10-V6N COVER,FR RCLNG INS,R (BEIGE) 1 Rp10.000
23 85249M68P00-000 .CLIP 1 Rp9.500
24 85243-73R00-000 COVER,FR RISER,L 1 Rp20.500
25 85280-81P00-000 COVER,FR HARNESS BRACKET 1 Rp6.500
26 85295-58J01-000 BOLT,FR BACK FIX 1 Rp34.000
27 85303-73R00-000 FRAME ASSY,FR BACK,R 1 Rp1.012.000
28 85360-73R00-000 PAD,FR BACK,R 1 Rp346.000
29 85341-73R00-V6N GUIDE,HEADRESTRAINT (BEIGE) 1 Rp49.000
30 85369-74L00-000 SILENCER,FR BACK 1 Rp40.000
31-1 85380-73R00-DF1 TRIM,FR BACK,R (BEIGE) 1 Rp1.376.500
31-2 85380-73R00-DHQ TRIM,FR BACK,R (BEIGE/BROWN) 1 Rp2.327.000
32 85840-73R00-V6N GUIDE,HEADRESTRAINT (BEIGE) 1 Rp49.000
33 09387-19001-000 RING (OD:22.6) 11 Rp9.000
34-1 86401-73R00-WCV HEADRESTRAINT ASSY (BEIGE) 1 Rp364.500
34-2 86401-73R00-DJV HEADRESTRAINT ASSY (BEIGE) 1 Rp747.000
35 87286-81P00-000 BUSH,FR BACK FIX 1 Rp37.000
36 96619-59L00-000 CLAMP 1 Rp24.500
37 09132-04037-000 SCREW (4X10) 1 Rp15.000
38 09132-04037-000 SCREW (4X10) 1 Rp15.000
39 36990-25G00-000 CLAMP (L:125) 1 Rp13.000
40 01550-1016A-000
SUB: 01550B1016AN000		 BOLT (10X16) 2 Rp5.500
41 03541-0410A-000 SCREW 4 Rp11.000
42 03541-0410A-000 SCREW 2 Rp11.000
43 09119-08107-000 BOLT (8X25) 4 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
