All New Ertiga Type 3

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 570A FRONT HOOD PANELFIG. 572A TIRE CARRIERFIG. 580A FRONT FENDER PANEL (ERTIGA:(GA,GL))FIG. 580B FRONT FENDER PANEL (ERTIGA:(GX,GX_LTD))FIG. 590A FRONT BODY PANELFIG. 590B FRONT BODY PANELFIG. 600A FLOOR PANELFIG. 640A SIDE BODY PANELFIG. 660A ROOF PANEL (GA)FIG. 660B ROOF PANEL (GL,GX,GX_LTD)FIG. 717A FRONT BUMPERFIG. 718A REAR BUMPERFIG. 721A INSTRUMENT PANEL UPPERFIG. 730A VENTILATOR (GA,GL)FIG. 730B VENTILATOR (GX,GX_LTD)FIG. 732A HEATER UNITFIG. 735A HEATER BLOWER (GA:SEE NOTE)FIG. 735B HEATER BLOWER (GL:SEE NOTE)FIG. 735C HEATER BLOWER (GX,GX_LTD:SEE NOTE)FIG. 736A HEATER DOOR (GA:SEE NOTE)FIG. 736B HEATER DOOR (GL:SEE NOTE)FIG. 736C HEATER DOOR (GX,GX_LTD:SEE NOTE)FIG. 737A EVAPORATOR UNIT (GA,GL:SEE NOTE)FIG. 737B EVAPORATOR UNIT (GX,GX_LTD:SEE NOTE)FIG. 73AA HEATER CONTROL (GA)FIG. 73AB HEATER CONTROL (GL,GX,GX_LTD)FIG. 740A CONSOLE BOX (GA)FIG. 740B CONSOLE BOX (GL)FIG. 740C CONSOLE BOX (GX,GX_LTD)FIG. 741A FLOOR CARPETFIG. 745A INTERIOR TRIMFIG. 750A COVER/CAPFIG. 755A FUEL LID OPENERFIG. 757A ROOF SIDE PADFIG. 760A ROOF LININGFIG. 772A MOLDINGFIG. 774A SPLASH GUARDFIG. 780A EMBLEMFIG. 790A WINDSHIELDFIG. 800A FRONT DOOR PANELFIG. 801A REAR DOOR PANELFIG. 805A BACK DOOR PANEL (GA)FIG. 805B BACK DOOR PANEL (GL,GX,GX_LTD)FIG. 810A FRONT DOOR REGULATORFIG. 811A REAR DOOR REGULATORFIG. 820A FRONT DOOR LOCK (GA)FIG. 820B FRONT DOOR LOCK (GL)FIG. 820C FRONT DOOR LOCK (GX,GX_LTD)FIG. 821A REAR DOOR LOCK (GA,GL)FIG. 821B REAR DOOR LOCK (GX,GX_LTD)FIG. 824A BACK DOOR LOCKFIG. 835A MIRROR/SUNVISOR (GA)FIG. 835B MIRROR/SUNVISOR (GL)FIG. 835C MIRROR/SUNVISOR (GX,GX_LTD)FIG. 841A FRONT SEAT BELTFIG. 843A 2ND SEAT BELTFIG. 844A 3RD SEAT BELTFIG. 848A FRONT LH SEAT (GA)FIG. 848B FRONT LH SEAT (GL,GX,GX_LTD)FIG. 849A FRONT RH SEAT (GA,GL)FIG. 849B FRONT RH SEAT (GX,GX_LTD)FIG. 854A 2ND RH SEAT (GA)FIG. 854B 2ND RH SEAT (GL,GX,GX_LTD)FIG. 855A 2ND LH SEATFIG. 857A 3RD RH SEATFIG. 858A 3RD LH SEATFIG. 865A FUEL TANKFIG. 893A TOOLFIG. 960A CONDENSERFIG. 968A FRONT A/C PIPING (GA)FIG. 968B FRONT A/C PIPING (GL,GX,GX_LTD)FIG. 970A REAR A/C PIPING (GL,GX,GX_LTD)FIG. 972A COOLING UNIT (GL,GX,GX_LTD)FIG. 990A COMPRESSORFIG. 990HA ACCESSORIESFIG. 722A INSTRUMENT PANEL LOWER

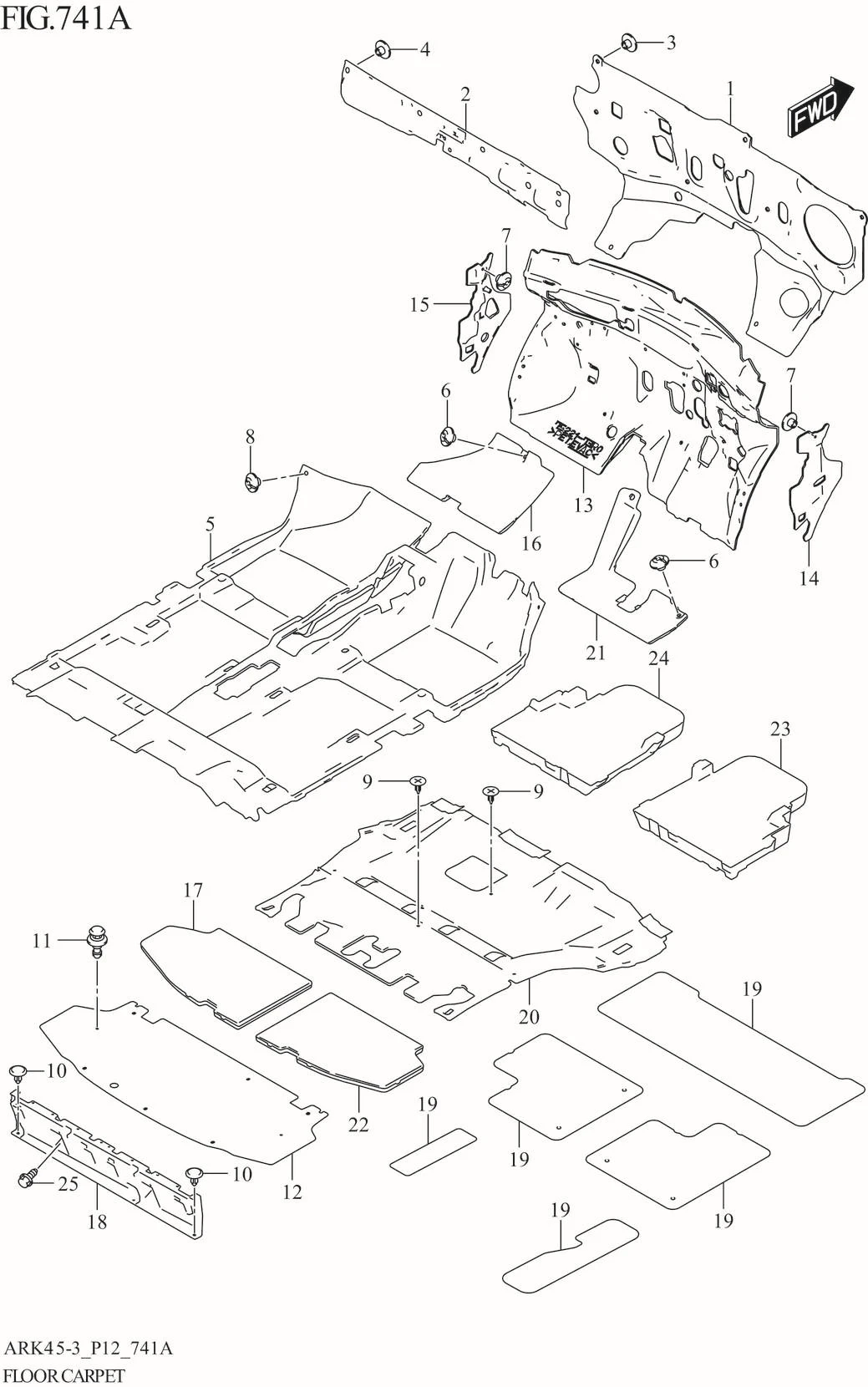

FIG. 741A FLOOR CARPET

FIG. 741A FLOOR CARPET
No No. Part Description Qty Price Per Pcs Remarks
1 72450-73R01-000
SUB: 72450-73R00-000		 SILENCER,DASH OUTER 1 -
2 72490-73R00-000 SILENCER,COWL FRONT 1 Rp407.000
3 09148-05037-000 CLIP (M5) 3 Rp18.000
4 09148-05037-000 CLIP (M5) 7 Rp18.000
5-1 75110-73R01-PZD
SUB: 75110-73R00-PZD		 CARPET,FRONT FLOOR (BROWN) 1 Rp856.000
5-2 75110-73R11-PZD
SUB: 75110-73R10-PZD		 CARPET,FRONT FLOOR (BROWN) 1 Rp878.500
5-3 75110-73R01-R3F
SUB: 75110-73R00-R3F		 CARPET,FRONT FLOOR (BLACK) 1 Rp851.000
5-4 75110-73R11-R3F
SUB: 75110-73R10-R3F		 CARPET,FRONT FLOOR (BLACK) 1 Rp878.500
6 09148-05037-000 CLIP (M5) 2 Rp18.000
7 09148-05037-000 CLIP (M5) 5 Rp18.000
8 09148-05037-000 CLIP (M5) 2 Rp18.000
9-1 09409-10302-R8R CLIP (BROWN) 5 Rp19.000
9-2 09409-10302-5PK CLIP (BLACK) 5 Rp18.500
10-1 09409-07340-R8R CLIP (BROWN) 2 Rp18.500
10-2 09409-07340-000 CLIP (6.8X11.5) 2 Rp17.500
11-1 09409-07340-R8R CLIP (BROWN) 3 Rp18.500
11-2 09409-07340-000 CLIP (6.8X11.5) 3 Rp17.500
12-2 75130-73R00-R3F CARPET,LUGGAGE FLOOR (BLACK) 1 Rp743.500
12-1 75130-73R00-PZD CARPET,LUGGAGE FLOOR (BROWN) 1 Rp681.000
13-1 75221-73R00-000 SILENCER,DASH PANEL INNER 1 Rp1.232.500
13-2 75221-73R10-000 SILENCER,DASH PANEL INNER 1 Rp1.232.500
14 75222-73R00-000 SILENCER,DASH SIDE PANEL,R 1 Rp206.500
15 75223-73R00-000 SILENCER,DASH SIDE PANEL,L 1 Rp206.500
16 75412-73R00-000 PAD,DASH LOWER,L 1 Rp76.500
17-1 75471-73R01-PZD
SUB: 75471-73R00-PZD		 BOARD,LUGGAGE FLOOR,L (BROWN) 1 Rp313.500
17-2 75471-73R01-R3F
SUB: 75471-73R00-R3F		 BOARD,LUGGAGE FLOOR,L (BLACK) 1 Rp338.000
18-2 75481-73R00-5PK SUPPORT,LUGGAGE FLOOR BOARD (BLACK) 1 Rp356.500
18-1 75481-73R00-R8R SUPPORT,LUGGAGE FLOOR BOARD (BROWN) 1 Rp356.500
19 99611-60A01-000 SHEET,SILENCER (800X1000X3) 0 Rp1.210.000
20-1 75121-73R11-PZD
SUB: 75121-73R10-PZD		 CARPET,REAR FLOOR (BROWN) 1 Rp529.000
20-2 75121-73R11-R3F
SUB: 75121-73R10-R3F		 CARPET,REAR FLOOR (BLACK) 1 Rp524.000
21 75411-73R00-000 PAD,DASH LOWER,R 1 Rp69.000
22-1 75461-73R01-PZD
SUB: 75461-73R00-PZD		 BOARD,LUGGAGE FLOOR,R (BROWN) 1 Rp321.000
22-2 75461-73R01-R3F
SUB: 75461-73R00-R3F		 BOARD,LUGGAGE FLOOR,R (BLACK) 1 Rp338.000
23 75531-73R00-000 PAD,MAIN FLOOR UPR RR,R 1 Rp169.500
24 75541-73R00-000 PAD,MAIN FLOOR UPR RR,L 1 Rp169.500
25 09103-06283-000 BOLT (6X16) 6 Rp20.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
