All New Ertiga Type 3

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 570A FRONT HOOD PANELFIG. 572A TIRE CARRIERFIG. 580A FRONT FENDER PANEL (ERTIGA:(GA,GL))FIG. 580B FRONT FENDER PANEL (ERTIGA:(GX,GX_LTD))FIG. 590A FRONT BODY PANELFIG. 590B FRONT BODY PANELFIG. 600A FLOOR PANELFIG. 640A SIDE BODY PANELFIG. 660A ROOF PANEL (GA)FIG. 660B ROOF PANEL (GL,GX,GX_LTD)FIG. 717A FRONT BUMPERFIG. 718A REAR BUMPERFIG. 721A INSTRUMENT PANEL UPPERFIG. 730A VENTILATOR (GA,GL)FIG. 730B VENTILATOR (GX,GX_LTD)FIG. 732A HEATER UNITFIG. 735A HEATER BLOWER (GA:SEE NOTE)FIG. 735B HEATER BLOWER (GL:SEE NOTE)FIG. 735C HEATER BLOWER (GX,GX_LTD:SEE NOTE)FIG. 736A HEATER DOOR (GA:SEE NOTE)FIG. 736B HEATER DOOR (GL:SEE NOTE)FIG. 736C HEATER DOOR (GX,GX_LTD:SEE NOTE)FIG. 737A EVAPORATOR UNIT (GA,GL:SEE NOTE)FIG. 737B EVAPORATOR UNIT (GX,GX_LTD:SEE NOTE)FIG. 73AA HEATER CONTROL (GA)FIG. 73AB HEATER CONTROL (GL,GX,GX_LTD)FIG. 740A CONSOLE BOX (GA)FIG. 740B CONSOLE BOX (GL)FIG. 740C CONSOLE BOX (GX,GX_LTD)FIG. 741A FLOOR CARPETFIG. 745A INTERIOR TRIMFIG. 750A COVER/CAPFIG. 755A FUEL LID OPENERFIG. 757A ROOF SIDE PADFIG. 760A ROOF LININGFIG. 772A MOLDINGFIG. 774A SPLASH GUARDFIG. 780A EMBLEMFIG. 790A WINDSHIELDFIG. 800A FRONT DOOR PANELFIG. 801A REAR DOOR PANELFIG. 805A BACK DOOR PANEL (GA)FIG. 805B BACK DOOR PANEL (GL,GX,GX_LTD)FIG. 810A FRONT DOOR REGULATORFIG. 811A REAR DOOR REGULATORFIG. 820A FRONT DOOR LOCK (GA)FIG. 820B FRONT DOOR LOCK (GL)FIG. 820C FRONT DOOR LOCK (GX,GX_LTD)FIG. 821A REAR DOOR LOCK (GA,GL)FIG. 821B REAR DOOR LOCK (GX,GX_LTD)FIG. 824A BACK DOOR LOCKFIG. 835A MIRROR/SUNVISOR (GA)FIG. 835B MIRROR/SUNVISOR (GL)FIG. 835C MIRROR/SUNVISOR (GX,GX_LTD)FIG. 841A FRONT SEAT BELTFIG. 843A 2ND SEAT BELTFIG. 844A 3RD SEAT BELTFIG. 848A FRONT LH SEAT (GA)FIG. 848B FRONT LH SEAT (GL,GX,GX_LTD)FIG. 849A FRONT RH SEAT (GA,GL)FIG. 849B FRONT RH SEAT (GX,GX_LTD)FIG. 854A 2ND RH SEAT (GA)FIG. 854B 2ND RH SEAT (GL,GX,GX_LTD)FIG. 855A 2ND LH SEATFIG. 857A 3RD RH SEATFIG. 858A 3RD LH SEATFIG. 865A FUEL TANKFIG. 893A TOOLFIG. 960A CONDENSERFIG. 968A FRONT A/C PIPING (GA)FIG. 968B FRONT A/C PIPING (GL,GX,GX_LTD)FIG. 970A REAR A/C PIPING (GL,GX,GX_LTD)FIG. 972A COOLING UNIT (GL,GX,GX_LTD)FIG. 990A COMPRESSORFIG. 990HA ACCESSORIESFIG. 722A INSTRUMENT PANEL LOWER

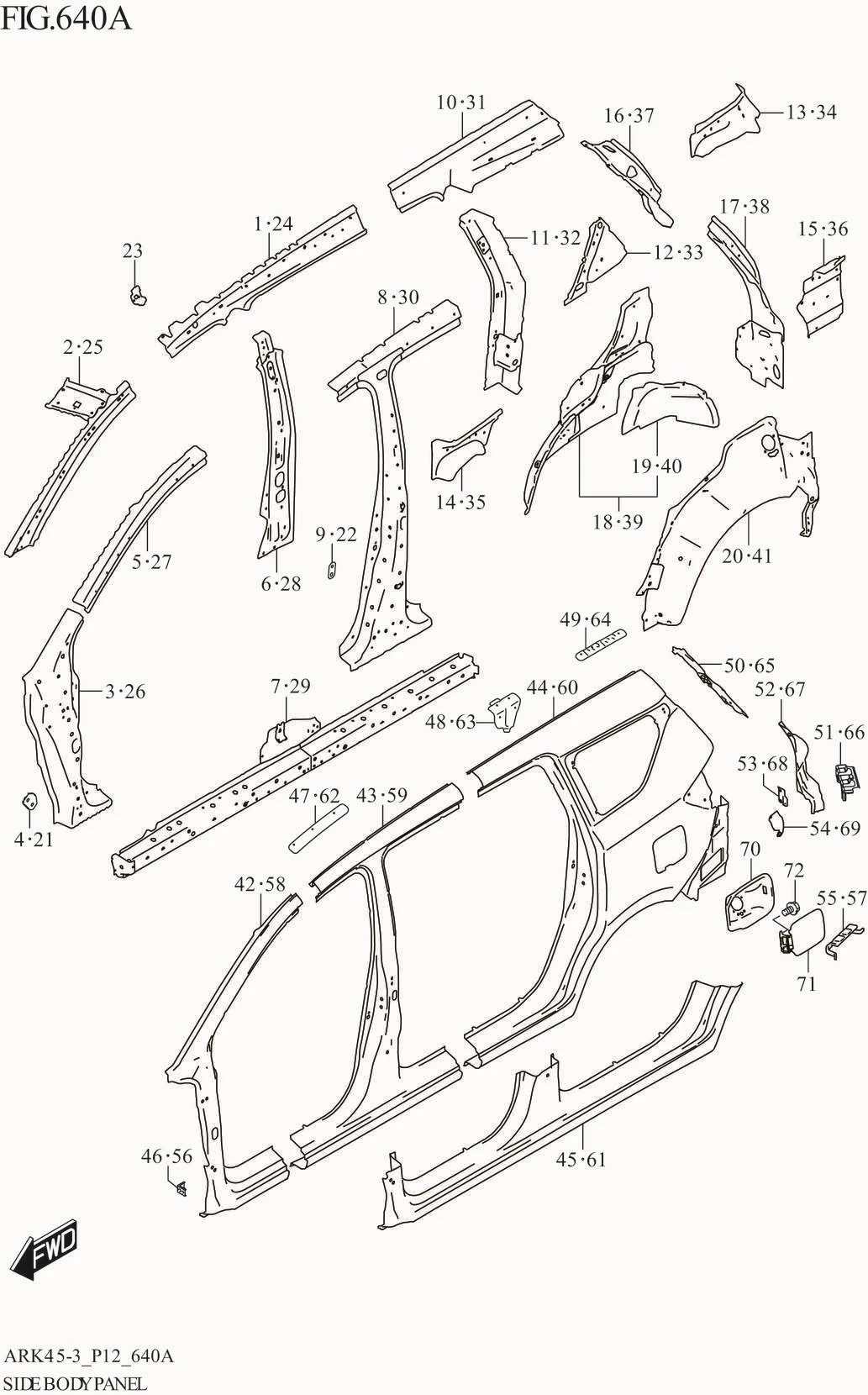

FIG. 640A SIDE BODY PANEL

FIG. 640A SIDE BODY PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 63121-72R00-000 RAIL,ROOF SIDE INNER,R 1 Rp183.000
2 63130-73R00-000
SUB: 63130-72R00-000		 PANEL,FR PLR INR UPPER,R 1 Rp230.500
3 63140-73R00-000 REINF,FR DR HINGE,R 1 Rp999.500
4 63144M76M00-000 RETAINER,FR DR HINGE LWR 2 Rp9.500
5 63151-73R00-000 REINF,FR PILLAR UPPER,R 1 Rp305.500
6 63210-73R00-000 PANEL,CTR PILLAR INNER,R 1 Rp122.000
7 63220-73R00-000 STRENGTH,SIDE SILL,R 1 Rp865.000
8 63230-73R00-000 REINF,CTR PILLAR,R 1 Rp618.500
9 63243M74P00-000 RETAINER,RR DR HINGE 2 Rp8.500
10-1 63311-72R00-000 PANEL,QTR INNER UPPER,R 1 Rp292.500
11 63320-73R00-000 REINF,QTR INNER FR,R 1 Rp531.500
12 63341-73R00-000 REINF,QTR WINDOW RR,R 1 Rp307.000
13 63342-73R00-000 MEMBER,QTR WINDOW LOWER RR,R 1 Rp108.500
14 63343-73R00-000 MEMBER,QTR WINDOW LOWER FR,R 1 Rp92.000
15 63350-73R00-000 PANEL,QTR INNER LOWER,R 1 Rp111.500
16 63360-73R00-000 EXTENSION,QTR INR UPPER,R 1 Rp250.000
17 63370-73R00-000 PANEL,RR LAMP HOUSE INR,R 1 Rp337.500
18 63410-73R00-000 PANEL,WHEEL HOUSE INNER,R 1 Rp888.500
19 63412-73R00-000 .PANEL,WHEEL HOUSE INNER RR,R 1 Rp867.500
20 63480-73R00-000 PANEL,WHEEL HOUSE OUTER,R 1 Rp422.500
21 63144M76M00-000 RETAINER,FR DR HINGE LWR 2 Rp9.500
22 63243M74P00-000 RETAINER,RR DR HINGE 2 Rp8.500
23 63122-72R00-000 BRACKET,ASSISTANT GRIP 2 Rp11.500
24 63521-72R00-000 RAIL,ROOF SIDE INNER,L 1 Rp183.000
25 63530-73R00-000 PANEL,FR PLR INR UPPER,L 1 Rp231.000
26 63540-73R00-000 REINF,FR DR HINGE,L 1 Rp944.500
27 63551-73R00-000 REINF,FR PILLAR UPPER,L 1 Rp305.500
28 63610-73R00-000 PANEL,CTR PILLAR INNER,L 1 Rp122.000
29 63620-73R00-000 STRENGTH,SIDE SILL,L 1 Rp865.000
30 63630-73R00-000 REINF,CTR PILLAR,L 1 Rp618.500
31-1 63711-72R00-000 PANEL,QTR INNER UPPER,L 1 Rp292.500
32 63720-73R00-000 REINF,QTR INNER FR,L 1 Rp531.500
33 63741-72R00-000 REINF,QTR WINDOW RR,L 1 Rp307.000
34 63742-73R00-000 MEMBER,QTR WINDOW LOWER RR,L 1 Rp108.500
35 63743-73R00-000 MEMBER,QTR WINDOW LOWER FR,L 1 Rp90.000
36 63751-73R00-000 PANEL,QTR INNER LOWER,L 1 Rp114.000
37 63760-73R00-000 EXTENSION,QTR INR UPPER,L 1 Rp250.000
38 63770-73R00-000 PANEL,RR LAMP HOUSE INR,L 1 Rp337.500
39 63810-73R00-000 PANEL,WHEEL HOUSE INNER,L 1 Rp888.500
40 63812-73R00-000 .PANEL,WHEEL HOUSE INNER RR,L 1 Rp512.500
41 63880-73R00-000 PANEL,WHEEL HOUSE OUTER,L 1 Rp422.500
42-1 64111-73R00-P11 PANEL,A-PILLAR,R 1 Rp4.191.000
43-1 64111-73R00-P21 PANEL,B-PILLAR,R 1 Rp4.291.500
44-1 64111-73R00-P31 PANEL,QUARTER,R 1 Rp4.191.000
45-1 64111-73R00-P41 PANEL,SIDE SILL,R 1 Rp4.291.500
46 64112-72R00-000 BRACKET,FR FENDER 1 Rp7.500
50 64120-73R00-000 EXTENSION,SIDE BODY OTR,R 1 Rp247.000
51 64122-79M00-000 .HOLDER,RR BUMPER RR 1 Rp21.500
52 64131-73R01-000 PANEL,RR LAMP HOUSE OUTER,R 1 Rp197.500
53 64132-73R00-000 REINF,SHUT STOPPER,R 1 Rp37.500
54 64151-73R00-000 EXTENSION,RR LAMP HOUSE OTR,R 1 Rp11.500
55 64141-73R10-000
SUB: 64141-73R00-000		 COVER,VENTILATOR OUTLET 1 Rp164.000
56 64112-72R00-000 BRACKET,FR FENDER 1 Rp7.500
57 64141-73R10-000
SUB: 64141-73R00-000		 COVER,VENTILATOR OUTLET 1 Rp164.000
58-1 64511-72R00-P11 PANEL,A-PILLAR,L 1 Rp4.191.000
59-1 64511-72R00-P21 PANEL,B-PILLAR,L 1 Rp4.291.500
60-1 64511-72R00-P31 PANEL,QUARTER,L 1 Rp4.191.000
61-1 64511-72R00-P41 PANEL,SIDE SILL,L 1 Rp4.291.500
65 64520-73R00-000 EXTENSION,SIDE BODY OTR,L 1 Rp247.000
66 64122-79M00-000 .HOLDER,RR BUMPER RR 1 Rp21.500
67 64531-73R01-000 PANEL,RR LAMP HOUSE OUTER,L 1 Rp197.500
68 64532-73R00-000 REINF,SHUT STOPPER,L 1 Rp37.000
69 64551-73R00-000 EXTENSION,RR LAMP HOUSE OTR,L 1 Rp11.500
70 64571-73R00-000 BOX,FUEL FILLER 1 Rp90.000
71 64850-73R00-000 DOOR,FUEL FILLER 1 Rp131.500
72 DISCONTINUE
SUB: 01550B0612AN000		 BOLT (6X12) 2 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
