All New Ertiga Type 3

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 570A FRONT HOOD PANELFIG. 572A TIRE CARRIERFIG. 580A FRONT FENDER PANEL (ERTIGA:(GA,GL))FIG. 580B FRONT FENDER PANEL (ERTIGA:(GX,GX_LTD))FIG. 590A FRONT BODY PANELFIG. 590B FRONT BODY PANELFIG. 600A FLOOR PANELFIG. 640A SIDE BODY PANELFIG. 660A ROOF PANEL (GA)FIG. 660B ROOF PANEL (GL,GX,GX_LTD)FIG. 717A FRONT BUMPERFIG. 718A REAR BUMPERFIG. 721A INSTRUMENT PANEL UPPERFIG. 730A VENTILATOR (GA,GL)FIG. 730B VENTILATOR (GX,GX_LTD)FIG. 732A HEATER UNITFIG. 735A HEATER BLOWER (GA:SEE NOTE)FIG. 735B HEATER BLOWER (GL:SEE NOTE)FIG. 735C HEATER BLOWER (GX,GX_LTD:SEE NOTE)FIG. 736A HEATER DOOR (GA:SEE NOTE)FIG. 736B HEATER DOOR (GL:SEE NOTE)FIG. 736C HEATER DOOR (GX,GX_LTD:SEE NOTE)FIG. 737A EVAPORATOR UNIT (GA,GL:SEE NOTE)FIG. 737B EVAPORATOR UNIT (GX,GX_LTD:SEE NOTE)FIG. 73AA HEATER CONTROL (GA)FIG. 73AB HEATER CONTROL (GL,GX,GX_LTD)FIG. 740A CONSOLE BOX (GA)FIG. 740B CONSOLE BOX (GL)FIG. 740C CONSOLE BOX (GX,GX_LTD)FIG. 741A FLOOR CARPETFIG. 745A INTERIOR TRIMFIG. 750A COVER/CAPFIG. 755A FUEL LID OPENERFIG. 757A ROOF SIDE PADFIG. 760A ROOF LININGFIG. 772A MOLDINGFIG. 774A SPLASH GUARDFIG. 780A EMBLEMFIG. 790A WINDSHIELDFIG. 800A FRONT DOOR PANELFIG. 801A REAR DOOR PANELFIG. 805A BACK DOOR PANEL (GA)FIG. 805B BACK DOOR PANEL (GL,GX,GX_LTD)FIG. 810A FRONT DOOR REGULATORFIG. 811A REAR DOOR REGULATORFIG. 820A FRONT DOOR LOCK (GA)FIG. 820B FRONT DOOR LOCK (GL)FIG. 820C FRONT DOOR LOCK (GX,GX_LTD)FIG. 821A REAR DOOR LOCK (GA,GL)FIG. 821B REAR DOOR LOCK (GX,GX_LTD)FIG. 824A BACK DOOR LOCKFIG. 835A MIRROR/SUNVISOR (GA)FIG. 835B MIRROR/SUNVISOR (GL)FIG. 835C MIRROR/SUNVISOR (GX,GX_LTD)FIG. 841A FRONT SEAT BELTFIG. 843A 2ND SEAT BELTFIG. 844A 3RD SEAT BELTFIG. 848A FRONT LH SEAT (GA)FIG. 848B FRONT LH SEAT (GL,GX,GX_LTD)FIG. 849A FRONT RH SEAT (GA,GL)FIG. 849B FRONT RH SEAT (GX,GX_LTD)FIG. 854A 2ND RH SEAT (GA)FIG. 854B 2ND RH SEAT (GL,GX,GX_LTD)FIG. 855A 2ND LH SEATFIG. 857A 3RD RH SEATFIG. 858A 3RD LH SEATFIG. 865A FUEL TANKFIG. 893A TOOLFIG. 960A CONDENSERFIG. 968A FRONT A/C PIPING (GA)FIG. 968B FRONT A/C PIPING (GL,GX,GX_LTD)FIG. 970A REAR A/C PIPING (GL,GX,GX_LTD)FIG. 972A COOLING UNIT (GL,GX,GX_LTD)FIG. 990A COMPRESSORFIG. 990HA ACCESSORIESFIG. 722A INSTRUMENT PANEL LOWER

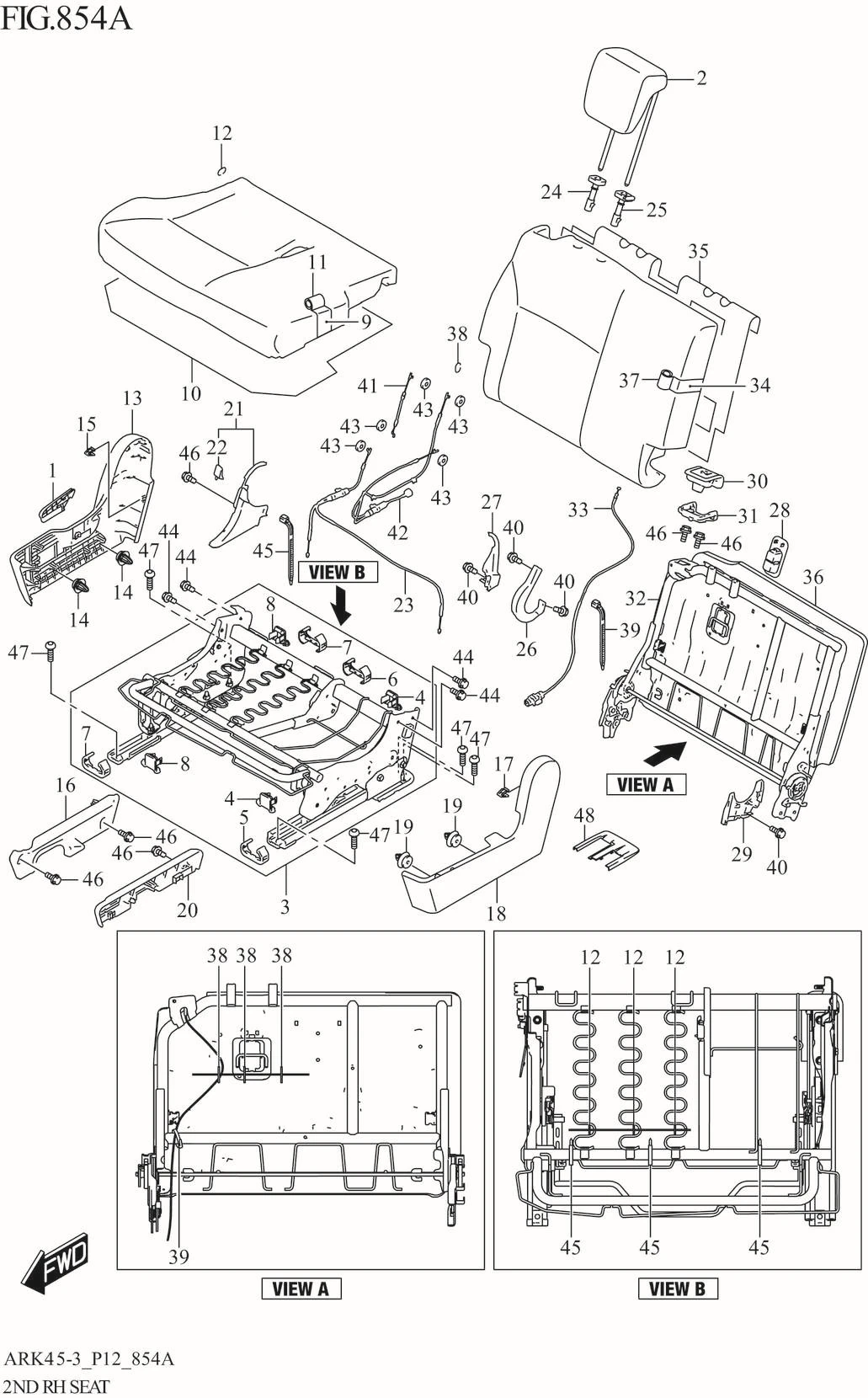

FIG. 854A 2ND RH SEAT (GA)

FIG. 854A 2ND RH SEAT (GA)
No No. Part Description Qty Price Per Pcs Remarks
1 85211-58RA0-V6N KNOB, RECLINING RH (BEIGE) 1 Rp10.000
2 86401-73R10-WCV HEADRESTRAINT ASSY,RR (BEIGE) 1 Rp407.000
3 87103-73R14-000 FRAME ASSY,RR CUSH,R 1 Rp2.965.000
4 86653-73R00-000 .CAP,RR ADJUSTER UPR 2 Rp18.000
5 86654-73R20-000 .CAP,RR ADJUSTER LOWER FR 1 Rp27.500
6 86655-73R20-000 .CAP,RR ADJUSTER LOWER RR 1 Rp27.500
7 86652-73R20-000 .CAP,RR ADJUSTER LOWER 2 Rp27.500
8 86653-73R00-000 .CAP,RR ADJUSTER UPR 2 Rp18.000
9 87160-73R10-000 PAD,RR CUSH,R 1 Rp487.000
10 87169-60M00-000
SUB: 87169B60M00N000		 SILENCER,RR CUSH,R 1 Rp50.500
11 87180-73R10-DF1 TRIM,RR CUSH,R (BEIGE) 1 Rp472.000
12 09387-19001-000 RING (OD:22.6) 3 Rp9.000
13 87221-73R00-V6N COVER,RCLNG OUTSIDE,R (BEIGE) 1 Rp112.000
14 87226-73R00-000 CLIP 2 Rp5.500
15 87227-73R00-000 CLIP 1 Rp5.500
16 87225-73R00-000 COVER,RR OTR RISER,R 1 Rp23.500
17 87227-73R00-000 CLIP 1 Rp5.500
18 87241-73R00-V6N COVER,RCLNG INSIDE,R (BEIGE) 1 Rp145.500
19 09409-10314-000 CLIP 2 Rp17.000
20 87244-73R00-000 COVER,RR INR RISER,R 1 Rp21.500
21 87270-73R00-V6N COVER,RCLNG INR LWR,R (BEIGE) 1 Rp30.500
22 87229-73R00-V6N .PROTECTOR,RR RCLNG COV,R (BEIGE) 1 Rp105.000
23 87294-73R01-000 CABLE,RR SLIDE RELEASE,R 1 Rp151.500
24 85341-58RA1-V6N GUIDE,HEADRESTRAINT (BEIGE) 1 Rp10.500
25 85840-73R10-V6N GUIDE,HEADRESTRAINT (BEIGE) 1 Rp11.000
26 87222-73R01-V6N COVER,RCLNG OUT INR R (BEIGE) 1 Rp12.000
27 87224-73R00-V6N COVER,RCLNG INR LWR,R (BEIGE) 1 Rp18.000
28 87225-73R10-V6N COVER,TETHER ANCHOR (BEIGE) 1 Rp11.000
29 87243-73R00-V6N COVER,RCLNG INS INR,R (BEIGE) 1 Rp9.500
30 87290-73R12-V6N KNOB,WALKIN RELEASE,R (BEIGE) 1 Rp88.000
31 87298-73R00-000 GUIDE,WALKIN LEVER,R 1 Rp19.000
32 87310-73R10-000 FRAME,RR BACK,R 1 Rp1.911.000
33 87342-73R01-000 CABLE,RR BACK WALKIN 1 Rp165.000
34 87360-73R10-000 PAD,RR BACK,R 1 Rp375.000
35 87369-73R00-000 SILENCER,RR BACK,R 1 Rp6.500
36 87372-73R01-000 FELT,RR BACK,R 1 Rp58.000
37 87380-73R10-DF1 TRIM,RR BACK,R (BEIGE) 1 Rp537.500
38 09387-19001-000 RING (OD:22.6) 3 Rp9.000
39 36990-25G00-000 CLAMP (L:125) 1 Rp13.000
40 03241-0510A-000 SCREW 4 Rp8.000
41 87341-73R02-000
SUB: 87341-73R01-000		 CABLE,RR RCLNG 1 Rp30.500
42 87343-73R01-000 CABLE,RR WALKIN RELEASE,R 1 Rp235.500
43 87371-73R00-000 WASHER,CABLE END 5 Rp5.500
44 09103-10472-000 BOLT,RR BACK 4 Rp33.000
45 36990-25G00-000 CLAMP (L:125) 3 Rp13.000
46 03241-0510A-000 SCREW 6 Rp8.000
47 87493-60M00-000 BOLT,RR MTG 5 Rp23.000
48 87494-73R00-R8R COVER,RR MTG (BROWN) 1 Rp20.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
