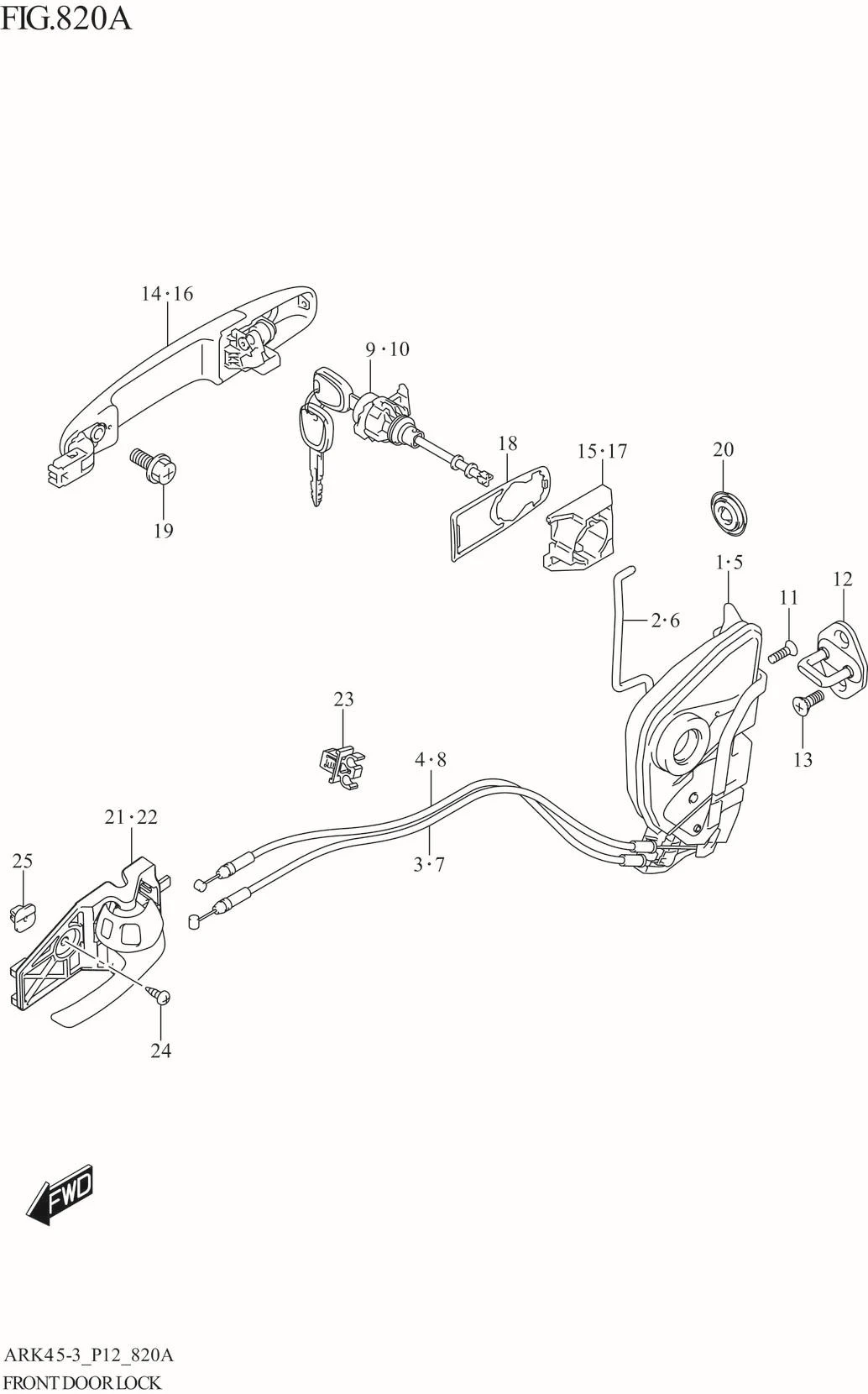

FIG. 820A FRONT DOOR LOCK (GA)

FIG. 820A FRONT DOOR LOCK (GA)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	82210-76M12-000 SUB: 82210-76M10-000	LATCH,FRONT DOOR,R	1	Rp289.500
2	82221-73R00-000	ROD,FRONT DOOR OUT HANDLE,R	1	Rp14.500
3	82223-73R00-000	CABLE,FR DR INSIDE HANDLE	1	Rp19.000
4	82224-73R00-000	CABLE,FR DR INSIDE LOCK	1	Rp21.500
5	82250-76M22-000 SUB: 82250-76M20-000	LATCH,FRONT DOOR,L	1	Rp295.500
6	82261-73R00-000	ROD,FRONT DOOR OUT HANDLE,L	1	Rp17.000
7	82223-73R00-000	CABLE,FR DR INSIDE HANDLE	1	Rp19.000
8	82224-73R00-000	CABLE,FR DR INSIDE LOCK	1	Rp21.500
9	82270-73860-000	CYLINDER SET,FR DR LATCH,R	1	Rp337.500
10	82280-73860-000	CYLINDER SET,FR DR LATCH,L	1	Rp336.000
11	09137-06032-000	SCREW (6X18)	6	Rp16.500
12	82610-67LA0-000 SUB: 82610B67LA0N000	STRIKER,DOOR LATCH	2	Rp21.500
13	09139-08025-000	SCREW (8X20)	4	Rp23.000
14	82811-73R21-000 SUB: 82811-73R20-000	HANDLE,FRONT DOOR OUT,R(NOT PAINT)	1	Rp128.000
15	82812-73R01-000 SUB: 82812-73R00-000	BRACKET,FR DR OUT HANDLE,R	1	Rp12.500
16	82821-73R21-000 SUB: 82821-73R20-000	HANDLE,FRONT DOOR OUT,L(NOT PAINT)	1	Rp128.000
17	82822-73R01-000 SUB: 82822-73R00-000	BRACKET,FR DR OUT HANDLE,L	1	Rp12.500
18	82813-73R00-000	PAD,FRONT DOOR OUT HANDLE	1	Rp6.500
19	09116-06168-000	BOLT (6X12)	4	Rp15.000
20	09250-25007-000	CAP (OD:25)	2	Rp10.500
21	83110M74L00-V6N	HANDLE,DOOR INSIDE,R (BEIGE)	1	Rp57.000
22	83130M74L00-V6N	HANDLE,DOOR INSIDE,L (BEIGE)	1	Rp57.000
23	83271M50E00-000	CLIP,DR HANDLE ROD	2	Rp6.500
24	09132-05058-000	SCREW (5X12)	2	Rp14.000
25	09148-05031-000	NUT (M5)	2	Rp18.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
