All New Ertiga Type 3

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 570A FRONT HOOD PANEL FIG. 572A TIRE CARRIER FIG. 580A FRONT FENDER PANEL (ERTIGA:(GA,GL))FIG. 580B FRONT FENDER PANEL (ERTIGA:(GX,GX_LTD))FIG. 590A FRONT BODY PANEL FIG. 590B FRONT BODY PANEL FIG. 600A FLOOR PANEL FIG. 640A SIDE BODY PANEL FIG. 660A ROOF PANEL (GA)FIG. 660B ROOF PANEL (GL,GX,GX_LTD)FIG. 717A FRONT BUMPER FIG. 718A REAR BUMPER FIG. 721A INSTRUMENT PANEL UPPER FIG. 730A VENTILATOR (GA,GL)FIG. 730B VENTILATOR (GX,GX_LTD)FIG. 732A HEATER UNIT FIG. 735A HEATER BLOWER (GA:SEE NOTE)FIG. 735B HEATER BLOWER (GL:SEE NOTE)FIG. 735C HEATER BLOWER (GX,GX_LTD:SEE NOTE)FIG. 736A HEATER DOOR (GA:SEE NOTE)FIG. 736B HEATER DOOR (GL:SEE NOTE)FIG. 736C HEATER DOOR (GX,GX_LTD:SEE NOTE)FIG. 737A EVAPORATOR UNIT (GA,GL:SEE NOTE)FIG. 737B EVAPORATOR UNIT (GX,GX_LTD:SEE NOTE)FIG. 73AA HEATER CONTROL (GA)FIG. 73AB HEATER CONTROL (GL,GX,GX_LTD)FIG. 740A CONSOLE BOX (GA)FIG. 740B CONSOLE BOX (GL)FIG. 740C CONSOLE BOX (GX,GX_LTD)FIG. 741A FLOOR CARPET FIG. 745A INTERIOR TRIM FIG. 750A COVER/CAP FIG. 755A FUEL LID OPENER FIG. 757A ROOF SIDE PAD FIG. 760A ROOF LINING FIG. 772A MOLDING FIG. 774A SPLASH GUARD FIG. 780A EMBLEM FIG. 790A WINDSHIELD FIG. 800A FRONT DOOR PANEL FIG. 801A REAR DOOR PANEL FIG. 805A BACK DOOR PANEL (GA)FIG. 805B BACK DOOR PANEL (GL,GX,GX_LTD)FIG. 810A FRONT DOOR REGULATOR FIG. 811A REAR DOOR REGULATOR FIG. 820A FRONT DOOR LOCK (GA)FIG. 820B FRONT DOOR LOCK (GL)FIG. 820C FRONT DOOR LOCK (GX,GX_LTD)FIG. 821A REAR DOOR LOCK (GA,GL)FIG. 821B REAR DOOR LOCK (GX,GX_LTD)FIG. 824A BACK DOOR LOCK FIG. 835A MIRROR/SUNVISOR (GA)FIG. 835B MIRROR/SUNVISOR (GL)FIG. 835C MIRROR/SUNVISOR (GX,GX_LTD)FIG. 841A FRONT SEAT BELT FIG. 843A 2ND SEAT BELT FIG. 844A 3RD SEAT BELT FIG. 848A FRONT LH SEAT (GA)FIG. 848B FRONT LH SEAT (GL,GX,GX_LTD)FIG. 849A FRONT RH SEAT (GA,GL)FIG. 849B FRONT RH SEAT (GX,GX_LTD)FIG. 854A 2ND RH SEAT (GA)FIG. 854B 2ND RH SEAT (GL,GX,GX_LTD)FIG. 855A 2ND LH SEAT FIG. 857A 3RD RH SEAT FIG. 858A 3RD LH SEAT FIG. 865A FUEL TANK FIG. 893A TOOL FIG. 960A CONDENSER FIG. 968A FRONT A/C PIPING (GA)FIG. 968B FRONT A/C PIPING (GL,GX,GX_LTD)FIG. 970A REAR A/C PIPING (GL,GX,GX_LTD)FIG. 972A COOLING UNIT (GL,GX,GX_LTD)FIG. 990A COMPRESSOR FIG. 990HA ACCESSORIES FIG. 722A INSTRUMENT PANEL LOWER

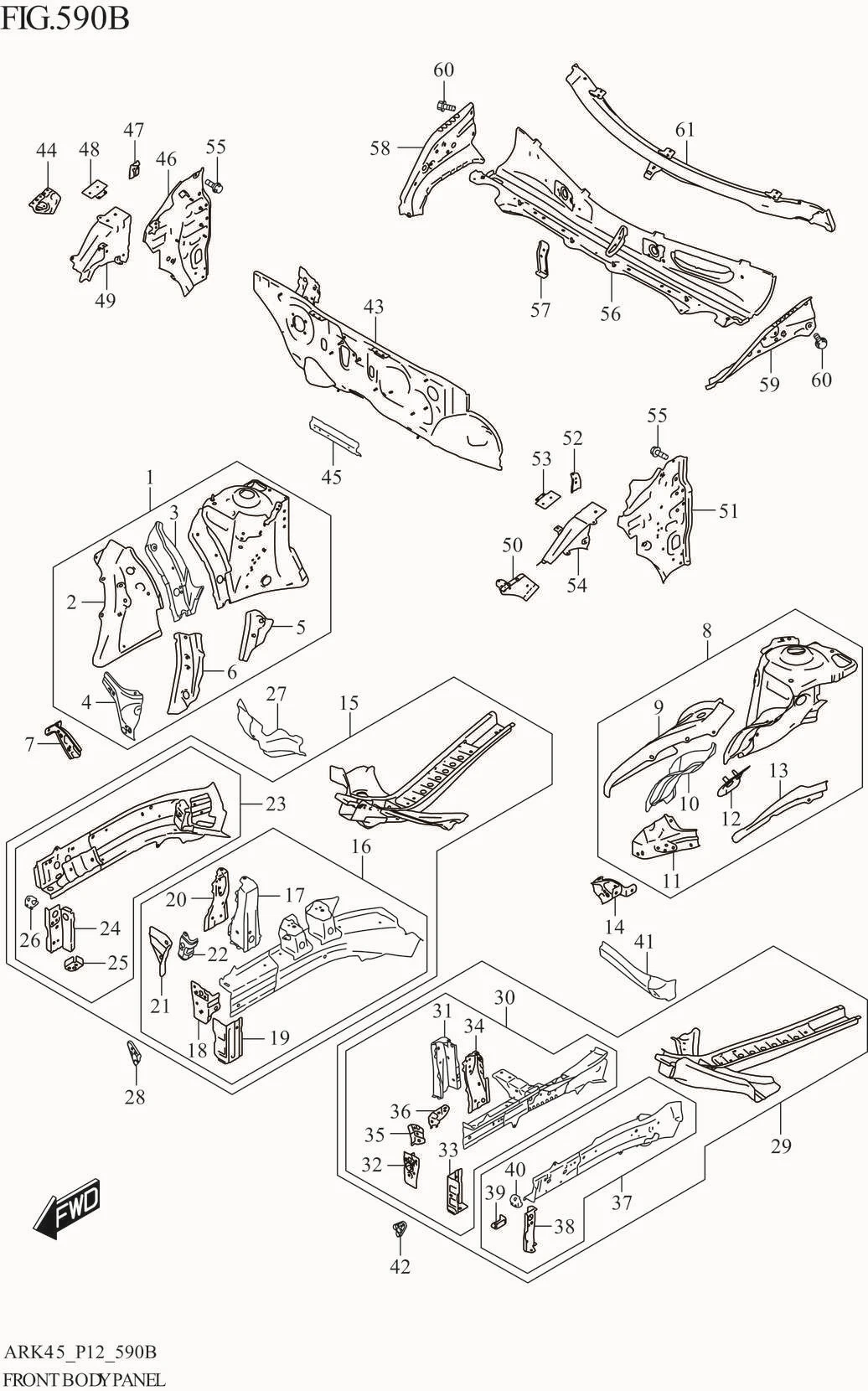

FIG. 590B FRONT BODY PANEL

FIG. 590B FRONT BODY PANEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
39	58735-73R00-000	..BRACKET,RDTR SUPPORT MBR,L	1	Rp25.000
40	58737-68P00-000	..GUSSET,APRN SIDE LWR,L	1	Rp20.000
41	58750M68P00-000	CROSSMEMBER,DASH UPR,L	1	Rp65.000
42	58771-72S00-000	BRACKET,HEAD LAMP,L	1	Rp40.500
43-1	59100-73R01-000 SUB: 59100-73R00-000	PANEL,DASH	1	Rp1.919.000
43-2	59100-73R21-000 SUB: 59100-73R20-000	PANEL,DASH	1	Rp1.893.000
44	59210-72SA0-000	BRACKET,FRONT FENDER FR,R	1	Rp274.500
45	59221-68P10-000	CROSSMEMBER,DASH UPR CTR	1	Rp97.500
46	59230-73R00-000	PANEL,DASH SIDE,R	1	Rp315.000
47	59234-73R00-000	BRACKET,FR FENDER RR,R	1	Rp10.000
48	59235-73R00-000	PATCH,FR HOOD HINGE,R	1	Rp14.500
49	59240-73R00-000	PANEL,DASH SIDE FR,R	1	Rp154.000
50	59260-72SA0-000	BRACKET,FRONT FENDER FR,L	1	Rp274.500
51	59280-73R00-000	PANEL,DASH SIDE,L	1	Rp315.000
52	59284-73R00-000	BRACKET,FR FENDER RR,L	1	Rp10.000
53	59285-73R00-000	PATCH,FR HOOD HINGE,L	1	Rp14.500
54	59290-73R00-000	PANEL,DASH SIDE FR,L	1	Rp214.000
55	01550M0612A-000	BOLT (6X12)	2	Rp5.000
56	59300-73R00-000	PANEL,COWL UPPER	1	Rp570.500
57	59313-73R00-000	BRACE,COWL UPPER	1	Rp33.000
58	59411-73R00-000	MEMBER,COWL SIDE OUTER,R	1	Rp301.500
59	59461-73R00-000	MEMBER,COWL SIDE OUTER,L	1	Rp301.500
60	01550-0820A-000 SUB: 01550B0820AN000	BOLT (8X20)	6	Rp5.500
61	59710-73R00-000	PANEL,COWL TOP	1	Rp436.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
