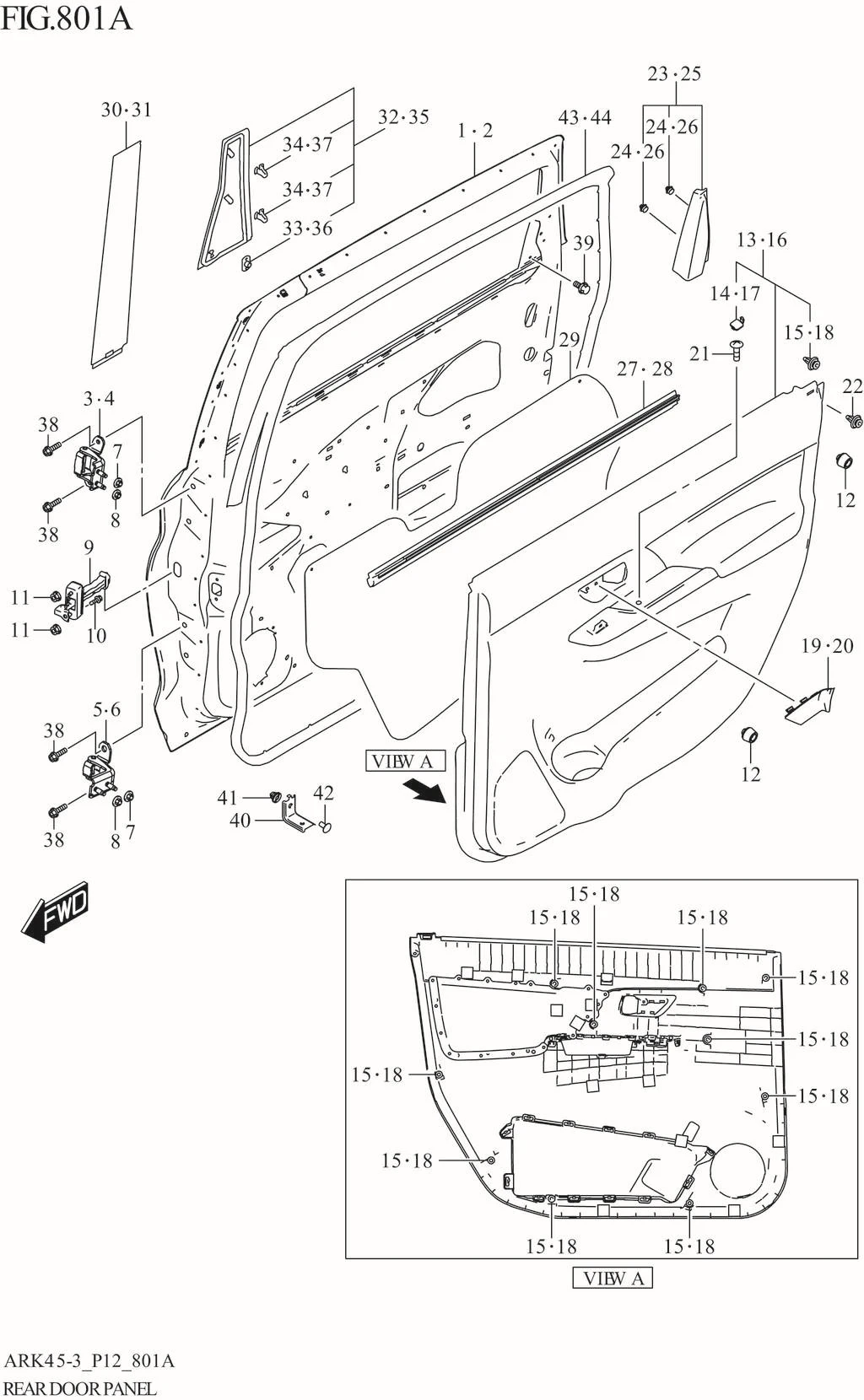

FIG. 801A REAR DOOR PANEL

FIG. 801A REAR DOOR PANEL
No No. Part Description Qty Price Per Pcs Remarks
1-1 68003-73R02-000
SUB: 68003-73R00-000		 PANEL ASSY,RR DR,R 1 Rp3.283.000
2-1 68004-73R02-000
SUB: 68004-73R00-000		 PANEL ASSY,RR DR,L 1 Rp3.283.000
3 69410M68L00-000
SUB: 69410-68LB0-000		 HINGE,RR DR UPPER,R 1 Rp73.500
4 69420M68L00-000
SUB: 69420-68LB0-000		 HINGE,RR DR UPPER,L 1 Rp73.500
5 69430M72R00-000
SUB: 69430-73R00-000		 HINGE,RR DR LWR,R 1 Rp83.000
6 69440M72R00-000
SUB: 69440-73R00-000		 HINGE,RR DR LWR,L 1 Rp83.000
7 09159-08132-000 NUT (M8) 4 Rp19.500
8 08361-2508A-000 NUT 4 Rp16.500
9 81830-73RA3-000
SUB: 81830-73RA0-000		 STOP,REAR DOOR OPEN 2 Rp85.000
10 09112-08015-000 BOLT (8X25) 2 Rp32.000
11 08316-1006A-000 NUT (6X12) 4 Rp2.000
12 82711-51K00-000 CUSHION 4 Rp39.000
13-1 83730-73R00-V6N TRIM,RR DR,R (BEIGE) 1 Rp977.000
13-2 83730-73R10-DWR TRIM,RR DR,R (BLACK) 1 Rp1.185.500
14-1 83752-80J00-V6N .CAP,DR INS PULL CASE (BEIGE) 1 Rp58.000
14-2 83752-80J00-5PK .CAP,SIDE DR INS CASE (BLACK) 1 Rp74.000
15 09409-10327-000 .CLIP 10 Rp5.000
16-1 83740-73R00-V6N TRIM,RR DR,L (BEIGE) 1 Rp977.000
16-2 83740-73R10-DWR TRIM,RR DR,L (BLACK) 1 Rp1.185.500
17-1 83752-80J00-V6N .CAP,DR INS PULL CASE (BEIGE) 1 Rp58.000
17-2 83752-80J00-5PK .CAP,SIDE DR INS CASE (BLACK) 1 Rp74.000
18 09409-10327-000 .CLIP 10 Rp5.000
19-1 83755-74L00-V6N
SUB: 83755B74L00NV6N		 CAP,INSIDE HDL BEZEL,R (BEIGE) 1 Rp86.500
19-2 83755-74L00-5PK CAP,INSIDE HDL BEZEL,R (BLACK) 1 Rp24.000
20-1 83756-74L00-V6N
SUB: 83756B74L00NV6N		 CAP,INSIDE HDL BEZEL,L (BEIGE) 1 Rp85.500
20-2 83756-74L00-5PK CAP,INSIDE HDL BEZEL,L (BLACK) 1 Rp24.000
21 09132-05058-000 SCREW (5X12) 2 Rp14.000
22-2 09409-06314-5PK CLIP (5.9X20.5,BLACK) 2 Rp3.500
22-1 09409-06314-V6N CLIP (5.9X20.5,BEIGE) 2 Rp19.500
23 83780-73R00-5PK GARNISH,RR DR INNER,R (BLACK) 1 Rp112.000
24 09409-06339-000 .CLIP,RR DR INNER GARNISH 2 Rp18.000
25 83790-73R00-5PK GARNISH,RR DR INNER,L (BLACK) 1 Rp112.000
26 09409-06339-000 .CLIP,RR DR INNER GARNISH 2 Rp18.000
27 83871-73R00-000 WEATHERSTRIP,RR DR INNER,R 1 Rp69.000
28 83881-73R00-000 WEATHERSTRIP,RR DR INNER,L 1 Rp69.000
29 83913-73R00-000 COVER,RR DR SEALING 2 Rp10.000
30-1 83931-73R00-0CB TAPE,RR DR OUTER FR,R (BLACK) 1 Rp33.500
30-2 83931-73R00-0CB TAPE,RR DR OUTER FR,R (BLACK) 1 Rp33.500
31-1 83932-73R00-0CB TAPE,RR DR OUTER FR,L (BLACK) 1 Rp33.500
31-2 83932-73R00-0CB TAPE,RR DR OUTER FR,L (BLACK) 1 Rp33.500
32 83970-73R00-000 GARNISH,RR DR RR OUTER,R 1 Rp93.500
33 09146M06003-000 .NUT 1 Rp7.500
34 09409-06324-000
SUB: 09409B06324N000		 .CLIP 2 Rp13.500
35 83980-73R00-000 GARNISH,RR DR RR OUTER,L 1 Rp93.500
36 09146M06003-000 .NUT 1 Rp7.500
37 09409-06324-000
SUB: 09409B06324N000		 .CLIP 2 Rp13.500
38 09103-08546-000 BOLT (8X24) 8 Rp26.500
39 02162-0612A-000 SCREW (6X12) 2 Rp11.000
40 83751-67P00-000 BRACKET,DR TRIM 2 Rp11.500
41 71851M70F00-000 NUT (M6) 2 Rp4.000
42 03141M0612A-000 SCREW 2 Rp4.500
43 84661-73R00-000 WEATHERSTRIP,RR DR OPNG,R 1 Rp191.000
44 84671-73R00-000 WEATHERSTRIP,RR DR OPNG,L 1 Rp191.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
