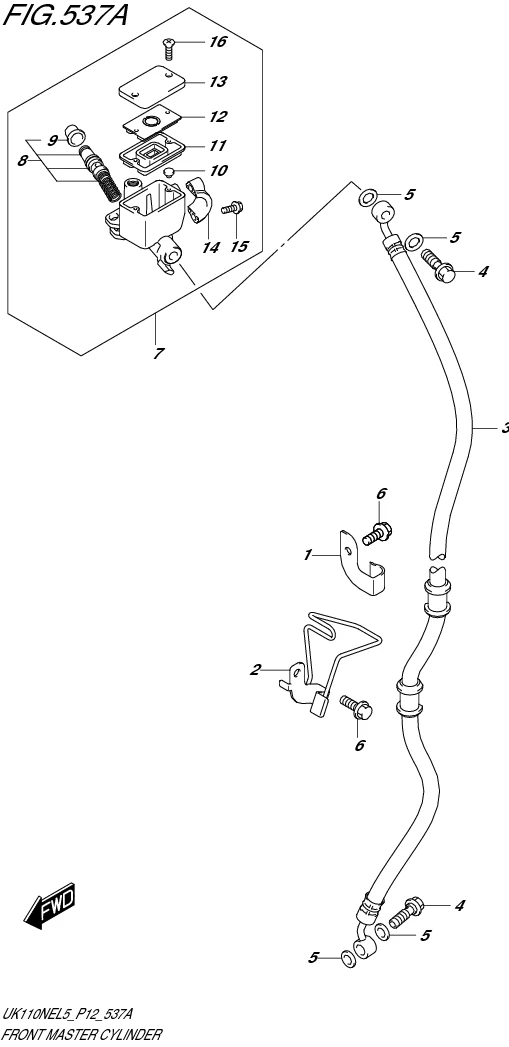

FIG. 537A FRONT MASTER CYLINDER

FIG. 537A FRONT MASTER CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1 59261-40J00-000 CLAMP, FR BRAKE HOSE UPPER 1 Rp16.500
2 59270-40J00-000 CLAMP, FR BRAKE HOSE LOWER 1 Rp8.500
3 59480-40J00-000 HOSE, FRONT BRAKE 1 Rp241.500
4 59492-09J00-000 BOLT, BRAKE FLUID 2 Rp24.500
5 59502-09J00-000 WASHER, BRAKE FLUID 4 Rp33.000
6 01547-0610A-000
SUB: 01547-0612A-000		 BOLT 2 Rp3.000
7 59600-09J00-000 CYLINDER ASSY, FRONT MASTER 1 Rp630.000
8 59600-09810-000 .PISTON & CUP SET 1 Rp109.500
9 59666-09J00-000 ..BOOT 1 Rp10.500
10 59664-09J00-000 .PROTECTOR 1 Rp10.000
11 59667-09J00-000 .DIAPHRAGM 1 Rp12.000
12 59668-09J00-000 .PLATE, DIAPHRAGM 1 Rp9.500
13 59669-09J00-000 .CAP 1 Rp24.500
14 59671-09J00-000 .HOLDER 1 Rp24.500
15 59675-09J00-000 .BOLT, HOLDER 1 Rp13.000
16 59691-09J00-000 .SCREW, CAP 2 Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
