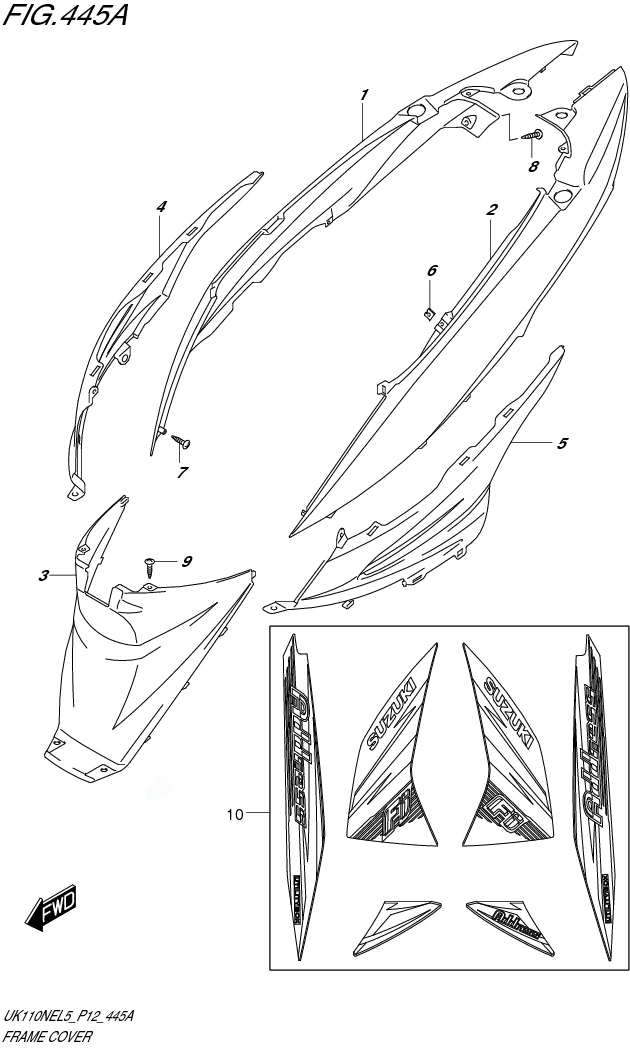

FIG. 445A FRAME COVER

FIG. 445A FRAME COVER
No No. Part Description Qty Price Per Pcs Remarks
1 47111-40J01-YVU
SUB: 47111-40J00-YVU		 COVER, FRAME RH (BLACK) 1 Rp117.500
2 47211-40J01-YVU
SUB: 47211-40J00-YVU		 COVER, FRAME LH (BLACK) 1 Rp117.500
3 47131-40J00-291 COVER, FRAME FRONT (BLACK) 1 Rp56.500
4 47121-40J00-291 COVER, FRAME LOWER RH (BLACK) 1 Rp34.500
5 47221-40J00-291 COVER, FRAME LOWER LH (BLACK) 1 Rp34.500
6 09148-04019-000
SUB: 09148-04034-000		 NUT 2 Rp6.500
7 03541-0416A-000 SCREW 2 Rp3.500
8 03541-0416A-000 SCREW 2 Rp3.500
9 03541-0416B-000 SCREW 4 Rp4.500
10-1 68000-40J00-AFJ STRIPPING SET (RED/BLACK) 1 Rp326.000
10-2 DISCONTINUE
SUB: 68000-40J00-ACL		 STRIPPING SET (GREEN/BLACK) 1 -
10-3 68000-40J00-GTB STRIPPING SET (BLUE/BLACK) 1 Rp326.000 COLOR : AFJ=PV5(RED),YVU(BLACK) : ACL=PZ5(GREEN),YVU(BLACK) : GTB=YNL(BLUE),YVU(BLACK)

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
