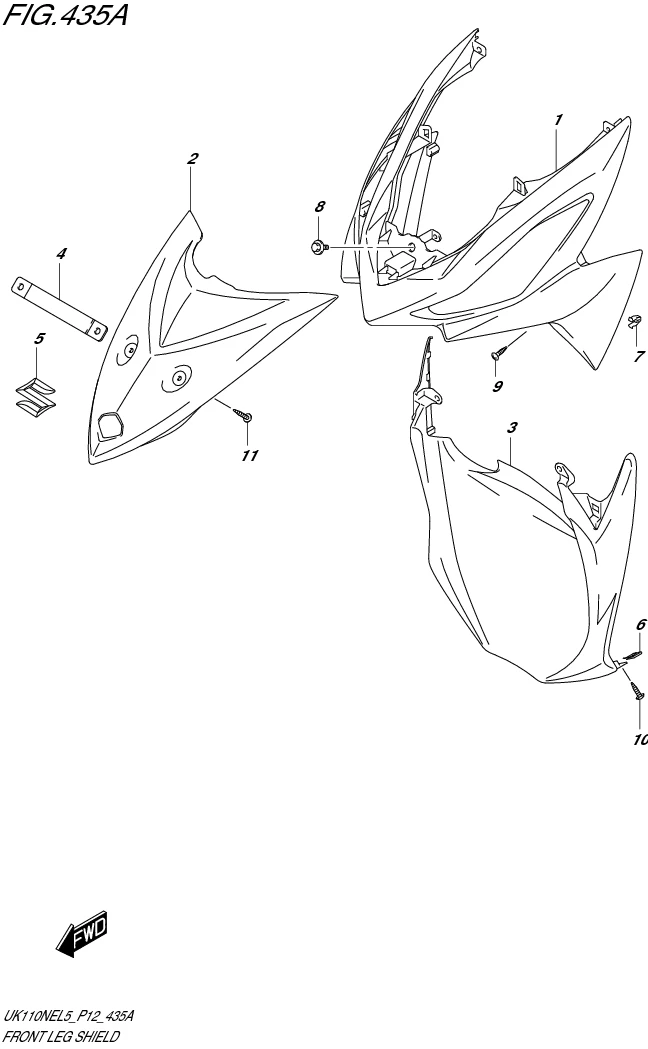

FIG. 435A FRONT LEG SHIELD

FIG. 435A FRONT LEG SHIELD
No No. Part Description Qty Price Per Pcs Remarks
1 48111-40J00-YVU SHIELD, LEG FRONT (BLACK) 1 Rp167.000
2-1 48131-40J00-PV5 SHIELD, LEG FRONT CENTER (RED) 1 Rp138.500 FOR AFJ
2-2 DISCONTINUE
SUB: 48131-40J00-PZ5		 SHIELD, LEG FRONT CENTER (GREEN) 1 - FOR ACL
2-3 48131-40J00-YNL SHIELD, LEG FRONT CENTER (BLUE) 1 Rp138.500 FOR GTB
3 48137-40J00-291 SHIELD, LEG FRONT LOWER (BLACK) 1 Rp41.000
4 48191-40J00-000 HOLDER, FRONT LICENSE 1 Rp26.000
5 68641-22J10-000 EMBLEM, "S" 1 Rp24.500
6 09148-04019-000
SUB: 09148-04034-000		 NUT 2 Rp6.500
7 09409-08326-000 CLIP 2 Rp8.000
8 09111-06102-000 BOLT (6X14.8) 1 Rp3.500
9 03541-0416A-000 SCREW 2 Rp3.500
10 03541-0416B-000 SCREW 2 Rp4.500
11 03541-0516A-000 SCREW 2 Rp3.500 COLOR : AFJ=PV5(RED),YVU(BLACK) : ACL=PZ5(GREEN),YVU(BLACK) : GTB=YNL(BLUE),YVU(BLACK)

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
