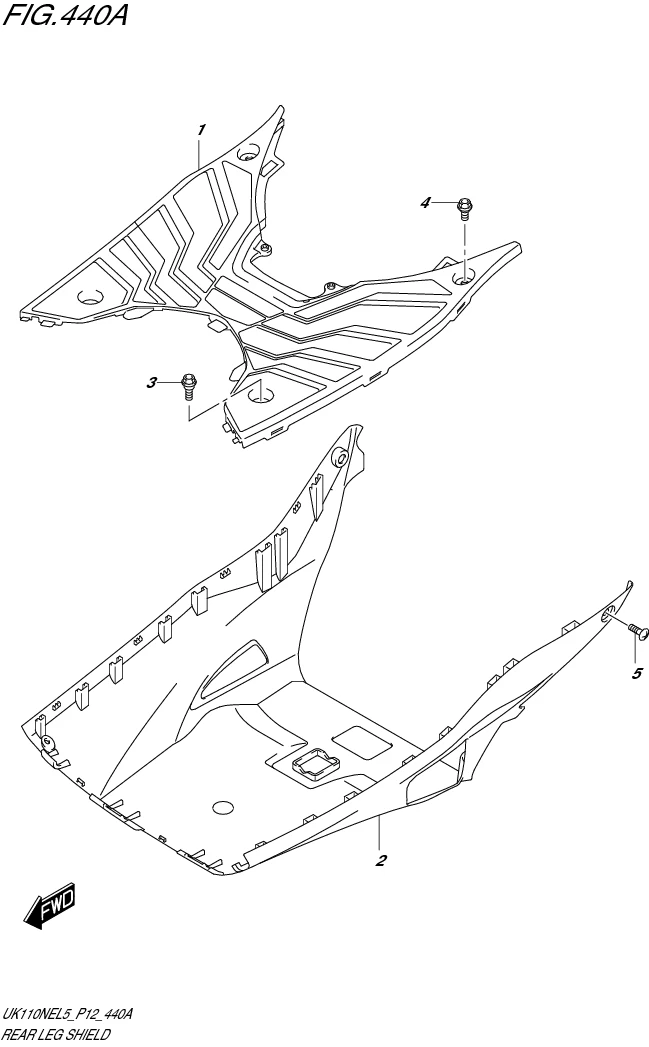

FIG. 440A REAR LEG SHIELD

FIG. 440A REAR LEG SHIELD
No No. Part Description Qty Price Per Pcs Remarks
1 48121-40J01-291
SUB: 48121-40J00-291		 FOOTBOARD, LEG SHIELD (BLACK) 1 Rp49.000
2 48138-40J04-291
SUB: 48138-40J00-291		 COVER, UNDER (BLACK) 1 Rp87.500
3 09111-06072-000 BOLT (6X17.8) 2 Rp3.500
4 09111-06102-000 BOLT (6X14.8) 2 Rp3.500
5 02142-0612A-000
SUB: 02142-0612B-000		 SCREW 2 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
