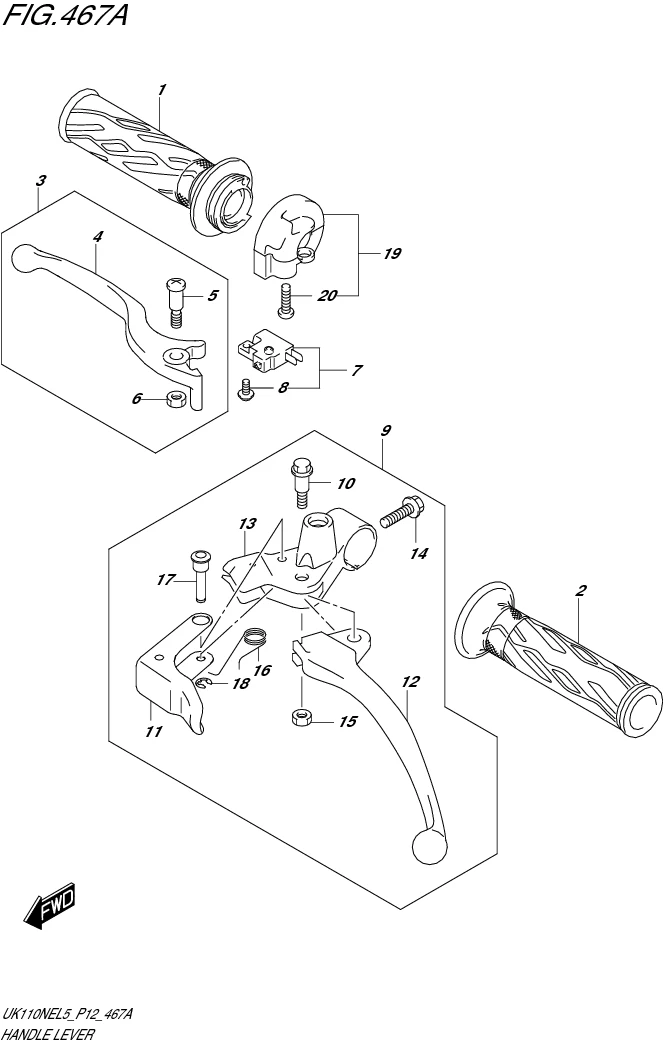

FIG. 467A HANDLE LEVER

FIG. 467A HANDLE LEVER
No No. Part Description Qty Price Per Pcs Remarks
1 57110-40J01-000
SUB: 57110-40J00-000		 GRIP, THROTTLE 1 Rp25.000
2 57211-40J01-000
SUB: 57211-40J00-000		 GRIP LH 1 Rp18.500
3 57300-09J00-000 LEVER ASSY, BRAKE 1 Rp106.000
4 57421-09J00-000 .LEVER, BRAKE 1 Rp91.000
5 57431-29C20-000 .SCREW, BRAKE LEVER PIVOT 1 Rp5.000
6 08319-2106A-000 .NUT 1 Rp5.000
7 57460-09J00-000 SWITCH ASSY, STOP 1 Rp33.500
8 DISCONTINUE
SUB: 57465-17C00-000		 .SCREW 1 -
9 57500-39JD0-000
SUB: 57500-39J20-000		 LEVER ASSY, RR BRAKE & SWITCH 1 Rp152.000
10 57431-39J00-000 .BOLT, BRAKE LEVER PIVOT 1 Rp7.000
11 57520-39J00-000 .LEVER, BRAKE LEVER STOPPER 1 Rp32.000
12 57621-39JC0-000
SUB: 57621-39J20-000		 .LEVER, REAR BRAKE 1 Rp29.500
13 57511-39JC0-000
SUB: 57511-39J20-000		 .HOLDER, BRAKE LEVER LH 1 Rp37.000
14 01547-0620B-000
SUB: 01547-0620A-000		 .BOLT 1 Rp6.500
15 08319-2105A-000 .NUT 1 Rp13.000
16 DISCONTINUE
SUB: 57523-33G50-000		 .SPRING, BRAKE LEVER STOPPER 1 -
17 57524-33G50-000 .PIN, BRAKE LEVER STOPPER 1 Rp11.000
18 08332-1103A-000 .E RING 1 Rp13.500
19 57100-40J01-000
SUB: 57100-40J00-000		 CASE ASSY, THROTTLE 1 Rp19.500
20 DISCONTINUE
SUB: 02112-0520A-000		 .SCREW 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
