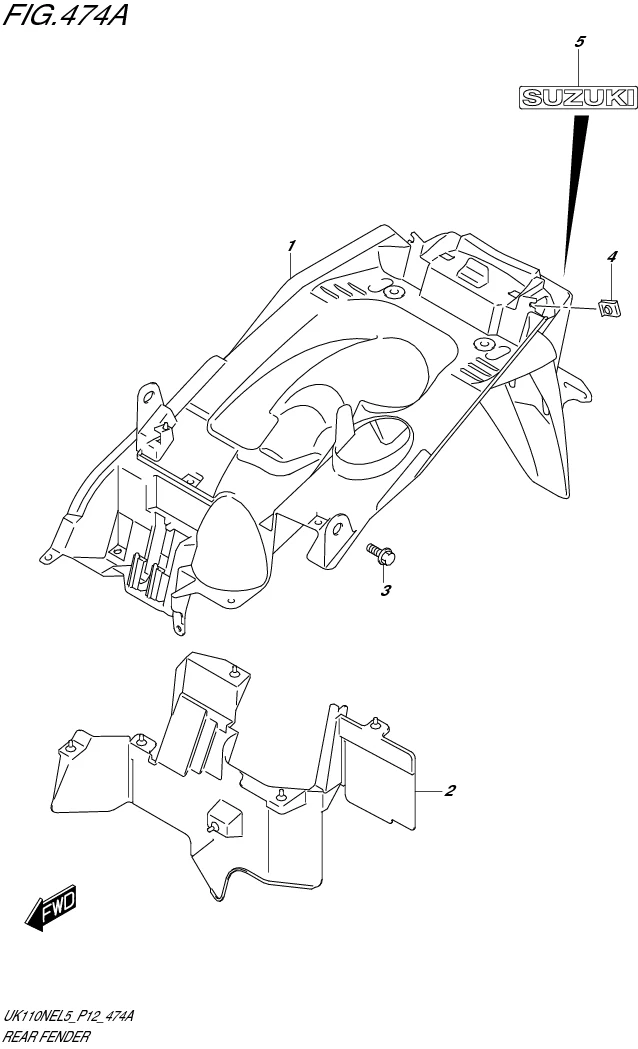

FIG. 474A REAR FENDER

FIG. 474A REAR FENDER
No No. Part Description Qty Price Per Pcs Remarks
1 63111-40J01-000
SUB: 63111-40J00-000		 FENDER, REAR 1 Rp81.000
2 63411-40J00-000 MUDGUARD, REAR FENDER 1 Rp35.500
3 09111-06102-000 BOLT (6X14.8) 4 Rp3.500
4 09148-04019-000
SUB: 09148-04034-000		 NUT 2 Rp6.500
5 68171-41H10-000 EMBLEM, SUZUKI 1 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
