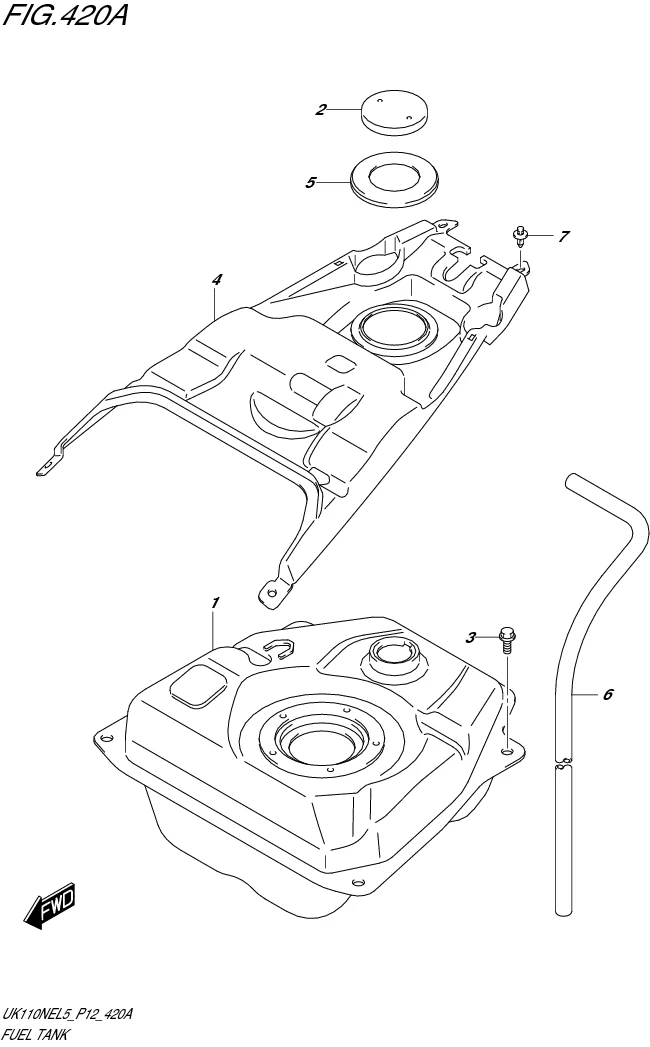

FIG. 420A FUEL TANK

FIG. 420A FUEL TANK
No No. Part Description Qty Price Per Pcs Remarks
1 44110-40J00-000 TANK, FUEL 1 Rp383.000
2-1 44210-09J00-000 CAP, FUEL TANK FILLER 1 Rp19.500 CHANDRA NUGERAH CEMERLANG
2-2 44210-09J00-000
SUB: 44210-09J10-000		 CAP, FUEL TANK FILLER 1 Rp19.500 INDTA PRATAMJAYA
3 01550-0612A-000 BOLT 4 Rp3.500
4 92212-40J03-000
SUB: 92212-40J00-000		 COVER, HELMET BOX 1 Rp32.500
5 44261-41H10-000 RUBBER, FUEL TANK INLET 1 Rp5.500
6 09352-70120-820
SUB: 09352-70L05-820		 HOSE, FUEL DRAIN (7X11X820) 1 Rp18.000
7 09409-06314-5PK CLIP (BLACK) 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
