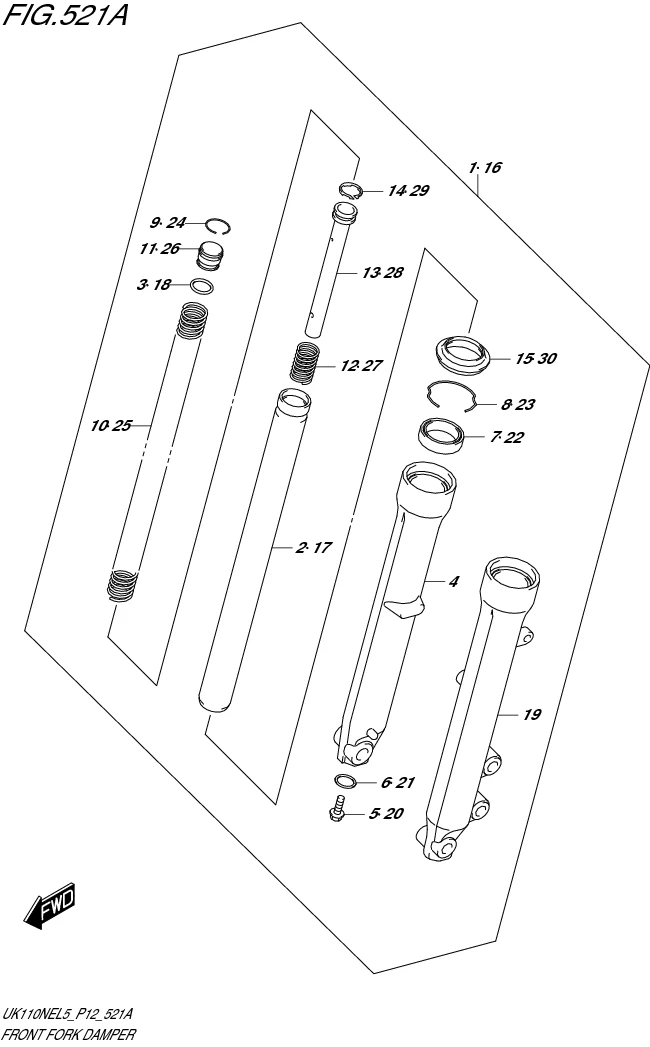

FIG. 521A FRONT FORK DAMPER

FIG. 521A FRONT FORK DAMPER
No No. Part Description Qty Price Per Pcs Remarks
1 51103-40J00-291 DAMPER ASSY, FRONT FORK RH 1 Rp402.500
2 51110-40J00-000 .PIPE, FORK 1 Rp148.000
3 51117-09G00-000 .O RING 1 Rp3.500
4 51131-40J00-291 .TUBE, OUTER RH 1 Rp164.000
5 51147-06F10-000 .BOLT 1 Rp6.500
6 51148-31030-000 .GASKET 1 Rp4.000
7 51153-09G00-000 .OIL SEAL 1 Rp16.500
8 51156-09G00-000 .SNAP RING 1 Rp4.500
9 51169-09G00-000 .RING, STOPPER 1 Rp4.000
10 51171-40J00-000 .SPRING, FRONT 1 Rp22.500
11 51175-09J10-000 .CAP 1 Rp11.000
12 51177-47E00-000 .SPRING, REBOUND 1 Rp5.000
13 51194-40J00-000 .PIPE, SEAT 1 Rp24.000
14 51196-16H00-000 .RING, PISTON 1 Rp7.000
15 51571-09G00-000 .SEAL, DUST 1 Rp8.000
16 51104-40J00-291 DAMPER ASSY, FRONT FORK LH 1 Rp402.500
17 51110-40J00-000 .PIPE, FORK 1 Rp148.000
18 51117-09G00-000 .O RING 1 Rp3.500
19 51141-40J00-291 .TUBE, OUTER LH 1 Rp164.000
20 51147-06F10-000 .BOLT 1 Rp6.500
21 51148-31030-000 .GASKET 1 Rp4.000
22 51153-09G00-000 .OIL SEAL 1 Rp16.500
23 51156-09G00-000 .SNAP RING 1 Rp4.500
24 51169-09G00-000 .RING, STOPPER 1 Rp4.000
25 51171-40J00-000 .SPRING, FRONT 1 Rp22.500
26 51175-09J10-000 .CAP 1 Rp11.000
27 51177-47E00-000 .SPRING, REBOUND 1 Rp5.000
28 51194-40J00-000 .PIPE, SEAT 1 Rp24.000
29 51196-16H00-000 .RING, PISTON 1 Rp7.000
30 51571-09G00-000 .SEAL, DUST 1 Rp8.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
