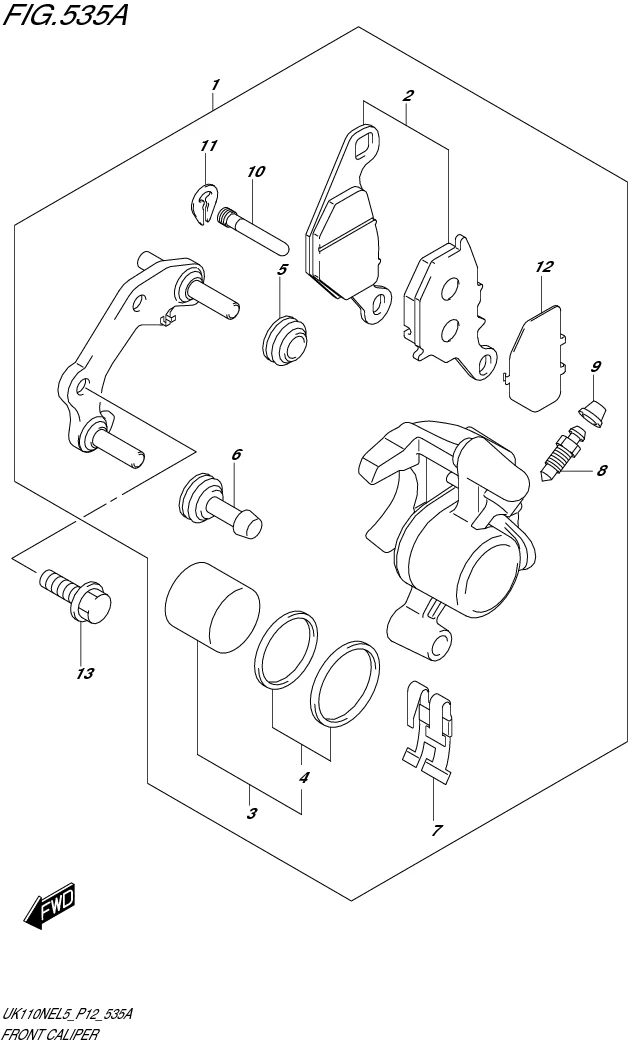

FIG. 535A FRONT CALIPER

FIG. 535A FRONT CALIPER
No No. Part Description Qty Price Per Pcs Remarks
1 59300-09J11-000
SUB: 59300-09J10-000		 CALIPER ASSY, FRONT 1 Rp625.500
2 59101-09810-000 .PAD SET 1 Rp112.000
3 59301-09810-000 .PISTON SET 1 Rp143.500
4 59300-10810-000 ..SEAL SET 1 Rp65.000
5 59312-09J00-000 .BOOT 1 Rp10.500
6 59313-09J00-000 .BUSH 1 Rp10.500
7 59315-09J00-000 .SPRING 1 Rp18.000
8 59321-09J00-000 .BLEEDER 1 Rp14.500
9 59322-09J00-000 .CAP 1 Rp16.500
10 59335-09J01-000
SUB: 59335-09J00-000		 .PIN 1 Rp20.000
11 59336-09J00-000 .RING 1 Rp5.500
12 59371-09J00-000 .SHIM, PAD 1 Rp18.500
13 01550-0825A-000 BOLT 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
