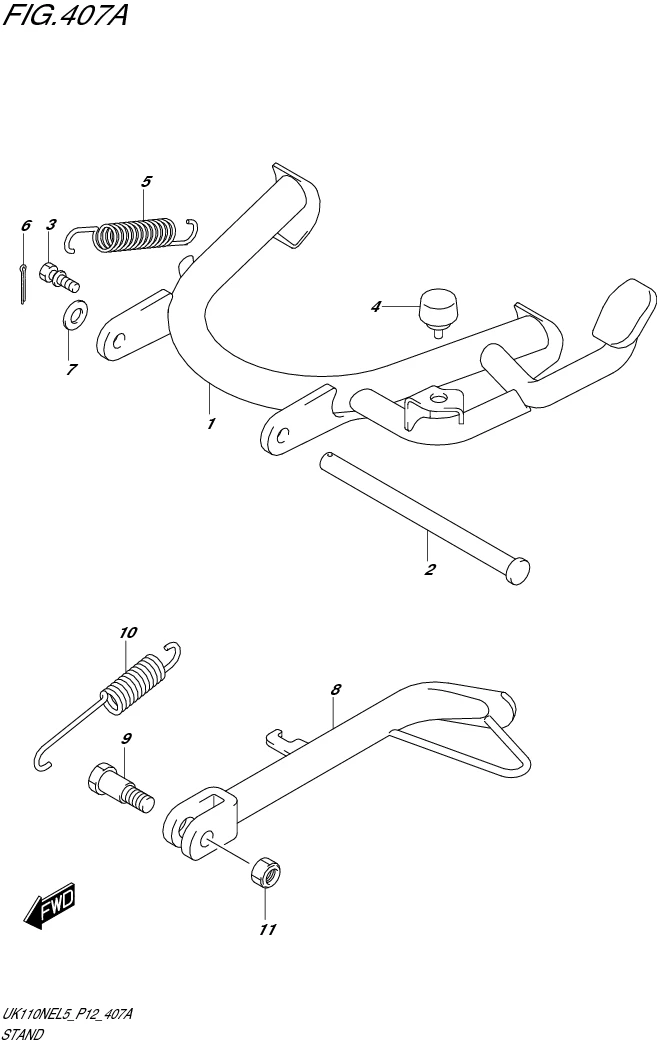

FIG. 407A STAND

FIG. 407A STAND
No No. Part Description Qty Price Per Pcs Remarks
1 42100-40J01-000
SUB: 42100-40J00-000		 STAND, CENTER 1 Rp84.500
2 42211-39J00-000 SHAFT, CENTER STAND 1 Rp12.500
3 42251-46G10-000 HOOK, CENTER STAND SPRING 1 Rp10.000
4 42272-09J00-000 CUSHION, CENTER STAND 1 Rp6.000
5 09443-17026-000 SPRING 1 Rp9.500
6 04111-3020A-000 PIN 1 Rp2.500
7 08322-0110B-000
SUB: 08322-0110A-000		 WASHER 1 Rp4.500
8 42310-40J10-000 STAND, PROP 1 Rp35.000
9 42341-40J00-000 BOLT, PROP STAND 1 Rp11.500
10 09443-14077-000 SPRING 1 Rp6.000
11 08319-3110A-000 NUT 1 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
