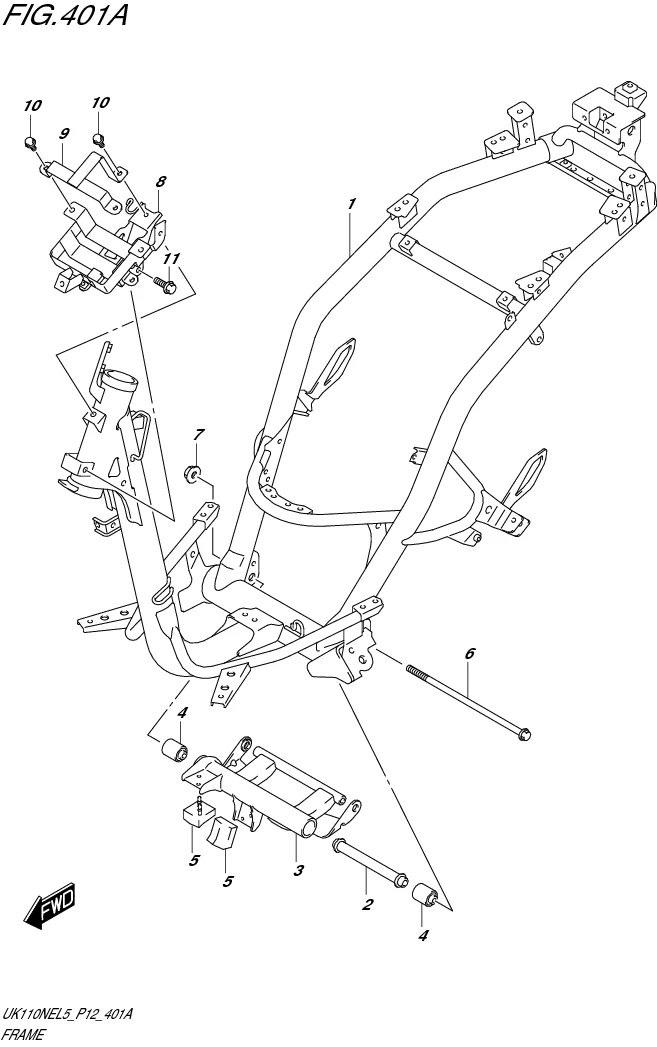

FIG. 401A FRAME

FIG. 401A FRAME
No No. Part Description Qty Price Per Pcs Remarks
1 41100-40J00-000 FRAME 1 Rp2.334.500
2 41170-09J20-000 SPACER, CRANKCASE BRKT 1 Rp17.500
3 41180-40J00-000 BRACKET, CRANKCASE 1 Rp157.000
4 41184-49K00-000
SUB: 41184-40J00-000		 BUSH, CRANKCASE BRKT 2 Rp42.000
5 41185-09J10-000
SUB: 41185-09J00-000		 CUSHION, SWING STOP 2 Rp11.500
6 09103-10449-000 BOLT (10X260) 1 Rp39.000
7 08319-3110A-000 NUT 1 Rp4.500
8 41540-40J00-000 HOLDER, BATTERY 1 Rp47.000
9 41560-40J00-000 BAND, BATTERY HOLDER 1 Rp15.000
10 01550-0612A-000 BOLT 3 Rp3.500
11 01550-0850A-000 BOLT 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
