V-Storm 650

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 GASKET SETFIG.2 CYLINDER HEAD (FRONT) FIG.3 CYLINDER HEAD (REAR) FIG.4 CYLINDER FIG.5 CRANKCASE FIG.6 CRANKCASE COVER FIG.7 CRANKSHAFT FIG.8 STARTER CLUTCH FIG.9 CAMSHAFT/VALVE FIG.10 CAM CHAIN FIG.11 THROTTLE BODY FIG.12 AIR CLEANER FIG.13 MUFFLER FIG.14 OIL PUMP FIG.15 FUEL PUMP FIG.16 OIL COOLER FIG.17 WATER PUMP FIG.18 RADIATOR FIG.19 RADIATOR HOSE FIG.20 CLUTCH FIG.21 TRANSMISSION FIG.22 GEAR SHIFTING

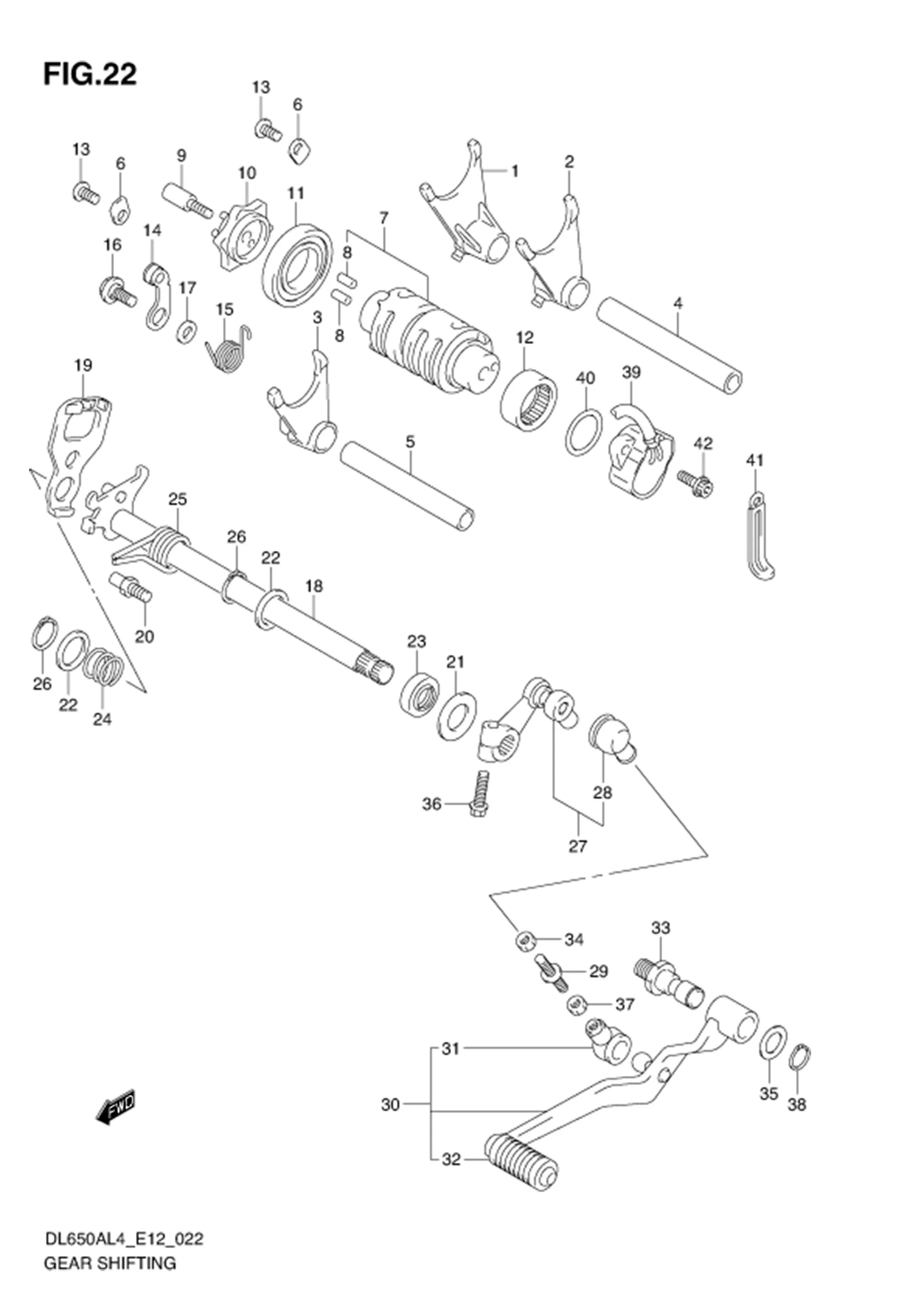

FIG.22 GEAR SHIFTING

FIG.22 GEAR SHIFTING
No No. Part Description Qty Price Per Pcs Remarks
1 25211-42E20-000 FORK, GEAR SHIFT NO.1 1 Rp494.000
2 25221-42E20-000 FORK, GEAR SHIFT NO.2 1 Rp494.000
3 25231-42E20-000 FORK, GEAR SHIFT NO.3 1 Rp494.000
4 25411-26D01-000 SHAFT, GEAR SHIFT FORK 1 Rp132.500
5 25411-44B00-000 SHAFT, GEAR SHIFT FORK 1 Rp163.500
6 24741-20A10-000
SUB: 24741-21A00-000		 RETAINER, SHIFT CAM BEARING 2 Rp3.500
7 DISCONTINUE
SUB: 25310-19F00-000		 CAM, GEAR SHIFT 1 -
8 04221-04089-000 ?PIN 2 Rp3.500
9 DISCONTINUE
SUB: 25312-42F01-000		 STOPPER, GEAR SHIFT CAM 1 -
10 25381-19F20-000 PLATE, GEAR SHIFT CAM 1 Rp295.000
11 DISCONTINUE
SUB: 09262-25006-000		 BEARING (25X47X8) 1 -
12 DISCONTINUE
SUB: 09263-25018-000		 BEARING (25X32X12) 1 -
13 02112-0612A-000 SCREW 2 Rp3.500
14 25350-35F00-000 STOPPER, SHIFT CAM 1 Rp191.500
15 25355-35F01-000 SPRING 1 Rp29.500
16 09111-06041-000 BOLT (6X14.3) 1 Rp4.000
17 08211-06141-000 WASHER 1 Rp9.500
18 25510-19F10-000 SHAFT, GEAR SHIFT 1 Rp596.000
19 25512-06G10-000 PLATE, GEAR SHIFT CAM DRIVE 1 Rp196.000
20 25671-01030-000
SUB: 25671-01011-000		 STOPPER, GEAR SHIFT ARM 1 Rp4.500
21 09160-14016-000 WASHER (14X29X0.8) 1 Rp12.000
22 09181-14167-000 SHIM (14X22X1) 2 Rp13.000
23 09283M14005-000
SUB: 09283-14005-000		 OIL SEAL (14X22X7.3) 1 Rp9.000
24 09440-17009-000 SPRING 1 Rp13.000
25 09444-20007-000
SUB: 09444-20001-000		 SPRING 1 Rp4.500
26 08331-3114A-000 CIRCLIP 3 Rp12.500
27 25520-27G00-000 ARM, GEAR SHIFT LINK 1 Rp293.500
28 25526-47000-000 ?COVER, DUST 1 Rp12.500
29 25525-27G00-000 ROD, GEAR SHIFT 1 Rp64.500
30 25600-11J00-000 LEVER ASSY, GEAR SHIFT 1 Rp531.000
31 25526-47000-000 ?COVER, DUST 1 Rp12.500
32 25652-16H11-000
SUB: 25652-20C00-000		 ?RUBBER, GEAR SHIFT PEDAL 1 Rp3.500
33 25617-03F10-000 SHAFT, GEAR SHIFT LEVER 1 Rp85.000
34 09140-06025-000 NUT 1 Rp7.000
35 09160-12011-000 WASHER (12.5X20X1) 1 Rp10.500
36 01547-0620B-000
SUB: 01547-0620A-000		 BOLT 1 Rp6.500
37 08310-00067-000 NUT 1 Rp13.000
38 08331-3112A-000 CIRCLIP 1 Rp13.000
39 37730-44H01-000 SENSOR ASSY, GEAR POSITION 1 Rp692.000
40 09280-26005-000 O RING (D:2.4,ID:26.2) 1 Rp3.000
41 DISCONTINUE
SUB: 09404-08419-000		 CLAMP (L:80) 1 -
42 09106-05023-000 BOLT (5X16) 2 Rp21.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
