V-Storm 650

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 GASKET SETFIG.2 CYLINDER HEAD (FRONT) FIG.3 CYLINDER HEAD (REAR) FIG.4 CYLINDER FIG.5 CRANKCASE FIG.6 CRANKCASE COVER FIG.7 CRANKSHAFT FIG.8 STARTER CLUTCH FIG.9 CAMSHAFT/VALVE FIG.10 CAM CHAIN FIG.11 THROTTLE BODY FIG.12 AIR CLEANER FIG.13 MUFFLER FIG.14 OIL PUMP FIG.15 FUEL PUMP FIG.16 OIL COOLER FIG.17 WATER PUMP FIG.18 RADIATOR FIG.19 RADIATOR HOSE FIG.20 CLUTCH FIG.21 TRANSMISSION FIG.22 GEAR SHIFTING

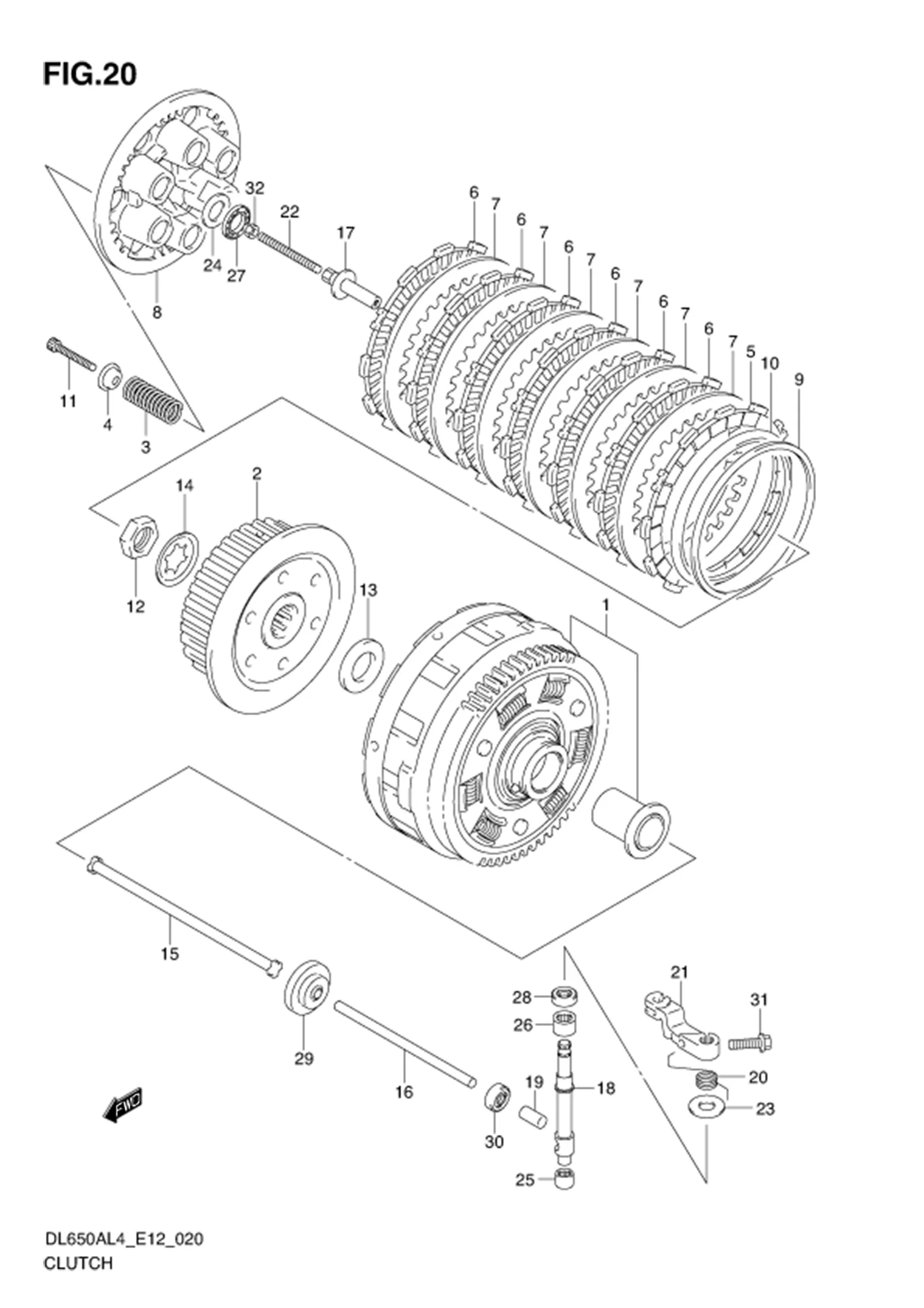

FIG.20 CLUTCH

FIG.20 CLUTCH
No No. Part Description Qty Price Per Pcs Remarks
1 21200-44860-000 GEAR ASSY, PRIMARY DRIVEN (NT:71) 1 Rp2.458.500
2 21411-44101-000 HUB, CLUTCH SLEEVE 1 Rp458.000
3 21413-17G10-000 SPRING, CLUTCH 6 Rp45.500
4 21414-29F00-000 WASHER, CLUTCH SPRING 6 Rp44.000
5 21442-29F10-000 PLATE, CLUTCH DRIVE NO.2 (T:3.0) 1 Rp177.000
6 21441-29F30-000 PLATE, CLUTCH DRIVE (T:3.0) 6 Rp177.000
7 21451-28C31-000 PLATE, CLUTCH DRIVEN (T:1.6) 6 Rp93.000
8 21462-14301-000 DISC, CLUTCH PRESSURE 1 Rp498.500
9 21471-17G00-000 SEAT, WAVE WASHER 1 Rp66.000
10 21472-17G00-000 WASHER, CLUTCH PLATE WAVE 1 Rp126.500
11 21482-41G10-000 BOLT, CLUTCH SPRING 6 Rp24.500
12 09140-20001-000 NUT 1 Rp18.500
13 09160-20067-000 WASHER (20X36X3) 1 Rp54.500
14 09167-20009-000
SUB: 09167-20006-000		 LOCK WASHER 1 Rp15.500
15 DISCONTINUE
SUB: 23110-44111-000		 ROD, CLUTCH PUSH RH 1 -
16 DISCONTINUE
SUB: 23111-15501-000		 ROD, CLUTCH PUSH LH 1 -
17 23121-44H00-000 PIECE, CLUTCH PUSH 1 Rp263.500
18 23122-44H00-000 CAMSHAFT, CLUTCH RELEASE 1 Rp324.000
19 23123-41G00-000 CAP, CLUTCH PUSH ROD 1 Rp75.500
20 23125-11J00-000 SPRING, CLUTCH RELEASE RETURN 1 Rp24.500
21 23271-44H10-000 ARM, CLUTCH RELEASE 1 Rp450.500
22 09134-06015-000 SCREW (6X73) 1 Rp48.500
23 09160-10020-000 WASHER (10.5X24X1) 1 Rp13.500
24 09160-15045-000 WASHER (15.5X28X1) 1 Rp23.500
25 09263-10014-000 BEARING (10X14X10) 1 Rp91.000
26 09263-12027-000 BEARING (12X18X12) 1 Rp46.500
27 09263-15003-000 BEARING (15X28X2) 1 Rp59.500
28 09283-10013-000
SUB: 09282-10012-000		 OIL SEAL (10X20X6) 1 Rp19.500
29 09283-06008-000 OIL SEAL (6X34X10.5) 1 Rp112.500
30 09285-10008-000
SUB: 09285-10004-000		 OIL SEAL (10X17X5) 1 Rp9.500
31 01547-0620B-000
SUB: 01547-0620A-000		 BOLT 1 Rp6.500
32 08310-0006A-000 NUT 1 Rp2.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
