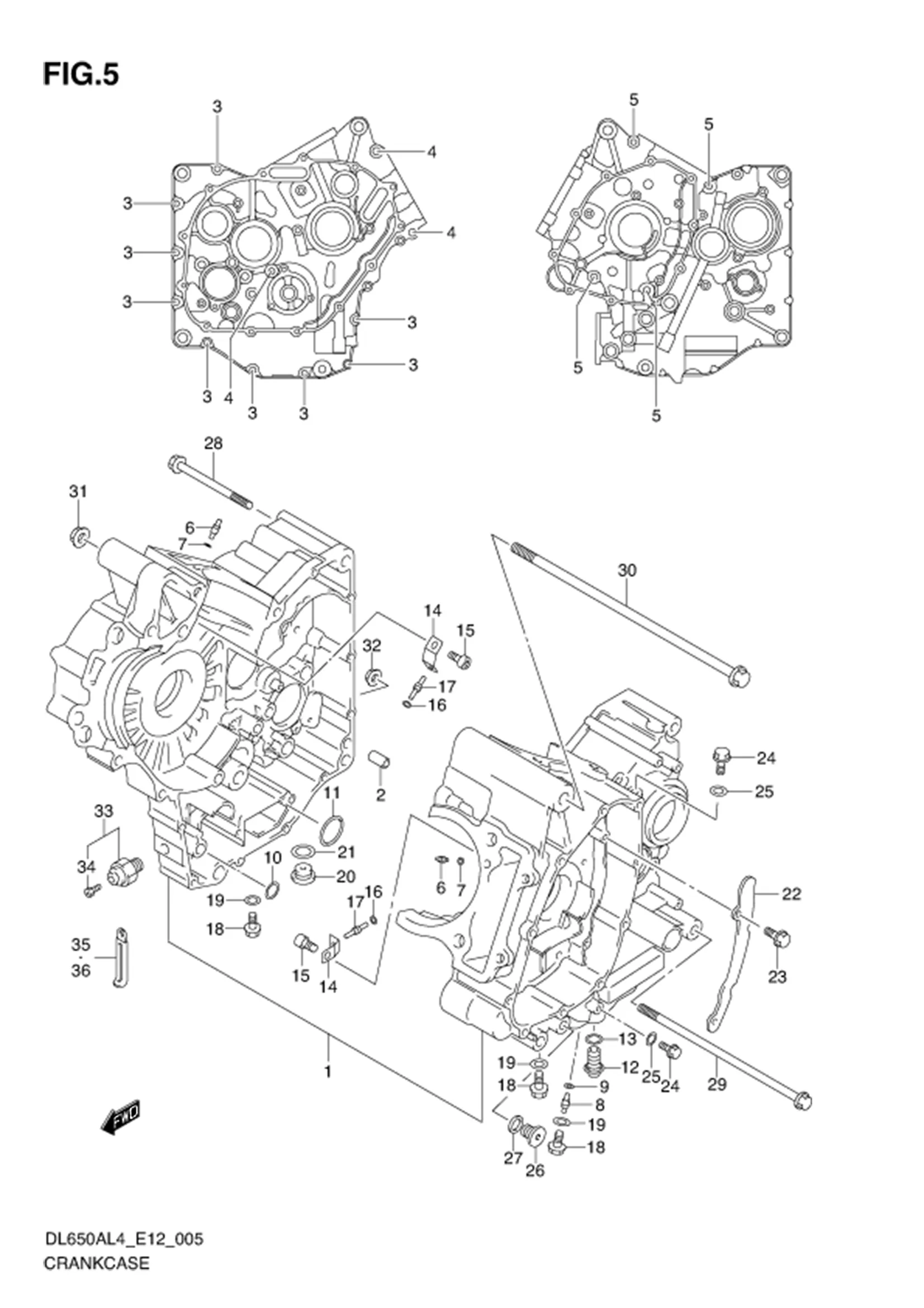

FIG.5 CRANKCASE

FIG.5 CRANKCASE
No No. Part Description Qty Price Per Pcs Remarks
1 11301-27850-000 CRANKCASE SET 1 Rp15.676.000
2 09206-11007-000 ?PIN (8.4X11X20) 2 Rp16.000
3 01547-0650A-000 ?BOLT 9 Rp7.000
4 07120-0855A-000 ?BOLT 3 Rp27.000
5 07120-0880A-000 ?BOLT 4 Rp30.500
6 09493-28010-000 JET AIR(14) 2 Rp90.500
7 09280-04004-000 O RING (D:1.2,ID:4) 2 Rp3.500
8 09493-36004-000 JET, OIL GALY 1 Rp90.500
9 09280-04004-000 O RING (D:1.2,ID:4) 1 Rp3.500
10 09280-12009-000 O RING (D:1.9,ID:12.6) 1 Rp17.500
11 09280-15007-000 O RING (D:2.4,ID:15.8) 1 Rp9.500
12 09247-12011-000 PLUG (12X20) 1 Rp30.000 OIL DRAIN
13 09168-12002-000 GASKET (12.1X16.2X3.7) 1 Rp10.000
14 16438-19F00-000 PLATE, PISTON COOLING JET 2 Rp21.500
15 09106-06075-000 BOLT (6X12) 2 Rp15.000
16 09280-04004-000 O RING (D:1.2,ID:4) 2 Rp3.500
17 DISCONTINUE
SUB: 09493-26007-000		 JET 2 -
18 01550-0812A-000 BOLT 3 Rp3.500
19 09168-08016-000 GASKET (8.2X14X1) 3 Rp25.000
20 09248-16012-000 PLUG (16X8) 1 Rp31.500
21 09168-16002-000 GASKET (16X22X2) 1 Rp13.000
22 11323-19F00-000 PLATE, OIL SEPARATOR 1 Rp24.500
23 01547-0610A-000
SUB: 01547-0612A-000		 BOLT 2 Rp3.000
24 01547-0610A-000 BOLT 2 Rp3.000
25 09168-06023-000 GASKET (5.8X13X1.2) 2 Rp13.500
26 09247-12006-000 PLUG (12X10) 1 Rp20.000
27 09168-12017-000 GASKET (12X17X1) 1 Rp13.000
28 09103-10205-000 BOLT (10X225) 1 Rp107.000
29 09103-10347-000 BOLT (10X275) 1 Rp97.500
30 09103-12054-000 BOLT (12X310) 1 Rp142.000
31 09159-12054-000 NUT 1 Rp67.000
32 08319-3110A-000 NUT 1 Rp4.500
33 37820-33D10-000 SWITCH ASSY, OIL PRESSURE 1 Rp216.000
34 37822-33D00-000 ?BOLT, OIL PRESSURE SWITCH 1 Rp26.500
35 09404-06429-000 CLAMP (L:45) 1 Rp15.000
36 DISCONTINUE
SUB: 09404-06433-000		 CLAMP (L:80) 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
